Short rail for mounting solar modules on trapezoidal sheet metal roofs. Higher rail for the installation of optimisers and higher rear ventilation. Includes thread-forming screws with 6x25 mm sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2

Short rail for mounting solar modules on trapezoidal sheet metal roofs, incl. 4 thread-forming tapping screw with sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, Stainless Steel A2

Short rail for mounting solar modules on trapezoidal sheet metal roofs, incl. 4 thread-forming tapping screw with sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, Stainless Steel A2

Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) and long bracket. For rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2

Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) and 30 mm adjusment on the bracket. Total hight adjustment: 120.5 mm - 165.1 mm. For rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2

Dual, height-adjustable Roof Fastener to fasten K2 system components to tile roofs. Bracket with slotted hole for mounting and adjusting the height of the SingleRail. For various battens by means height of bracket infinitely adjustable on baseplate to suit. Including T-Bolt and Locking nut for SingleRail assembly. Material: Stainless steel

Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) for rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2

To fasten K2 system components to tile roofs. Slotted bore hole bracket for installation and height adjustability of the SingleRail. Including T-Bolt and Locking nut for SingleRail assembly. Only to be used in combination with a sheet metal roof tile. Material: Aluminium EN AW-6063 T66

Roof Hook for the fastening of K2 system components exclusively to tile roofs with flat roof tiles, in accordance with BS EN 490. With pre-assembled K2 Climber 36/50 and Allen bolt for K2 SingleRail mounting. Material: Stainless steel (1.4301)

Roof hooks for flat tiles. Bracket with long hole for direct mounting and height adjustment of the SingleRail. Including T-bolt M8x25 (stainless steel A2) and locking nut M8 (stainless steel A2). Material: stainless steel

Special roof hook version for metal-tile-roof plate with 3 height adjustments in the base plate and 30mm adjustability in the bracket. Usable without roof holes. Material: aluminium EN AW-6063 T66

The SingleBoard allows you to add an additional roof hook of SingleHook 1.1 in between two rafters. It also allows you to move existing Roof Hook individually. This can be the case in roof edge areas or with obstacles. Material: Aluminium EN AW-6063 T66

Bracket of the SingleHook 1.1 roof hook incl. screws and nuts. To be used with the K2 SingleBoard (2002935). Material: Aluminium EN AW-6063 T66 and stainless steel A2

Bracket of the SingleHook 4S incl. Climber and allen bolt. To be used with the K2 SingleBoard 3S/4S (2001972). Material: Aluminium EN AW-6063 T66 and stainless steel A2

The SingleBoard 3S/4S allows you to add an additional roof hook of SingleHooks in between two rafters. It also allows you to move existing Roof Hook individually. This can be the case in roof edge areas or with obstacles. Material: Aluminium EN AW-6063 T66

To ensure proper waterproofing of the SingleHook FLA (2004416) roof hook designed for use with clay brick roofs with flat tile roofing, the use of our metal covers with aluminium 3.0205 (EN-AW-1200) butyl strips is required. Two metal covers measuring 300mm x 260mm are required per roof hook to ensure adequate watertightness. Colour: Red.

The K2 SingleHook FlatTile is perfect for fastening the K2 system components on flat tile roofs. The roof hook has a slotted hole for SingleRail mounting. The K2 SingleRail mounting rail can be fixed to the SingleHook FlatTile with a T-bolt M8x20 (1002387) and a flanged nut M8 (2002744). Two metal roof plates (2004282 or 2004440) are required for each roof hook. With a total height of approx. 144 mm and an bracket of 75x4 mm, this roof hook is a perfect solution to securely and efficiently fasten the K2 system components. The roof hook is made of Magnelis 1.0242 (S250GD+ZM310), so you also get a durable and high-quality fastening.

Aluminium roof fastener with SingleRail connection for bitumen roofs. Can be screwed into timber rafters and timber or OSB panelling. Installation directly on the insulation is not possible. Base plate: 89 mm x 50.8 mm. Total height of component: 68 mm. Height adjustment: 36.9 mm - 57.5 mm.

K2 SingleRail Hanger Bolt Climber Set M12x250 with fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval. Material: Stainless steel A2/ Aluminium/ EPDM

K2 SingleRail Hanger Bolt Climber Set M10x250 with fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval. Material: Stainless steel A2/ Aluminium/ EPDM

Seam clamp for mounting the SingleRail on double folded standing seams made of titanium zinc, aluminum, stainless or galvanized steel. Material: clamp: aluminum, screws: stainless steel A2

Seam clamp for mounting the SingleRail on various round bulb seams such as Kalzip, Bemo, Aluform or RIB-ROOF Evolution. Material: clamp: aluminum, screws: stainless steel A2

Seam Clamp for SingleRail mounting on angled seam and snap seam Profilees. Material: clamp: aluminium, screws: stainless steel A2

Stainless steel inlay for aluminium seam-clamps. Use on copper double folded standing seam metal roofs. The inlay avoids electrochemical corrosion between copper roof and aluminium clamp. Material: stainless steel V2A

Thread-tapping screw 6x38 mm for non-cutting processing, approved for sheet thicknesses (steel and aluminium) from 0.4 mm to 1.25 mm. With General approval. Certification: abZ (de), abZ (de) BasicClip , ETA (eu), MCS (gb). Material: stainless steel A2, EPDM

Self-drilling hexagonal sheet metal screw 6x35 - with sealing washer. Approved for sheet thicknesses (steel and aluminium) from 0.4 mm.

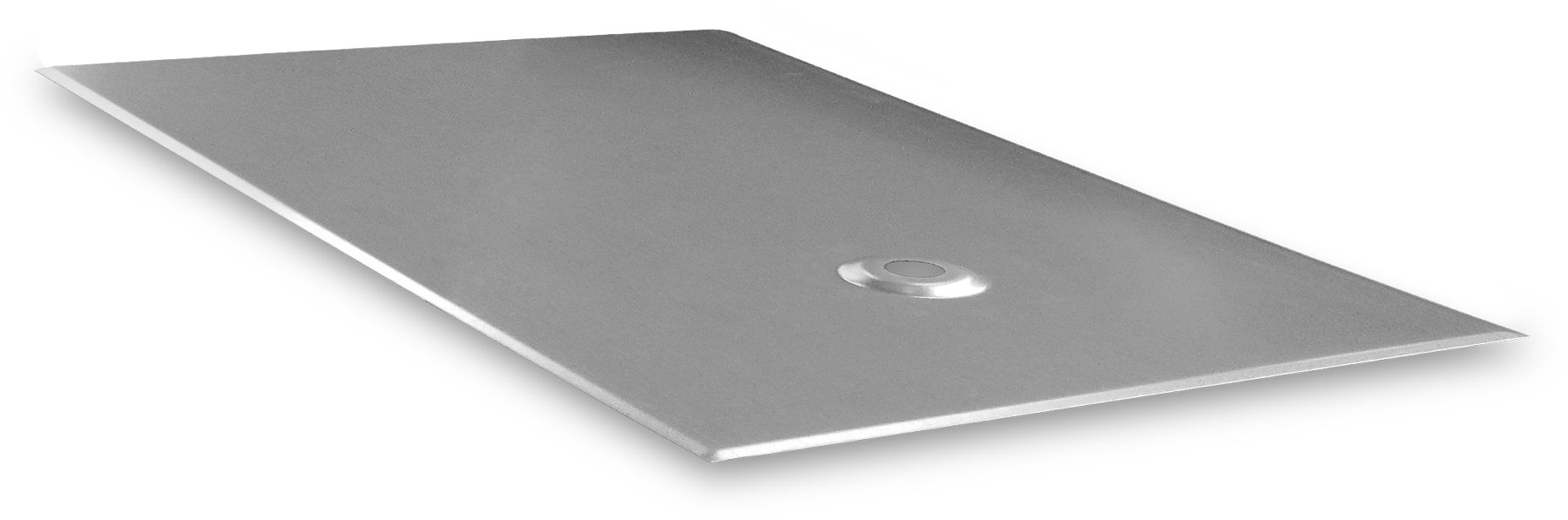

The solar sealing plate is the perfect solution for installing a K2 hanger bolt mounting system on flat Eternit tiles. The additional use of the solar sealing plate between two Eternit panels ensures water drainage and also minimizes the risk of tile breakage by distributing the pressure load. The plate is suitable for hanger bolts with a diameter of 10-12 mm. Dimensions: 250x380 mm. Manufacturer: Malmur. Material: AZ185 galvanized sheet steel.

Base plate shim to underlay roof hook base plates for height compensation of battens. Dimensions: 111x100x4 mm. Compatible with SingleHook 1.1, SingleHook 3S, SingleHook 4S, SingleHook Vario.

The K2 distance pad is ideal for height compensation mounting of threaded roof hooks and the K2 SingleRail. These distance pads are placed between the roof hooks and the Climbers and allow individual height compensation. You can use up to two distance pads on top of each other. Each pad has a material thickness of 2 mm and is made of robust polyamide.
