K2 GreenRoof Vento System
SingleRail 36
Product number:
2004257
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 2.50 m. Material: Aluminium EN AW-6063 T66
GreenRoof Brace
Product number:
2004185
Brace for the GreenRoof Vento system. Length: 332 mm. Material: Aluminium EN AW 6060 T6
TiltUp Vento Foot
Product number:
2003271
For the connection between the concrete foundation and the TiliUp Vento Brace. Material: Aluminium EN AW 6063 T66
GreenRoof Foot
Product number:
2004184
The GreenRoof Foot serves as a connecting element between the BasicRail and two GreenRoof Braces. Material: Aluminium EN AW 6063 T66
GreenRoof Beam
Product number:
2004194
Top beam for the GreenRoof Vento system. Length: 1.00 m. Material: aluminium EN AW 6060 T66
K2 Clamp MC 25-40 mm
Product number:
2004146
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
K2 Clamp EC 30-40, Hybrid
Product number:
2003451
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Universal End Clamp OneEnd
Product number:
2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm, black anodized
Product number:
2003072
Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal End Clamp OneEnd, black anodized
Product number:
2002589
Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13

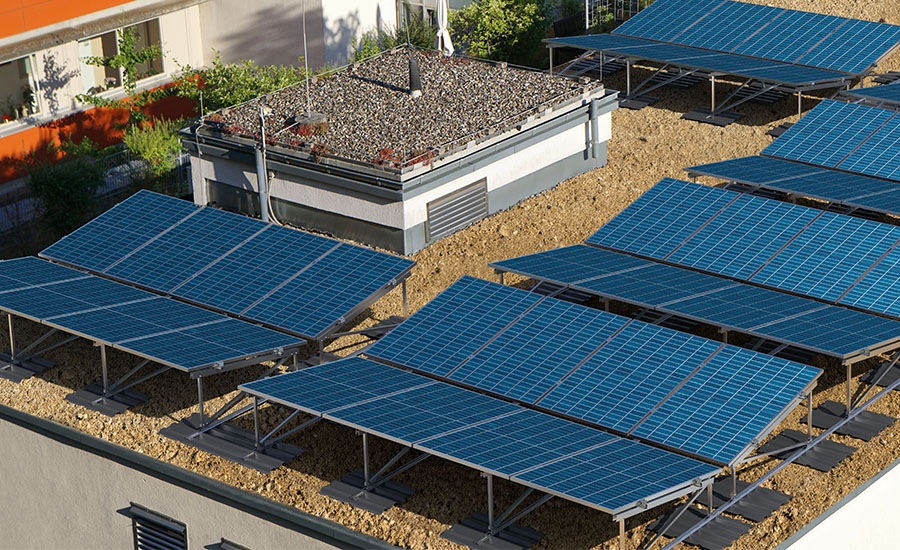

K2 GreenRoof Vento System
The clever solution for photovoltaic systems for green roofs.
Solution with a firm footing on green areas Sufficient distance between the module and the roof surface reduces the maintenance requirements of the green roof Greenery is protected from heat through the covering.
K2 GreenRoof Vento System
System Highlights
The module orientation can be in portrait or landscape.
High Flexibility: Elevations at angles of 10° or 15°, and up to a module size of 2,400mm x 1,350mm.
By maintaining large distances from the roof to the module, optimal conditions for the plants are created.
The development of the GreenRoof Vento System aims to disturb the greening as minimally as possible. Thus, the support feet provide a solid foundation but are designed small enough to allow mosses and succulents to continue receiving light and water to contribute their valuable role.
K2 GreenRoof Vento System
| GreenRoof Vento System | |
|---|---|
| Area of application | Flat roofs with Greenery or Gravel |
| Configurations | Modules in portrait or landscape elevated at 10° or 15° |
| Module dimensions (lxwxh) | 1400-2400 mm x 950-1350 mm x 30-50 mm |
| Materials |
|
| Surface | Blank aluminium |
K2 GreenRoof Vento System
Downloads
K2 GreenRoof Vento System
Videos
K2 GreenRoof Vento System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
