K2 TiltUp Vento System
K2 TiltUp Vento System
AddOn XS
New
Product number:
2004629
GTIN:
4251786216901
K2 TiltUp Vento System
Product information

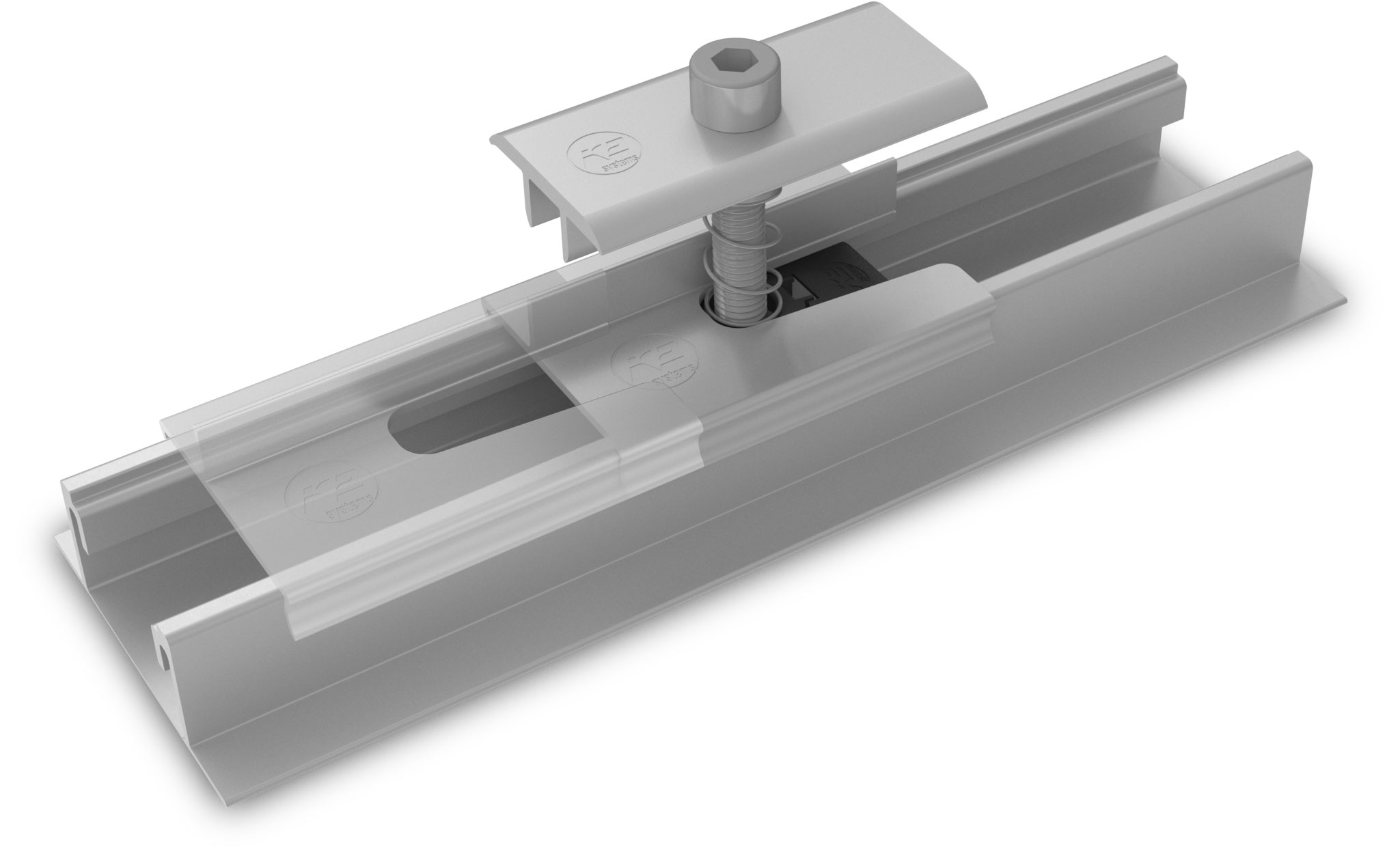

The K2 AddOn XS mounting adapter enables grid or insert mounting without additional rails or clamps for module frame heights of 30–35 mm. Suitable for SolidRail, SingleRail, MultiRail, MiniRail and BasicRail. Exceptions: SolidRail Alpin, SolidRail Medium and SolidRail Light. The mounting adapter is compatible exclusively with K2 XS end and middle clamps. Other clamp designs are not suitable for use with AddOn XS. Material: Aluminium EN AW 6063 T66
| Mounting Rails: | Accessories |
|---|---|
| Mounting systems: | K2 BasicRail System, K2 MiniRail MK2 System, K2 MiniRail System, K2 MultiRail System, K2 SingleRail System, K2 SolidRail System |
| Scope of application: | Flat roof, Pitched Roof |
| Component type: | Accessories |
| Material: | Aluminium EN AW 6063 T66 |
| Sales unit: | 1 Piece |
| Packaging type: |
250 / Box 6.000 / Pallet |
| Weight: | 0.016 Kg |
| Customs tariff number: | 76109090 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
Compatible Items
K2 TiltUp Vento System
Skip product gallery
Accessories

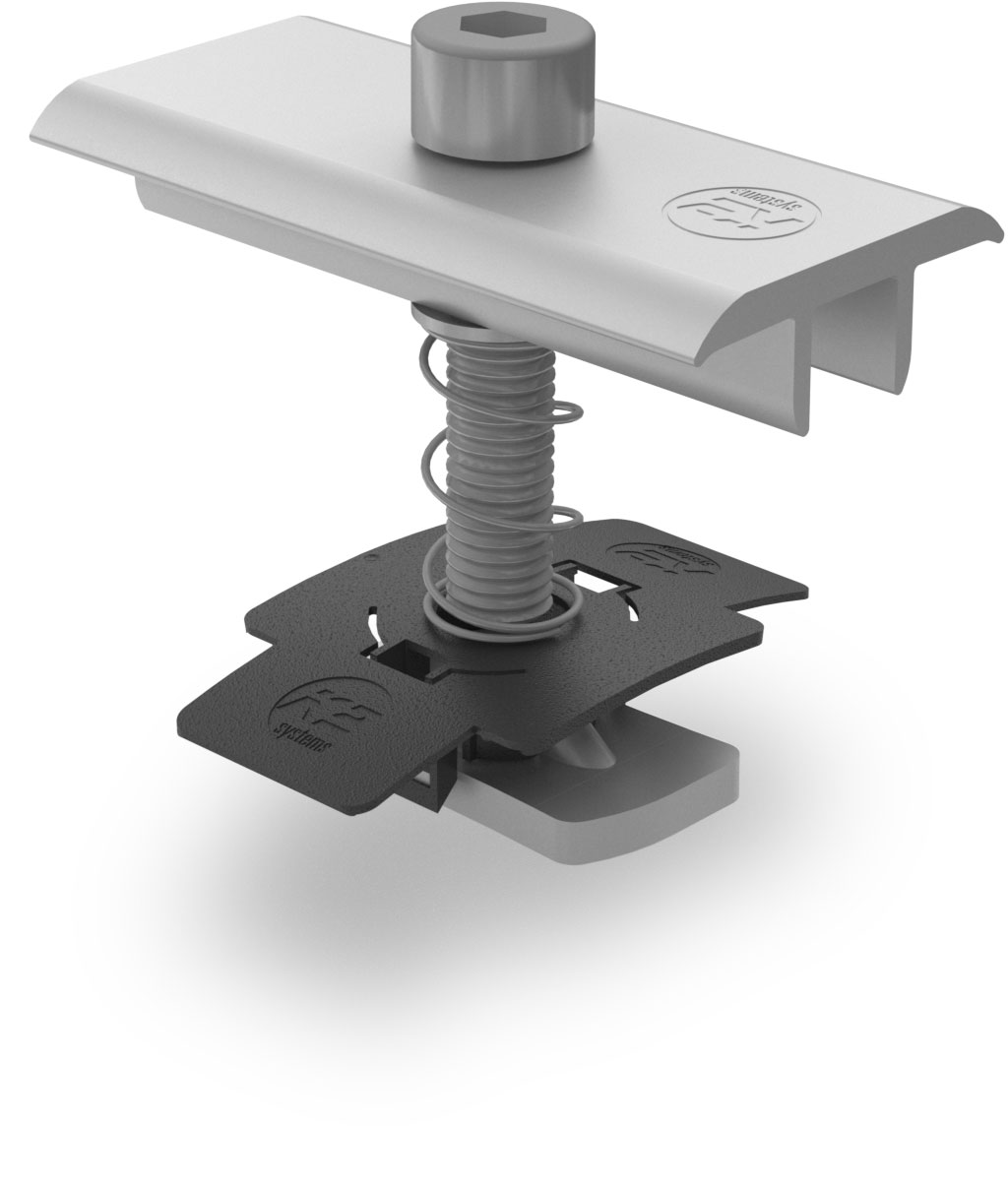

XS Middle Clamp
Product number:
2004609
Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA

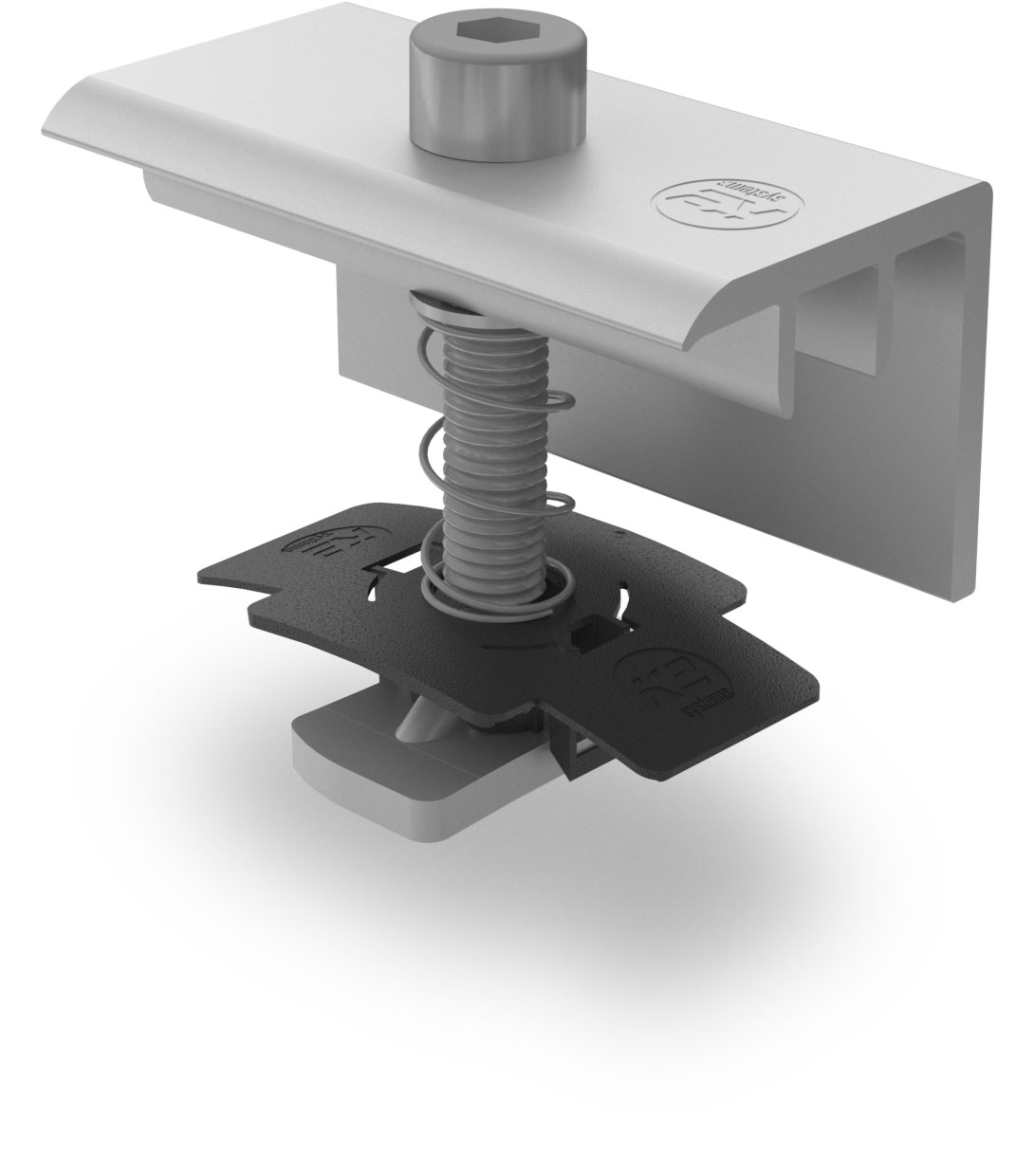

XS End Clamp
Product number:
2004611
Module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, Stainless steel, TPE/PA.

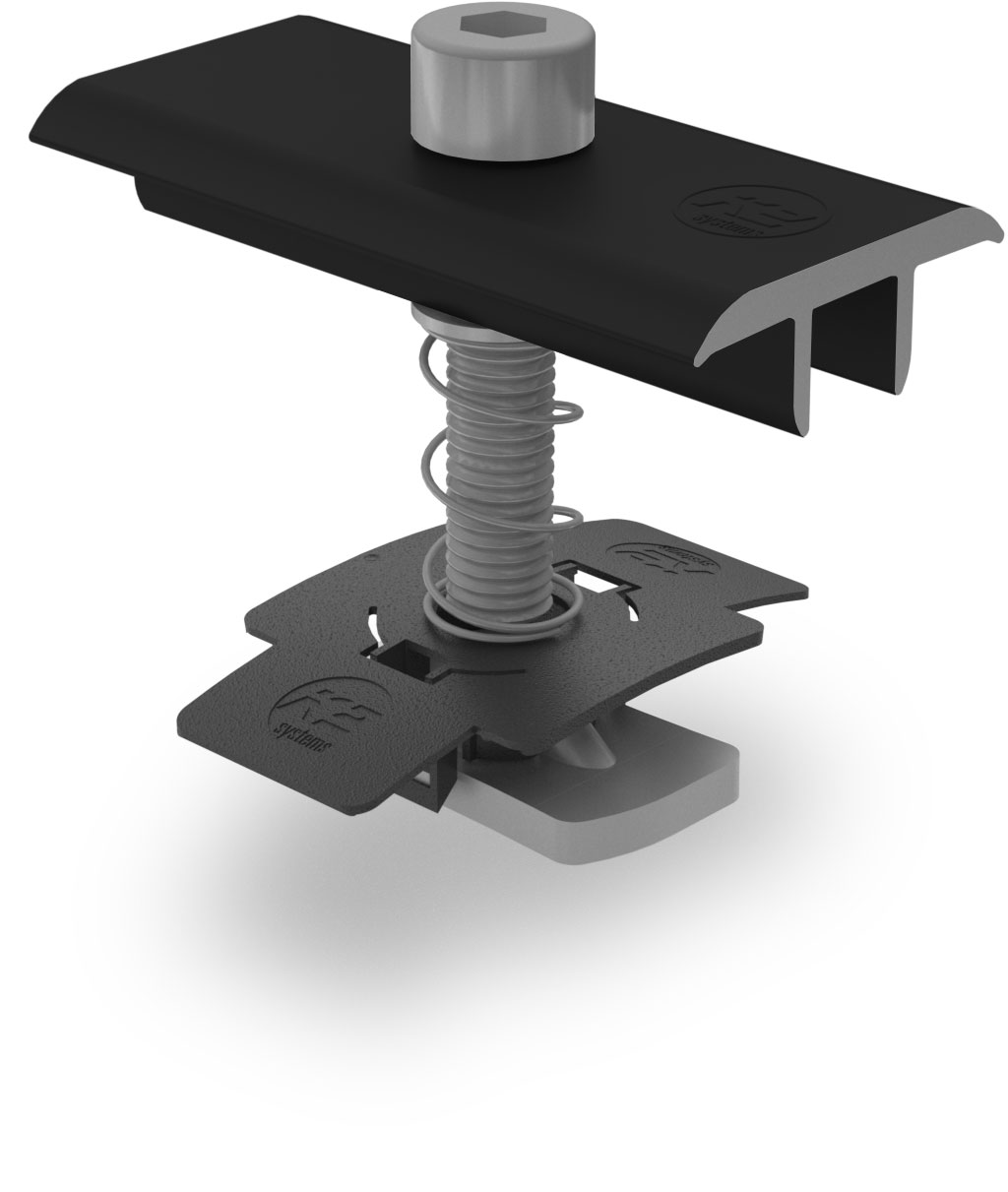

XS Middle Clamp, black anodized
Product number:
2004619
Black anodised module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.

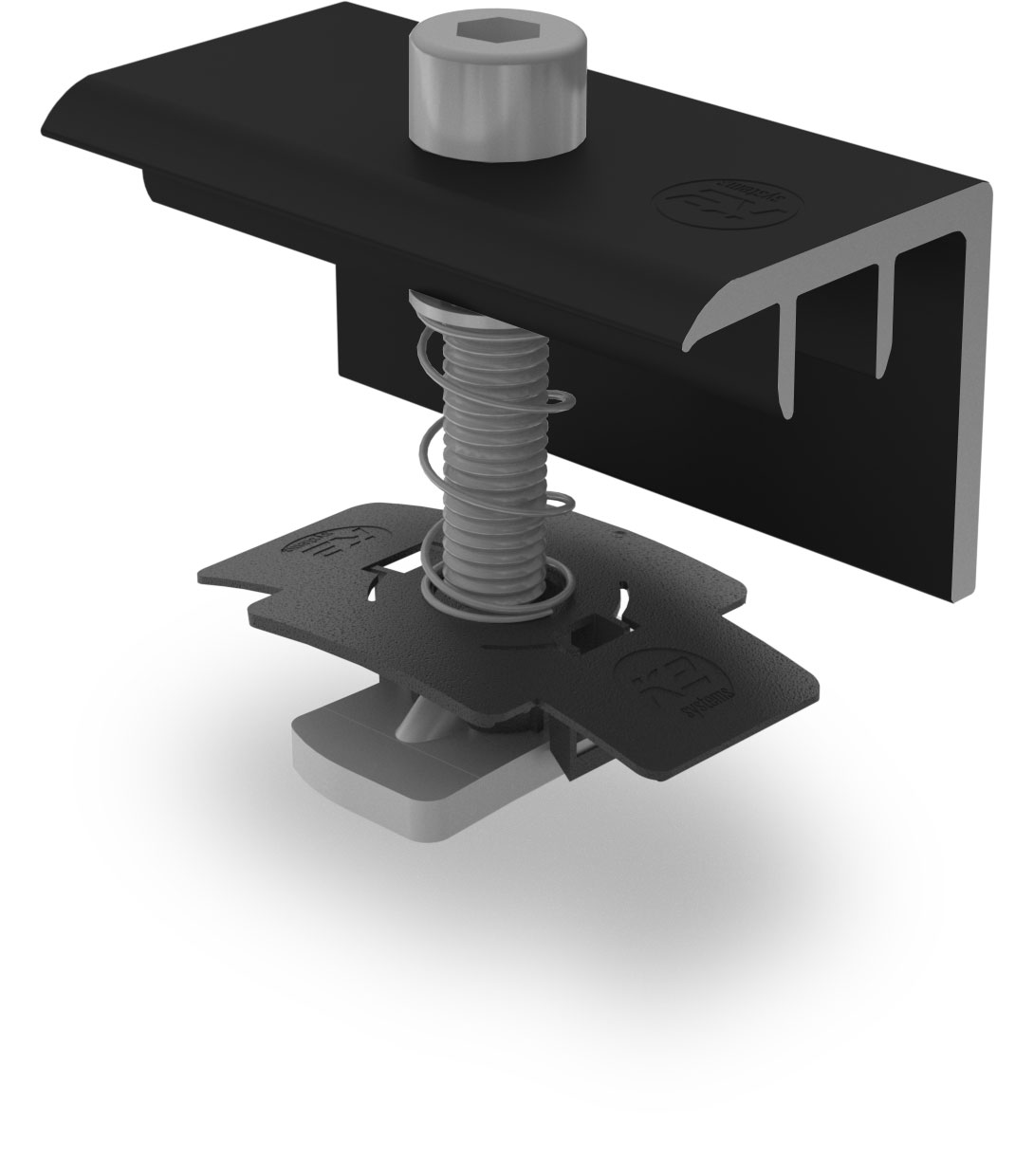

XS End Clamp, black anodized
Product number:
2004621
Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA. Anodising may show slight signs of scratching due to packaging and transport.
