K2 InsertionRail System
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 30 mm. Material: Aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 35 mm. Material: Aluminium EN AW-6063 T66
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
Adjustable Roof Fastener SolidHook Vario 1 for Pan Tile. For fastening of K2 System parts on roofs with pan tiles. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10. Dimension: Base plate: 150x60x5 mm, height under bracket: 43 mm, height bracket: 55-90 mm, bracket 30x6 mm, total height: 112-145 mm. Material: Stainless steel (1.4016)
Adjustable Roof Fastener SolidHook Vario 2 for Pan Tile. For fastening of K2 System parts on roofs with pan tiles. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10. Dimension: Base plate: 140x55x5 mm, Height under bracket: 49-58 mm, Bracket height: 57-76 mm, Total height: 128-156 mm. Material: Stainless steel (1.4016)
For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Base plate: 180x80x4 mm, Height under bracket: 38 mm, Bracket height: 69 mm, Total height: 124 mm, Bracket depth: 91 mm. Material: stainless steel (1.4016)
Roof hook with 3 height adjustments in the base plate (40/47/54 mm) and 30 mm adjustment on the bracket. Slotted hole in the bracket for vertical SolidRail mounting. Base plate: 124x100 mm, Height under bracket: 40/47/54 mm, bracket: 35x9 mm, Overall height: 120.5 - 165 mm. Material: Aluminium EN AW-6063 T66
For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Dimension: Base plate: 180x80x5 mm, Height under bracket: 47 mm, Bracket height: 55 mm, Total height: 121 mm, Bracket depth: 87 mm. Material: stainless steel (1.4016)
Roof hooks with 3 height adjustments in the base plate (40/47/54 mm) and slotted hole in the bracket for vertical SolidRail mounting. Base plate: 124x100, Height under Bracket: 40/47/54 mm, bracket: 35x9 mm, Overall height: 123/130/137 mm. Material: Aluminium EN AW-6063 T66
Roof hooks with long bracket for fastening the K2 system parts on roofs with large-format flat tiles. Bracket with long hole for SolidRail mounting with T-bolt and nut M10. Base plate: 180x80x4 mm, bracket: 35x6 mm, height under bracket: 47 mm, length of bracket: 127 mm, total height: 138.2 mm. Material: stainless steel (1.4016)
For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Base plate: 180x80x4 mm, Height under bracket: 38 mm, Bracket height: 89 mm, Total height: 150 mm, Bracket depth: 91 mm. Material: stainless steel (1.4016)
For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Base plate: 150x60x5 mm, bracket: 30x6 mm, height under bracket: 47 mm (for roof lath 30 mm height), overall height: approx. 133 mm. Material: stainless steel (1.4016)
For fastening of K2 System parts on slate roofs. Bracket with elongated hole to fix the SolidRail with T-Bolt M10. Bracket: 40x250x6 mm, Total height: 72 mm. Material: stainless steel A2 (1.4301)
Adjustable Roof Fastener SolidHook Coppo. For fastening of K2 System parts on roofs with Coppo-Tiles. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10. Dimension: Base plate: 150x60x5 mm, Height under bracket: 18 mm, Bracket height: 88 - 118 mm, Total height: 123 - 153 mm, Bracket depth: 120 mm. Material: Stainless steel (1.4016)
For fastening of K2 System parts on clay brick roofs with flat tile roofing. Bracket with elongated hole to fix the SolidRail with T-Bolt and Nut M10. Base plate: 40x50 mm, Height under bracket: 33 mm, Bracket height: 62 mm, Total height: 122 mm, Bracket depth: 189 mm. Material: Stainless steel A2 (1.4301)
Zum Befestigen der K2 Systembauteile auf Ziegeldächern mit Biberschwanzeindeckung. Bügel mit Langloch zur SolidRail Montage mit Hammerkopfschraube und Bundmutter M10. Gesamthöhe: ca. 119 mm, Ausleger: 75x4 mm, Höhe unter Ausleger: 33 mm Material: Magnelis 1.0242 (S250GD+ZM310)
K2 SolidRail Hanger Bolt Set M10x250 with adapter plate and fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Length wood thread 67 mm. Length metric thread 85 mm. General approval. Material: Stainless steel A2/ Aluminium/ EPDM
K2 SolidRail Hanger Bolt Set M12x250 with adapter plate and fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Length wood thread 100 mm. Length metric thread 100 mm. General approval. Material: Stainless steel A2/ Aluminium/ EPDM
Solar fastener 8x150 / M10x50 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x150 / M10x50 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x50 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x50 with calotte and hardened tip (without adapter plate). For fixing the K2 Systems components in the steel substructure, suitable for trapezoidal sheet metal covering. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x150 / M10x70 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x80 / M10x70 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal Profilees and sandwich panels elements. With general building approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x115 / M10x70 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x70 with calotte and hardened tip (without adapter plate). For fixing the K2 Systems components in the steel substructure, suitable for trapezoidal sheet metal covering. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Adapter plate for Hanger Bolt and Solar Fastener M12. 40x90 mm. Material: Aluminium
Adapter plate for Hanger Bolt and Solar Fastener M10. 40x90 mm. Material: Aluminium
Assembly retention set to hold insertion rails on vertical profiles. Material: EN-AW 6060 T66; Stainless Steel 1.4301; A2-70
Assembly retention set to hold insertion rails on vertical profiles. Material: black anodised EN-AW 6060 T66; Stainless Steel 1.4301; A2-70
Rail connector for quick and easy connection of two K2 InsertionRails. Material: Aluminium EN AW-6063 T66
Rail connector for quick and easy connection of two K2 InsertionRails. Material: Aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
For quick and easy connection of two K2 SolidRail Medium or Alpin. Set including screws and nuts. Material: Aluminium EN AW-6063 T66 / Stainless steel A2
For quick and easy connection of two K2 SolidRail XS, UltraLight or Light. Set including screws and nuts.
Flange head wood screw 6x80 with ETA certification that guarantees a quick and safe assembly without pre-drilling. Drive: T-Drive (T-25), Thread: Full thread.
Material: stainless steel A2
Head timber screws, drilling-point and Countersunk head 6x70/42. Drive size: TX25. Material: A2
Plate head wood construction screw 8x120 with ETA certification that ensures fast and secure installation without pre-drilling. Drive: T-Drive (T-40), material: A2 stainless steel. Manufacturer: HECO or Reisser.
T-Bolt M10x25 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
Plastic Profilee to hold the DC wiring in the K2 InsertionRail System. Material: polycarbonate
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
The UV-resistant PVX
Minimount
provides a multifunctional cable management system for mesh tray on trapezoidal roofs. Compatible mesh tray: 2004054. Material: Nylon PA6GF30, Halogen free, UV resistant
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
End angle for K2 InsertionRail. Incl. fitted grub screw M6. Material: AlMgSi0.5 F22
K2 End Cap for K2 SolidRail Light 37. Material: glass fibre reinforced polyamid
K2 InsertionRail System
Sleek design with continuous closed surface adds further robustness.
- It is suitable for roofing with pantiles, corrugated fibre cement or corrugated sheet metal and is fixed with roof hooks or hanger bolts.
- Sleek design with continuous closed surface adds further robustness
- Insertion profile provides additional frame reinforcement
- Without having to apply clamps eliminates the need for assistance ensuring lightning-fast installation
- Module wiring quick and easy
K2 InsertionRail System
Scope of application

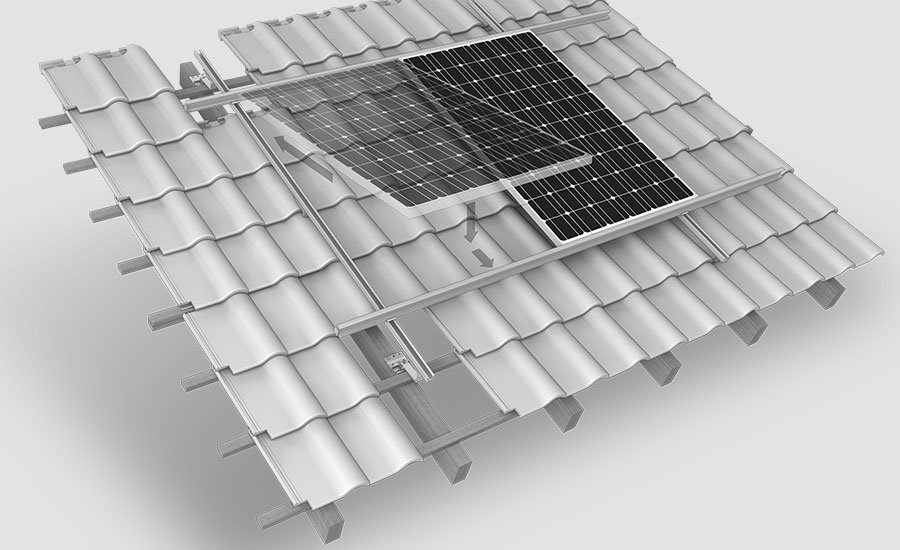

We offer roof hooks for almost all clay tiles, pantiles and concrete tiles. 80 % of all applications can be solved with our SolidHook 3S+ or 4S+.
For plain tiles or flat concrete roof tiles we offer special roof hooks.

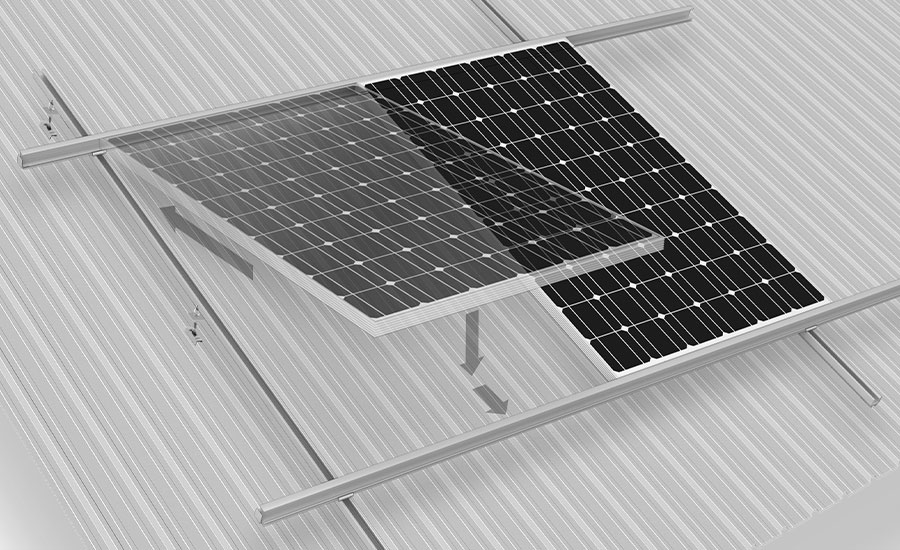

For corrugated roofing, such as Eternit, we offer hanger bolts for wooden substructures. They are available in many different lengths and in diameters M10 and M12.
All are equipped with a sealing and they have an abZ certification in Germany.

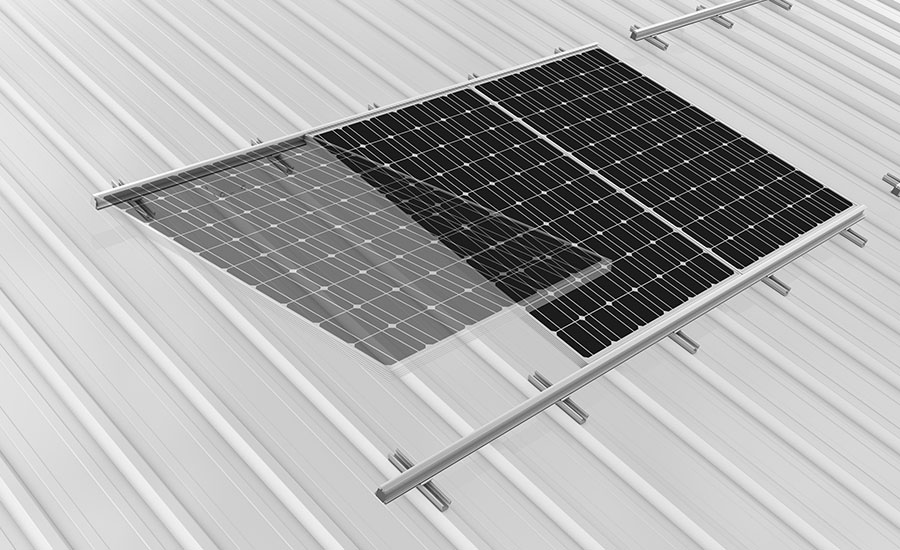

For the area of trapezoidal sheet metal roofing, we offer the connection with a MultiRail mounting rail. This allows you to build PV systems on almost all trapezoidal sheet metal roofs.
K2 InsertionRail System
Technical data
| InsertionRail System | |
|---|---|
| Scope of application |
|
| Fastening type / roof connection | Roof hooks, hanger bolts or MultiRail |
| Module frame heights (H) |
|
| Requirements | 7 mm spacing between insertion rails |
| Module orientation | Landscape and portrait |
| Material |
|
Possible module frame heights
H = height
K2 InsertionRail System
Downloads
K2 InsertionRail System
Videos
Webinar (EN 28.07.2021)
Tiled roofs with roof tile milling machine from Rabied Biedron Diamanttechnik GmbH
K2 InsertionRail System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
