K2 WallPV MultiRail
InsertionRail 2.0 - 40; 5.70 m Black
Product number:
2004335
Die InsertionRail 2.0 ist ideal für die Montage von Solarmodulen mit 40 mm Rahmenhöhe und eignet sich sowohl für die Schrägdach-Montage, als auch für die Fassaden-Montage. Mit dem unkomplizierten Einsatz des CrossConnectors 2.0 lässt sie sich problemlos an jede K2 Montageschiene montieren. Zusätzlich ermöglicht sie die direkte Integration in den BasicClip, ähnlich der Funktionalität der BasicRail. Diese vielseitige Einlegeschiene macht die Installation noch effizienter und anpassungsfähiger. Material: Aluminium EN AW 6063 T66, schwarz eloxiert
MultiRail 25
Product number:
2002793
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
InsertionRail 2.0 - 30; 5.70 m Black
Product number:
2004316
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised
InsertionRail 2.0 - 30; 5.70 m
Product number:
2004339
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 CrossConnector Black
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2,85 m Black
Product number:
2004665
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW-6063 T66, black anodised. Anodised finish may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2,85 m
Product number:
2004680
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 RailConnector
Product number:
2004355
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66
InsertionRail 2.0 RailConnector Black
Product number:
2004322
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66, black anodised. The anodised finish may show slight signs of scratching due to packaging and transport.

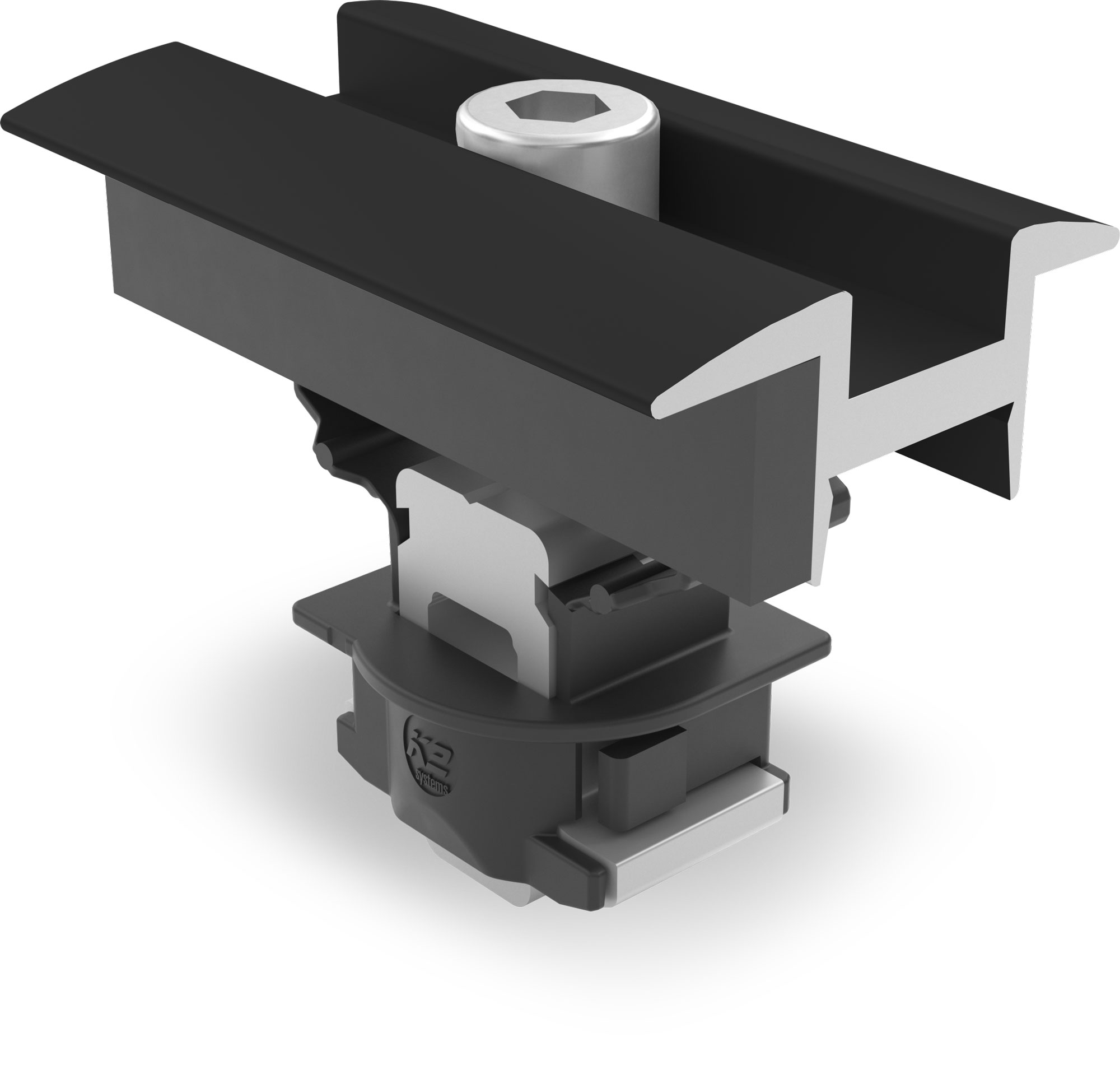

Facade Clamp MC Black 25-40 Set
Product number:
2004377
K2 Facades MC Clamp for fixing solar modules with frame heights 25-40 mm. Black anodised. Material: Aluminium EN AW 6063 T66, stainless steel A2, EPDM
K2 Clamp EC 30-40, Hybrid
Product number:
2003451
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Thread-forming metal screw 5.5x25
Product number:
2005033
Thread-forming hexagon head sheet metal screw 5.5x25 mm. Fastening of the CarrierRail on thin-walled metal profiles for PV systems, for chipless processing, approved for sheet steel from 0.4 mm and for aluminium from 0.5 mm to 1.25 mm thick. With building authority approval. Material: A2 stainless steel, EPDM
Thread-forming metal screw
Product number:
1005207
Thread-tapping screw 6x25 mm for non-cutting processing, approved for sheet thicknesses (steel and aluminium) from 0.4 mm to 1.25 mm. With General approval. Certification: abZ (de), ETA (eu), ETN (fr). Material: stainless steel A2, EPDM
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
InsertionRail 2.0 EndStop
Product number:
2004372
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66, stainless steel
InsertionRail 2.0 EndStop Black
Product number:
2004373
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66 black anodised, stainless steel. Eloxal may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 FixStop
Product number:
2004370
The FixStop 2.0 ensures that the InsertionRail 2.0 is reliably fixed to the CrossConnector 2.0 to prevent it from being pushed out. The FixStop 2.0 is supplied pre-assembled with an M8x8 hexagon socket grub screw for quick and easy installation. Material: Aluminium EN AW-6063 T66, stainless steel
ModuleSafety
Product number:
2004290
The K2 ModuleSafety is specially designed for use with the K2 InsertionRail in combination with the WallPV system. It acts as a spacer between two modules and ensures that the required distance between them is maintained. Material: EPDM Shore A 70
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
TerraGrif K2U17 Portrait
Product number:
2000056
The mounting accessory enables potential equalisation of the K2 mounting systems or earthing of the module frames. The TerraGrif K217 can be easily attached to the underside of the module frame and is compatible with almost every module type. The material is 301 TA stainless steel and can be placed in the area of the adjacent elevation or mounting system components.
Rail AntiSlip Clip
Product number:
2004289
The WallPV FallProtection, compatible with the K2 MultiRail and FacadeRail, provides additional safety for the WallPV system. The Rail FallProtection is attached below the lower CrossConnector or the lower clamp to prevent slipping. It is attached using a 5.5x19 screw (2004432). Material: Aluminium EN AW 6063 T66
Facade Module Support
Product number:
2004287
The K2 Facade Module Support serves as a mounting aid for MultiRail with FacadeClamp. It is fastened with the MK2 (1001643) and the cylinder head screw M8x20. Mandatory during installation and remain on the façade system afterwards. Material: Aluminium EN AW 6063 T66
K2 hand sample WallPV MultiRail Clamp
Product number:
2004468
Exhibit of the K2 WallPV MultiRail Clamp consisting of: MultiRail 25- FacadeClamp MC 25-40 Black Set - Module Support - MK2 - Cylinder head screw with underhead toothing M8x20- K2 Clamp EC 30-40 Hybrid - Rail AntiSlip Clip - Self-Tapping metal screw 5.5x19
K2 hand sample WallPV MultiRail Ins.Rail
Product number:
2004469
Exhibition piece of the K2 WallPV MultiRail Ins.Rail consisting of: MultiRail 25 - Rail AntiSlip Clip - InsertionRail 2.0 30 - InsertionRail 2.0 Cover 30 - FixStop - EndStop - CrossConnector - ModuleSafety - Self-Tapping metal screw 5.5x19
K2 WallPV MultiRail

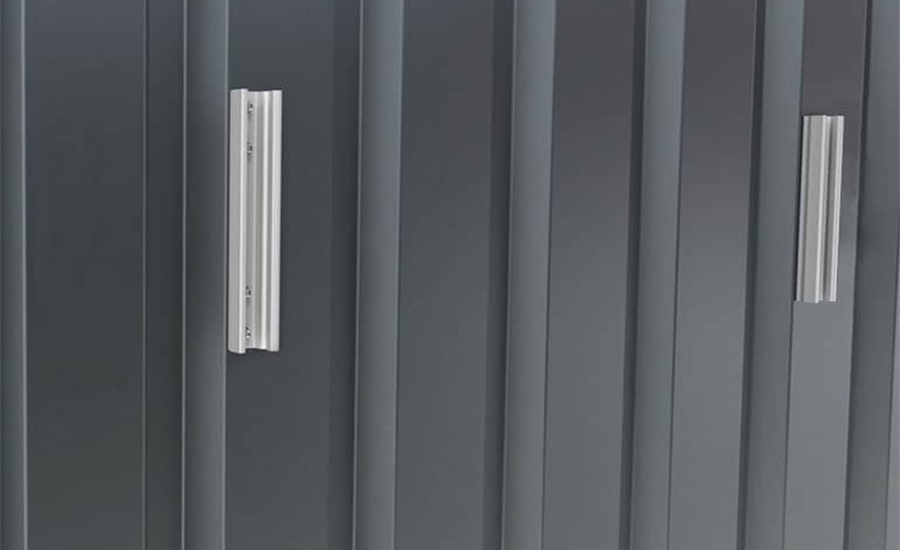

One of the most common facade claddings in trade or agriculture is trapezoidal sheet metal or corrugated sheet metal. For these materials, we rely on our tried-and-tested MultiRail. We offer an efficient and easy-to-install wall fastener.
- Facade fastening with MultiRail: Proven installation with building authority-approved thin sheet metal screws
- Trapezoidal sheet metal or corrugated sheet metal: Can be used for almost all common sheet metal profiles
- Insertion rails or module clamps: Large hall façades or small commercial and agricultural buildings
K2 WallPV MultiRail
System Highlights
MultiRail is a proven fastener and module support rail from the roof-mounted sector.
The MultiRail system now opens up the possibility of building facade systems. This greatly increases the potential range of applications for these components.
During installation, you benefit from the same advantages as with the system and can rely on the same safety through thin sheet metal screws approved by the building authorities.

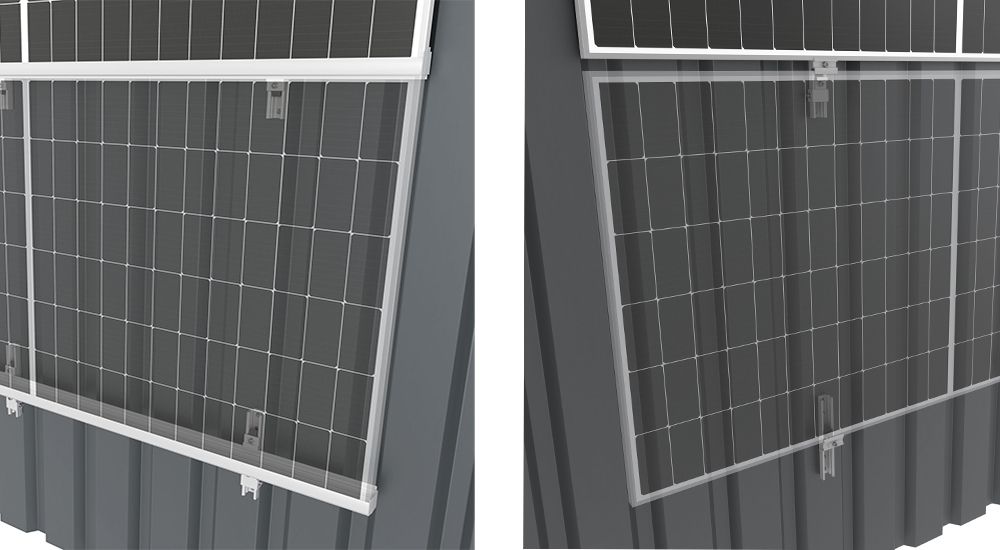

High scaling with InsertionRail or efficient small systems with FacadeClamp
The InsertionRails enable huge scaling of this system in professional commercial buildings. Smaller installations in workshops or mixed-use buildings can be realised efficiently and flexibly with FacadeClamp modular clamps.
Silver or black InsertionRails ensure an attractive overall appearance and reinforce the system. The PV modules can be installed quickly and securely on the façade with the InsertionRail. Despite the largely closed surface, enough gaps remain for rear ventilation.
K2 WallPV MultiRail
| MultiRail | |
|---|---|
| SCOPE OF APPLICATION | Facade |
| FASTENING TYPE / ROOF FIXTURE | MultiRail for trapezoidal sheet metal and MultiRail CSM for corrugated sheet metal |
| Thermal separators: Insertionrail | after 13.6 m (vertical) and 21.0 m (horizontal) |
| Thermal breaks: Clamp | after 13.6 m vertical |
| Minimum distance | None to consider. |
| Neigungswinkel | parallel to the façade |
