K2 Universal KL-Clamp System

Ultra-quick assembly solution for roofing types Klip-Lok® and Klip-Tite® with universal module clamp.
  • Ultra-quick assembly solution for roofing types Klip-Lok® and Klip-Tite®
  • Rail-less landscape assembly with one module-bearing clamp
  • Comfortable portrait assembly with SingleRail
  • Also possible for wider roof profile ribs

K2 Universal KL-Clamp System

System Variants

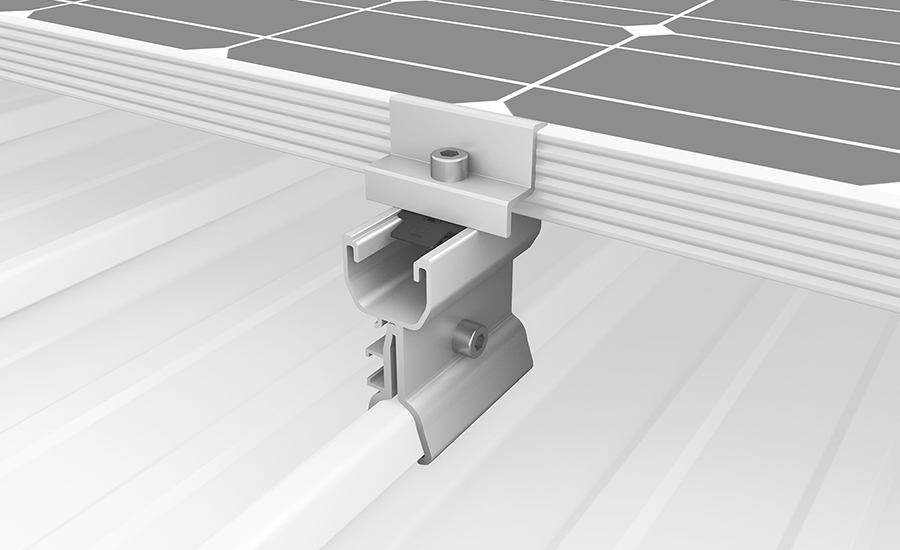

Module supporting clamp for rail-less assembly

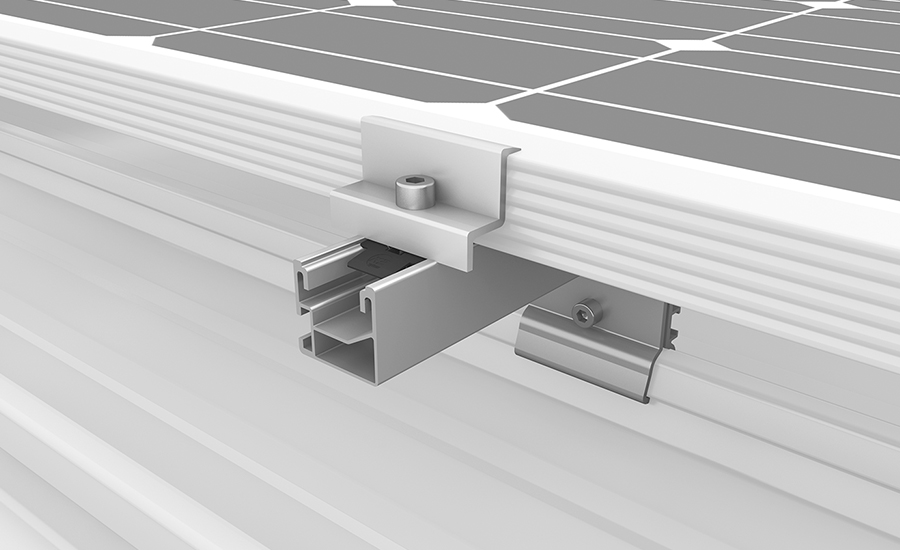

Quick fastening and optional portrait assembly
Convenient lateral connection with Climber

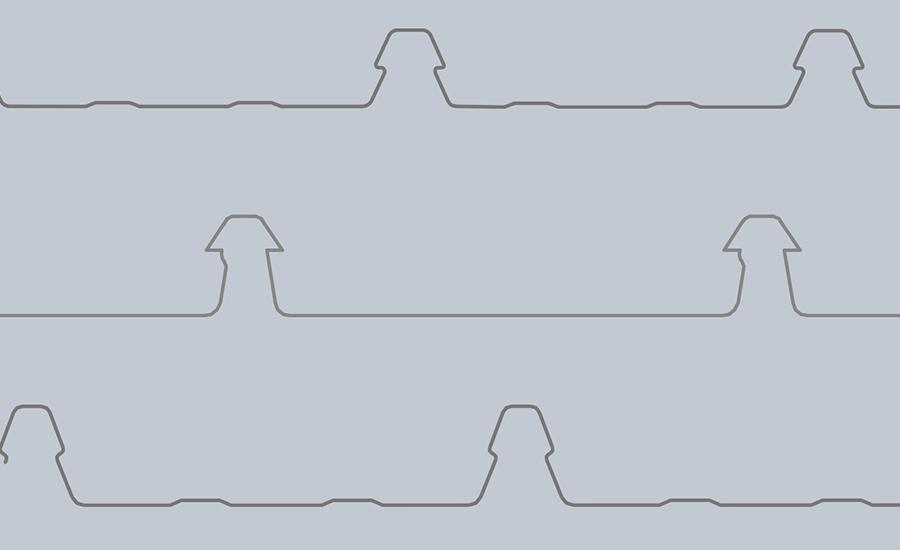

The KL-Clamp is flexible and can be used for different profile types.
For profile types:
Lysaght:
  • Klip-Lok 406
  • Klip-Lok 700 classic
  • Klip-Lok 700 hi-strenght
  • Klip-Lok Optima
Global Roofing Solutions:
  • KlipTite 700
  • Fielders KingKlip 700

K2 Universal KL-Clamp System

Technical Data

Universal KL-Clamp System
Compatibility Lysaght:
  • Klip-Lok 406
  • Klip-Lok 700 classic
  • Klip-Lok 700 hi-strenght
  • Klip-Lok Optima
Global Roofing Solutions:
  • KlipTite 700
  • Fielders KingKlip 700
Module orientation Landscape and Portrait (with SingleRail)

K2 Universal KL-Clamp System

Downloads

General Assembly and Maintenance Instructions

DE EN FR IT

Assembly instructions - Universal KL-Clamp System

DE EN

Assembly instructions (Australia/New Zealand) - Universal KL-Clamp System

EN
