PerfoRail M Drilling Template
New
Product number:
2004871
GTIN:
4251786217212
Concrete and brickwork
Product information

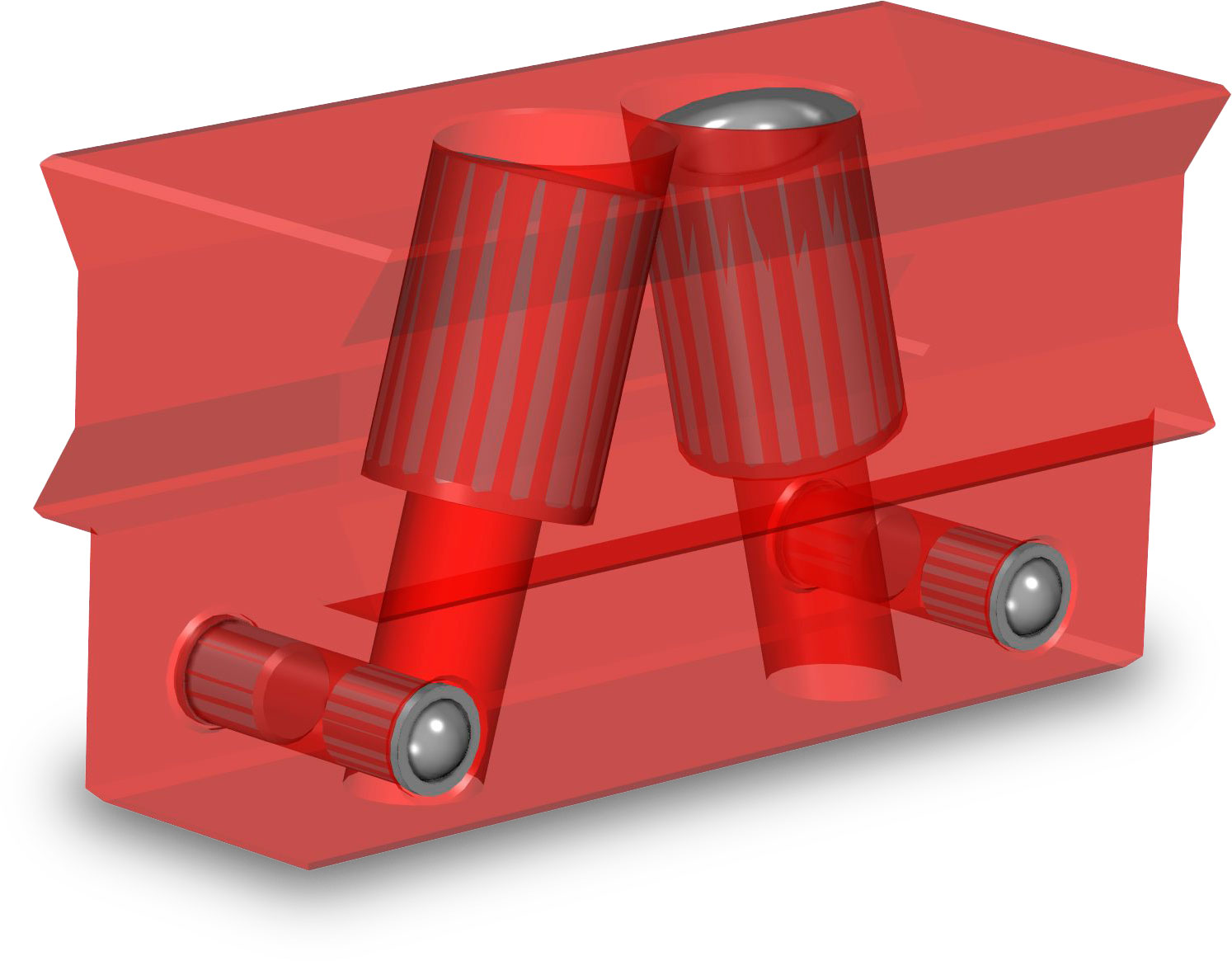

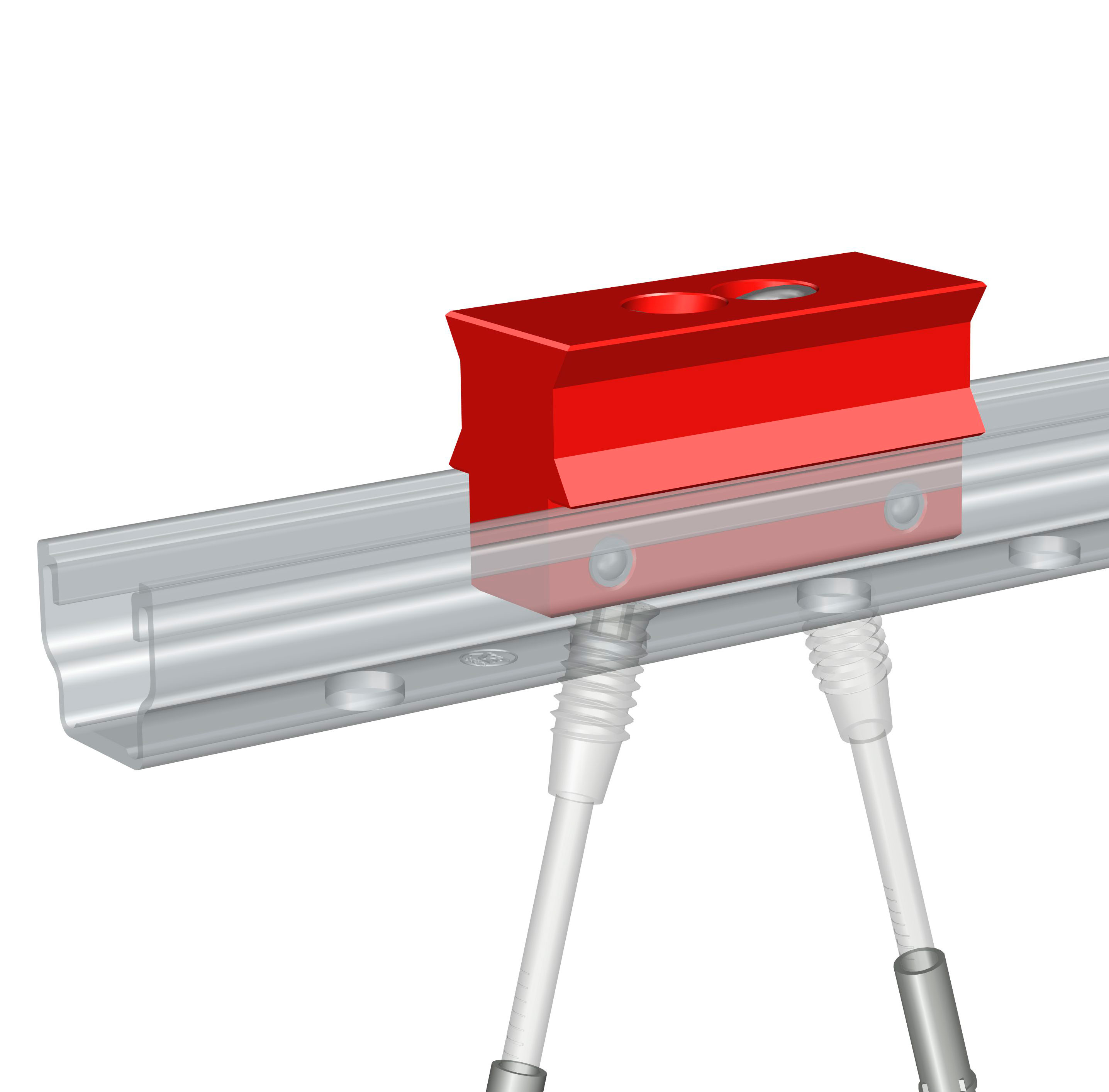

Drilling template for PerfoRail M with -15° and +15° drill bushing.
| Mounting systems: | K2 WallPV |
|---|---|
| Scope of application: | Facade |
| Component type: | Accessories |
| Material: | Plastic POM, steel 1.4034, steel 1.4305 |
| Sales unit: | 1 Piece |
| Packaging type: |
50 / Box 2400 / Pallet |
| Weight: | 0.222 Kg |
| Customs tariff number: | 39269097 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
Compatible Items
Concrete and brickwork
Skip product gallery
Mounting rails
PerfoRail M; 4.20 m
Product number:
2004698
Perforated mounting rail for direct mounting on concrete with and without insulation. Quick and easy fastening using RDS spacer screw. Base of the rail is 3 mm thick. Material: Aluminium EN AW 6063 T66
Skip product gallery
Accessories
RDS-CA Spacer screw
Product number:
2004739
Spacer screw for fastening secondary aluminium substructures in front of masonry/concrete as a substructure for the InsertionRail. RDS-CA aluminium spacer screw, countersunk head, 10.0 x 190 mm, partial thread L1 100 mm, hexagon socket drive 6, surface pickled, passivated, anti-friction coated. Approval Z-21.2-2130. Material stainless steel A4. Manufacturer: Reisser.
