Dome FixPro S
Product number:
2003384
GTIN:
4251786206049
Flat Roof
Product information

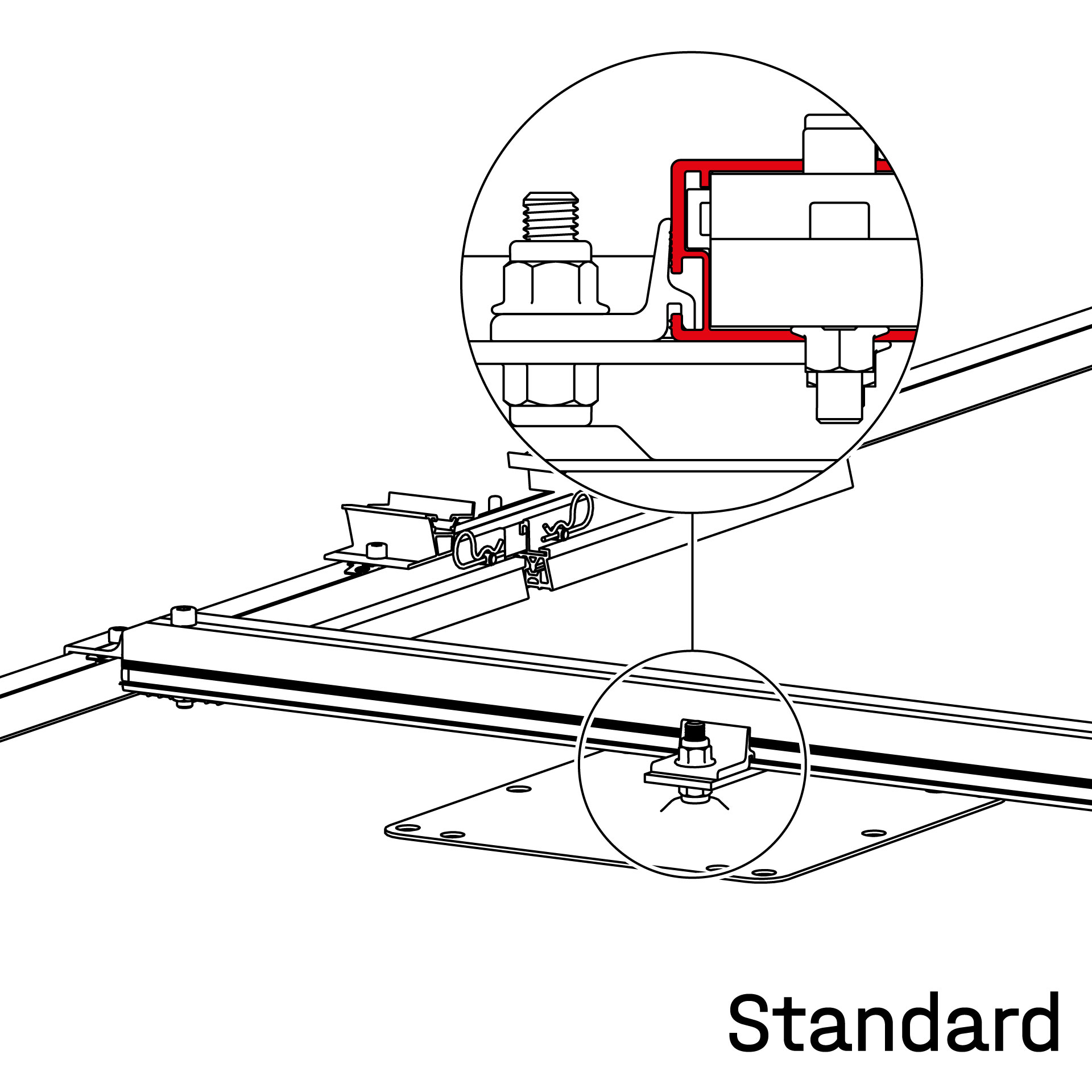

Fixing accessories for attaching the K2 Dome 6 LS-systems and K2 Dome Zero to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths: Classic LS 1562 - 2390 mm, Xpress LS 1562 - 2500 mm, Dome Zero 1640 - 2390 mm. Material: aluminium, stainless steel, TPC.
Please check the correct position of the module's clamping points on site.
| Module length [mm]: | 1562-2390, 1640–2390 |
|---|---|
| Mounting systems: | K2 Dome 6 System, K2 Dome Zero System |
| Scope of application: | Flat roof |
| Component type: | Roof fixture |
| Material: | Aluminium EN AW 6063 T66, Stainless Steel A2-70, Stainless Steel 1.4301, TPC |
| Sales unit: | 1 Piece |
| Packaging type: |
60 / Bundle |
| Weight: | 2.514 Kg |
| Customs tariff number: | 76109090 |
Compatible Items
Flat Roof
Skip product gallery
BasicRail 22
Product number:
2004279
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Adapter plate M10 for roof fixture
Product number:
2002546
Adapter plate for M10 hanger bolts and roof anchors M10 in combination with the Climber M10 or as accessory part for the article Dome FixPro. Dimensions: 50x90. Material: aluminium
Climber 36/50 for roof fixture
Product number:
2003146
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M10 hanger bolt/M10 roof anchor or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
