K2 MultiAngle System
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Support 15° for the MultiAngle System. Dimensions: 60x40x4 mm. Length: 320 mm.
MultiAngle Top flange
Product number:
2002054
Top flange with drillings to place module vertical or horizontal. Aluminium 60x40x4 mm, length 1.450 mm
Universal module end clamp for fixing solar modules with frame heights of 25-37mm. Not compatible with the K2 Dome 6 System.
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Wind brace for the K2 MultiAngle system. Aluminum L-profile 30x30x3, 1.50m.
BlackCover SingleRail 36
Product number:
2003523
K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.
MultiAngle Accessoires
Product number:
2002082
Accessory set for the K2 MultiAngle system. One set required per triangle.
Set consists of: 3x 1001643 - MK2, 3x 2002052 - MultiAngle L-Angle, 2x 2003140- Climber 36/50, 10x 2001732 - Cylinder head bolt M8x25, 6x 1000043 - Collar nut M8
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
SingleRail 36 light; 4.80 m
Product number:
2004413
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
Module end clamp set for fixing solar modules with frame heights 30-31 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Black anodized module end clamp set for fixing solar modules with frame heights 30-31 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA. Eloxal may show slight scratches as a result of packaging and transport.
Module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 system. Material: Aluminium EN AW-6063 T66, stainless steel A2, PA
Alternative item: 2004278Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 4.40 m. Material: Aluminium EN AW-6063 T66
Alternative item: 2004393
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4,40 m. Material: Aluminium EN AW-6063 T66
SingleRail 36 light; 5.95 m
Product number:
2004256
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5,95 m. Material: Aluminium EN AW-6063 T66
Black anodized module middle clamp XS set for fixing solar modules with frame heights 30-33 mm. Not compatible with the K2 Dome 6 System. Material: Anodized aluminium EN AW-6063 T66, stainless steel A2, PA.
SingleRail 36 light; 4.40 m
Product number:
2003258
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4,40 m. Material: Aluminium EN AW-6063 T66
K2 MultiAngle System
High flexibility due to individually adjustable elevation angles and universal module orientation.
- High flexibility and individual solutions
- Suitable for almost all flat roofs
- Individually adjustable elevation angles
- Universal module orientation
K2 MultiAngle System
K2 MultiAngle System
Technical data
| MultiAngle System | |
|---|---|
| Scope of application |
Flat roofs, fields, or ground |
| Fastening type/roof fixture |
Fastening or ballasting |
| Technical specifications | Thermal separation after max. 13.6 m |

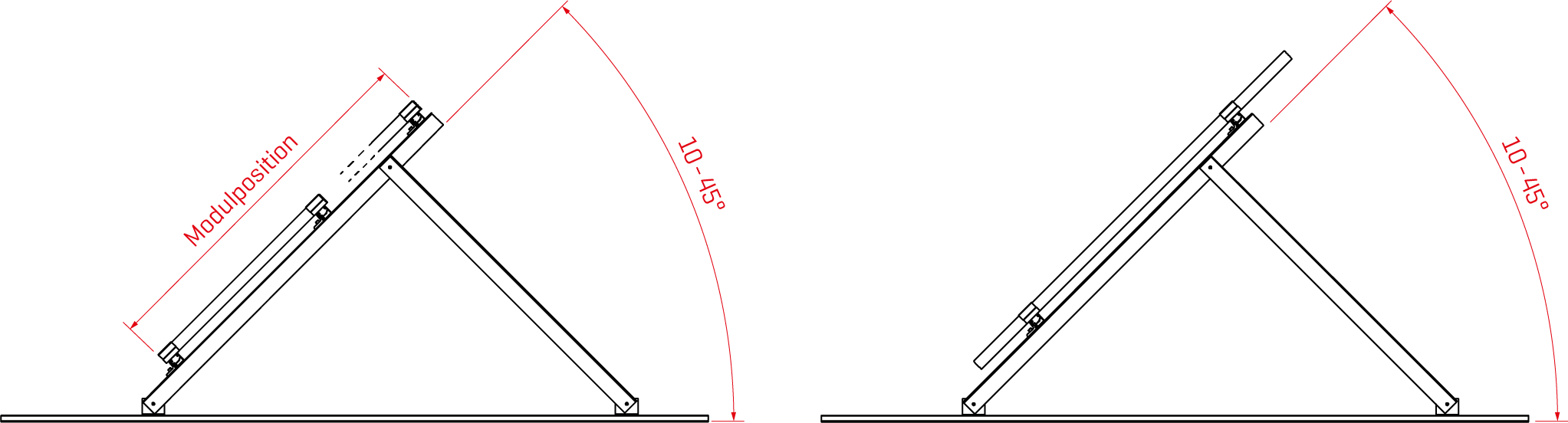

| Inclination angle | 10-45° individually adjustable |
| Material |
|
Side views
K2 MultiAngle System
Downloads
Tender specification - MultiAngle
K2 MultiAngle System
Videos
K2 MultiAngle System
K2 Base: Easy, fast and safe planning
Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs. Our free planning tool K2 Base has a dashboard for efficient project management. Google Maps integration and graphic drawing tools support you in planning and make it easier.
