Corrugated Sheet Metal
Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 35 mm. Material: Aluminium EN AW-6063 T66
Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 30 mm. Material: Aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
MultiRail 25 CSM
Product number:
2004210
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
MultiRail 10 CSM
Product number:
2004209
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
SolidRail Light; 4.80 m Black
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SolidRail Medium; 4.80 m
Product number:
2004415
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66
SolidRail Alpin; 5.95 m
Product number:
2004275
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. For high span width. Length 5.95 m. Material: aluminium EN AW-6063 T66
Solar fastener 8x150 / M10x50 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x150 / M10x50 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x50 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x50 with calotte and hardened tip (without adapter plate). For fixing the K2 Systems components in the steel substructure, suitable for trapezoidal sheet metal covering. European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x150 / M10x70 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x80 / M10x70 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x115 / M10x70 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solar fastener 8x195 / M10x70 with calotte and hardened tip (without adapter plate). For fixing the K2 Systems components in the steel substructure, suitable for trapezoidal sheet metal covering. European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Adapter plate aluminium, M10
Product number:
2002544
Adapter plate for Hanger Bolt and Solar Fastener M10. 40x90 mm. Material: Aluminium
Adapter plate aluminium, M12
Product number:
2002545
Adapter plate for Hanger Bolt and Solar Fastener M12. 40x90 mm. Material: Aluminium
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 CrossConnector Black
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
InsertionRail CrossConnector, black anodized
Product number:
2002763
Assembly retention set to hold insertion rails on vertical profiles. Material: black anodised EN-AW 6060 T66; Stainless Steel 1.4301; A2-70
InsertionRail CrossConnector
Product number:
2002762
Assembly retention set to hold insertion rails on vertical profiles. Material: EN-AW 6060 T66; Stainless Steel 1.4301; A2-70
Rail connector InsertionRail, black anodized
Product number:
2002765
Rail connector for quick and easy connection of two K2 InsertionRails. Material: Aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
Rail connector InsertionRail
Product number:
2002764
Rail connector for quick and easy connection of two K2 InsertionRails. Material: Aluminium EN AW-6063 T66
Rail connector Set SolidRail Ultra Light and Light
Product number:
1004107
For quick and easy connection of two K2 SolidRail XS, UltraLight or Light. Set including screws and nuts.
Rail connector Set SolidRail Medium and Alpin
Product number:
1004109
For quick and easy connection of two K2 SolidRail Medium or Alpin. Set including screws and nuts. Material: Aluminium EN AW-6063 T66 / Stainless steel A2
Universal module end clamp for fixing solar modules with frame heights of 25-37mm. Not compatible with the K2 Dome 6 System.
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Universal End Clamp OneEnd
Product number:
2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm, black anodized
Product number:
2003072
Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal End Clamp OneEnd, black anodized
Product number:
2002589
Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Laminate end clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Laminate middle clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Module laminat End Clamp Click 6.8
Product number:
1000668
Module end clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Module laminat Middle Clamp Click 6.8
Product number:
1000667
Module middle clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
SlideGuard
Product number:
1005828
Slide guard for additional use in vertical assembly of laminated modules with glass thickness of 6 - 9 mm. Material: stainless steel 1.4016, EPDM
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, PA.
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
T-Bolt M10x25 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
T-Bolt M10x30 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
Hexagon Flange nut with serration M10
Product number:
1000042
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
Thread-tapping screw 6x25 mm for non-cutting processing, approved for sheet thicknesses (steel and aluminium) from 0.4 mm to 1.25 mm. With General approval. Certification: abZ (de), ETA (eu), ETN (fr). Material: stainless steel A2, EPDM
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm

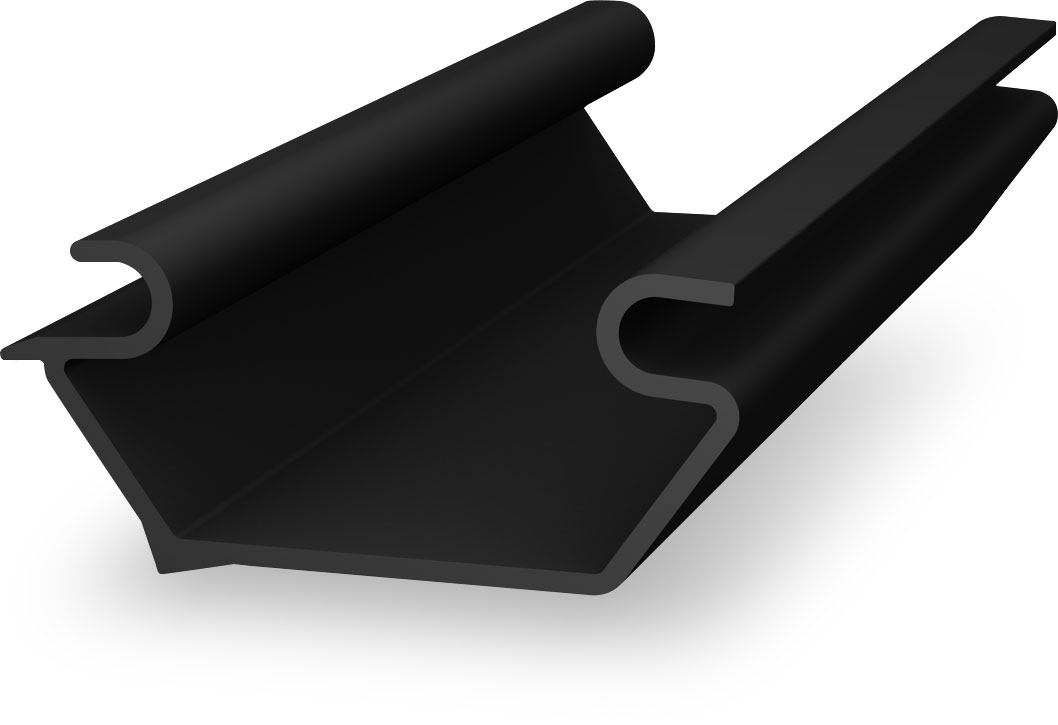

InsertionRail CableClip
Product number:
2002767
Plastic Profilee to hold the DC wiring in the K2 InsertionRail System. Material: polycarbonate
Corrugated Sheet Metal
K2 PV mounting systems with hanger bolts or solar fasteners are suitable for corrugated sheet metal roofings. With the MicroRail System it is also possible to fix directly in the corrugated sheet without drilling in the substructure. The mounting rail families SingleRail and SolidRail are the solution with fixation in the substructure of the roof.
The mounting systems at a glance:
Fixing in the roof covering
Fixation in the substructure
Corrugated Sheet Metal
Corrugated Sheet Metal
Corrugated Sheet Metal
