Standing Seam / Metal Roof Systems
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
SingleRail 36; 4.80 m Black
Product number:
2004396
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 5.95 m. Material: aluminium EN AW-6063 T66
SolidRail Light; 4.80 m Black
Product number:
2004397
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
S-5! E-Mini-FL Standing SeamClamp
Product number:
1001052
S-5! SeamClamp for fastening of K2 SolidRail on double-folded standing seams metal roofs. With socket set screw. With General approval. Material: aluminium

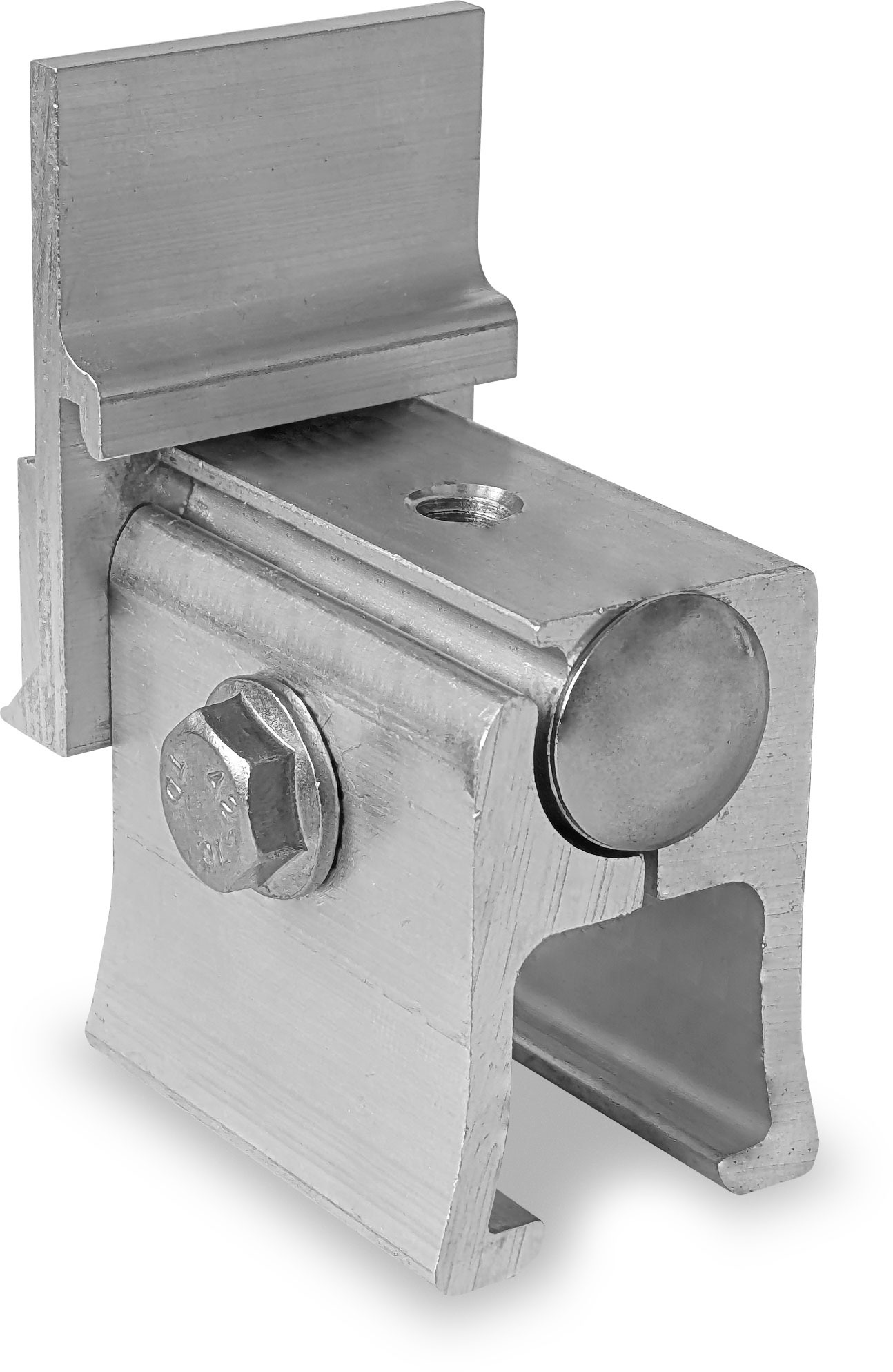

Standing Seam Clamp CF:x SingleRail
Product number:
2003024
Seam clamp for mounting the SingleRail on double folded standing seams made of titanium zinc, aluminum, stainless or galvanized steel. Material: clamp: aluminum, screws: stainless steel A2
Double standing seam clamp SolidRail
Product number:
2001712
Metal seam clamp with round hole for fixing the K2 SolidRail on metal seam roofs with double standing seam. Clamping range: 3,5 mm. Material: stainless steel A2
Round SeamClamp; SolidRail
Product number:
2001853
Metal seam clamp with round hole for fixing the K2 SolidRail on metal seam roofs with round seam. Material: stainless steel A2
Round Seam Clamp CF:x SingleRail
Product number:
2002859
Seam clamp for mounting the SingleRail on various round bulb seams such as Kalzip, Bemo, Aluform or RIB-ROOF Evolution. Material: clamp: aluminum, screws: stainless steel A2
Round Seam Clamp S-5! SolidRail
Product number:
1000888
S-5! SeamClamp for fastening of K2 SolidRail on rounded standing seam metal roofs. Two-part-construction with fitting part. With socket set screw. With General approval. Material: aluminium
Snap Seam Clamp CF:x SolidRail
Product number:
2003082
Seam clamp for fixing the K2 SolidRail on seam roofs with angled seam or snap seam. Article K2 Adapter plate M10 (2002544) is required for rail mounting. Material: Clamp: Aluminium; Screws: Stainless steel A2
Snap Seam Clamp CF:x SingleRail
Product number:
2003083
Seam Clamp for SingleRail mounting on angled seam and snap seam Profilees. Material: clamp: aluminium, screws: stainless steel A2
Round Seam Clamp RibRoofEvolution
Product number:
2002226
Solar bracket for fixing the K2 SolidRail for Zambelli Rib-Roof Evolution metal roof systems with round seam. Diameter: 23 mm. Material: Aluminium EN AW-6063 T66
Standing Seam Clamp RibRoofSpeed500
Product number:
2002225
Solar bracket for fixing the K2 SolidRail to Zambelli Rib-Roof Speed 500 metal roof systems with standing seam. Opening dimension: 17 mm. Material: Aluminium EN AW-6063 T66
Standing Seam Clamp RibRoof465
Product number:
2002118
Solar bracket for mounting the K2 SolidRail on Zambelli RIB-Roof 465 metal roof systems with standing seam. Opening dimension: 12 mm. Material: Aluminium EN AW-6063 T66
Universal KL-Clamp
Product number:
2004124
K2 sheet metal seam clamp for Klip-Lok 700 Hi-strength® and Klip-Lok Optima® 700 (Lysaght ™) sheet metal roofing; KingKlip® 700 (Fielders®); Klip-Lok® 406 (Lysaght ™). With direct connection option for K2 module clamps. Material: Aluminium EN AW 6063-T66
Inlay for seam clamp
Product number:
2001640
Stainless steel inlay for aluminium seam-clamps. Use on copper double folded standing seam metal roofs. The inlay avoids electrochemical corrosion between copper roof and aluminium clamp. Material: stainless steel V2A
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 CrossConnector Black
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
Rail connector Set SingleRail 36
Product number:
2001976
Rail connector set as connecting element between two K2 SingleRails 36. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
Rail connector Set SolidRail Ultra Light and Light
Product number:
1004107
For quick and easy connection of two K2 SolidRail XS, UltraLight or Light. Set including screws and nuts.
Universal module end clamp for fixing solar modules with frame heights of 25-37mm. Not compatible with the K2 Dome 6 System.
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.
Universal module end clamp for fixing solar modules with frame heights of 30-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2
Universal End Clamp OneEnd
Product number:
2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm, black anodized
Product number:
2003072
Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal End Clamp OneEnd, black anodized
Product number:
2002589
Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Laminate end clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Laminate middle clamp Click 5.0 approved for modules from SoliTek/ViaSolis, S-Energy, Sonnenstromfabrik / CS Wismar and for modules with a glass thickness of 5.0-6.2 mm. Length: 100 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium EN AW 6063-T66; EPDM
Module laminat End Clamp Click 6.8
Product number:
1000668
Module end clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Module laminat Middle Clamp Click 6.8
Product number:
1000667
Module middle clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
SlideGuard
Product number:
1005828
Slide guard for additional use in vertical assembly of laminated modules with glass thickness of 6 - 9 mm. Material: stainless steel 1.4016, EPDM
BlackCover SingleRail 36
Product number:
2003523
K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.
T-Bolt M10x25 for insertion into the bottom chamber of K2 SolidRail. It can be inserted at any position and can be moved later if necessary. Head form: 28/15. Head dimensions: 22.5x10.5x4 mm. Thread of screw: M10x25. Material: stainlesteel A2 (1.4301)
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
Hexagon Flange nut with serration M10
Product number:
1000042
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
External cable clip OMEGA D for solar cables
Product number:
1005394
External cable clip of solar cables for cables extending beyond K2 rails. Fixation in the C-chamber of the Profilee. Material: Polypropylen with UV stabiliser, black
PVX Minimount rail
Product number:
2003387
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
EndCap for SolidRail Light
Product number:
1004765
K2 End Cap for K2 SolidRail Light 37. Material: glass fibre reinforced polyamid
EndCap for SingleRail 36
Product number:
1004767
K2 End Cap for K2 SingleRail 36, SingleRail 36 ight and CrossRail 36. Material: glass fibre reinforced polyamid
EndCap for SolidRail Medium
Product number:
1004766
K2 End Cap for K2 SolidRail Medium 42. Material: glass fibre reinforced polyamid
EndCap for SolidRail Alpin
Product number:
1005053
K2 End Cap for K2 SolidRail Alpin 60. Material: glass fibre reinforced polyamid
AddOn 30
Product number:
2001707
The K2 AddOn 30 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 30-34 mm. Fits most K2 SolidRails, CrossRails, SingleRails and
BasicRail
. Not suitable for CrossRail 62 & 90 and SolidRail Alpin & XL. Material: glass fibre reinforced polyamide
AddOn 22/25
Product number:
1005530
The K2 AddOn 22 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 35-50 mm. Fits all K2 SolidRails, CrossRails, SingleRails and BasicRails. Material: glass fibre reinforced polyamide
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
Standing Seam / Metal Roof Systems
K2 mounting systems for standing seam roofs are suitable for standing seams and round seams. This system is non-penetrative and fixed with seam clamps. Clamps are available for different types of seams and manufacturers such as Kalzip or Rib-Roof.
