K2 WallPV FacadeRail
FacadeRail; 4.00 m
Product number:
2004310
The K2 FacadeRail is securely fixed to a solid masonry or concrete facade in conjunction with the special Facade Console. Manufactured from EN AW 6063 T66 aluminium for maximum durability and reliability. Length: 4.00 metres.
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x80 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 40 mm and is suitable for both pitched roof and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised
InsertionRail 2.0 - 30; 5.70 m
Product number:
2004339
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x55 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
The Facade bracket is a versatile wall bracket which, in combination with the K2 FacadeRail, provides a secure substructure for the PV system on the building facade. The bracket is suitable for both insulated and non-insulated facades with a concrete or masonry anchoring base. Product dimensions (lxwxh): 80x53x155 mm. Material: Aluminium EN AW 6063 T66 and polypropylene. Manufacturer: Hilti
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 CrossConnector Black
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW-6063 T66, black anodised. Anodised finish may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2,85 m
Product number:
2004680
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 RailConnector
Product number:
2004355
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66
InsertionRail 2.0 RailConnector Black
Product number:
2004322
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66, black anodised. The anodised finish may show slight signs of scratching due to packaging and transport.
Thread-forming metal screw 5.5x25
Product number:
2005033
Thread-forming hexagon head sheet metal screw 5.5x25 mm. Fastening of the CarrierRail on thin-walled metal profiles for PV systems, for chipless processing, approved for sheet steel from 0.4 mm and for aluminium from 0.5 mm to 1.25 mm thick. With building authority approval. Material: A2 stainless steel, EPDM
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
Hilti screw anchor HUS4-HR 8x75 25/15
Product number:
2004531
The Hilti HUS4-HR screw anchor, designed for fast and cost-effective fixings in concrete, serves as a solid base for mounting the bracket to the wall. The screw anchor is made of stainless steel and has approval for fire protection (fire resistance), ETA (EAD 330232) and seismic approval category C1. Perfect for push-through installation and suitable for use in corrosive areas. Material: Stainless steel
The pre-assembled plastic plug with HRD-H screw from Hilti is designed for quick and cost-effective fastening in concrete and masonry and serves as a solid base for mounting the bracket on the wall. The anchor is made of plastic and the screw is made of stainless steel. It is approved for fire protection (fire resistance) and ETA. Flexible anchoring depth (approved for 50 mm and 70 mm) Material: stainless steel, plastic
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
InsertionRail 2.0 EndStop
Product number:
2004372
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66, stainless steel
InsertionRail 2.0 EndStop Black
Product number:
2004373
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66 black anodised, stainless steel. Eloxal may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 FixStop
Product number:
2004370
The FixStop 2.0 ensures that the InsertionRail 2.0 is reliably fixed to the CrossConnector 2.0 to prevent it from being pushed out. The FixStop 2.0 is supplied pre-assembled with an M8x8 hexagon socket grub screw for quick and easy installation. Material: Aluminium EN AW-6063 T66, stainless steel
ModuleSafety
Product number:
2004290
The K2 ModuleSafety is specially designed for use with the K2 InsertionRail in combination with the WallPV system. It acts as a spacer between two modules and ensures that the required distance between them is maintained. Material: EPDM Shore A 70
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
TerraGrif K2U17 Portrait
Product number:
2000056
The mounting accessory enables potential equalisation of the K2 mounting systems or earthing of the module frames. The TerraGrif K217 can be easily attached to the underside of the module frame and is compatible with almost every module type. The material is 301 TA stainless steel and can be placed in the area of the adjacent elevation or mounting system components.
Rail AntiSlip Clip
Product number:
2004289
The WallPV FallProtection, compatible with the K2 MultiRail and FacadeRail, provides additional safety for the WallPV system. The Rail FallProtection is attached below the lower CrossConnector or the lower clamp to prevent slipping. It is attached using a 5.5x19 screw (2004432). Material: Aluminium EN AW 6063 T66
K2 WallPV FacadeRail hand sample
Product number:
2004466
Exhibit of
the K2 WallPV FacadeRail consisting of: Console
MFT-FOX VI 80 M, FacadeRail, Rail AntiSlip, InsertionRail 2.0 - 30,
InsertionRail 2.0 Cover 30, FixStop, EndStop, CrossConnector, ModuleSafety,
Self-Tapping metal screw 5.5x19
K2 WallPV FacadeRail
The FacadeRail system offers the most flexible solution for facades made of solid masonry or concrete.
- Flexible mounting system with wall brackets for connection to the facade
- Solid masonry or concrete: many approved brackets compatible
- Combination with curtain walls and ETICS – rear ventilation and thermal insulation
K2 WallPV FacadeRail

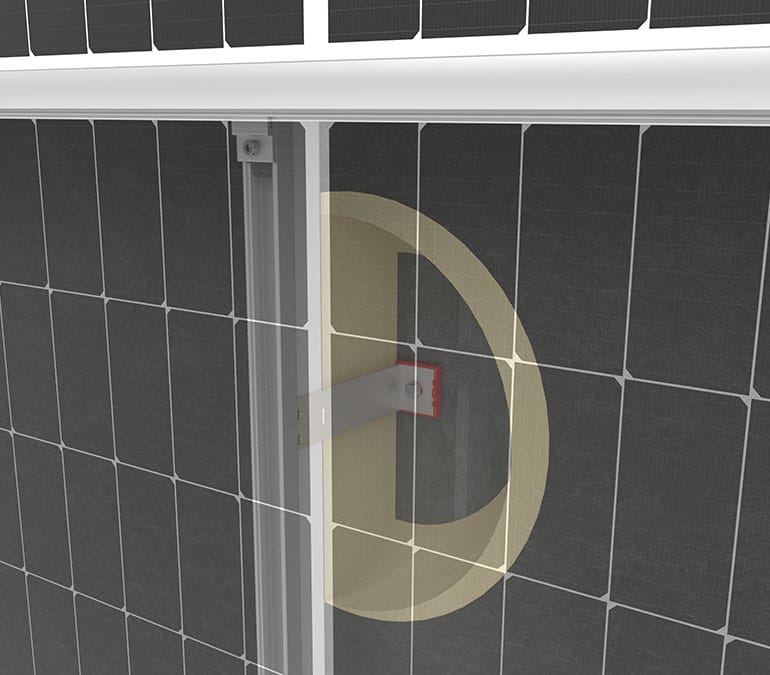

The FacadeRail components are designed for combination with curtain-type, rear-ventilated facades.

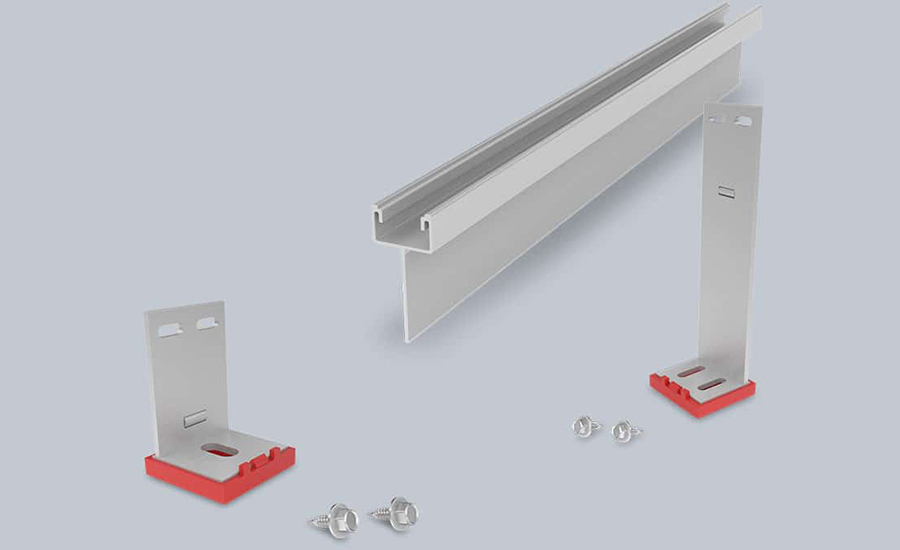

The support rail can be mounted with brackets from various manufacturers on solid masonry or concrete, e.g. Hilti or Ejot. Thus, the combination with other façade systems is possible and the thermal insulation composite system can be concealed in the same way. The adapter leg of the FacadeRail offers an additional adjustment range for rear ventilation.
The FacadeRail adapter is designed for the most common façade brackets and offers a wide range of applications.
Many commercially available consoles are suitable for the connection and thus enable the combination with curtain-type, rear-ventilated façade panels. The PV modules are mounted according to a similar principle to the panels and fit seamlessly into the facade as a photovoltaic system.
Silver or black InsertionRails provide an attractive overall appearance and stiffen the system.
The PV modules can be installed quickly and securely on the façade with the InsertionRail. Despite the largely closed surface, enough gaps remain for rear ventilation.
K2 WallPV FacadeRail
| FacadeRail | |
|---|---|
| SCOPE OF APPLICATION | Facade |
| FASTENING TYPE / ROOF FIXTURE | Concrete and masonry with and without external thermal insulation composite system (ETICS) |
| Thermal separations |
|
| Minimum distance | None to consider. |
| angle of inclination | Parallel to the facade |
