K2 Dome 6 System
D-Dome 6.15 Base Set
Product number:
2004500
Pre-assembled base rail set for the D-Dome 6.15 system for module widths of 960-1170 mm. Including BasicRail 2.48 m, Dome SD, EndPlate and Mat S. Material: aluminium, EPDM, stainless steel
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Pre-assembled basic rail set for the S-Dome 6.10 system for module widths of 1061-1170 mm. Includes
BasicRail
1.50 m, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel

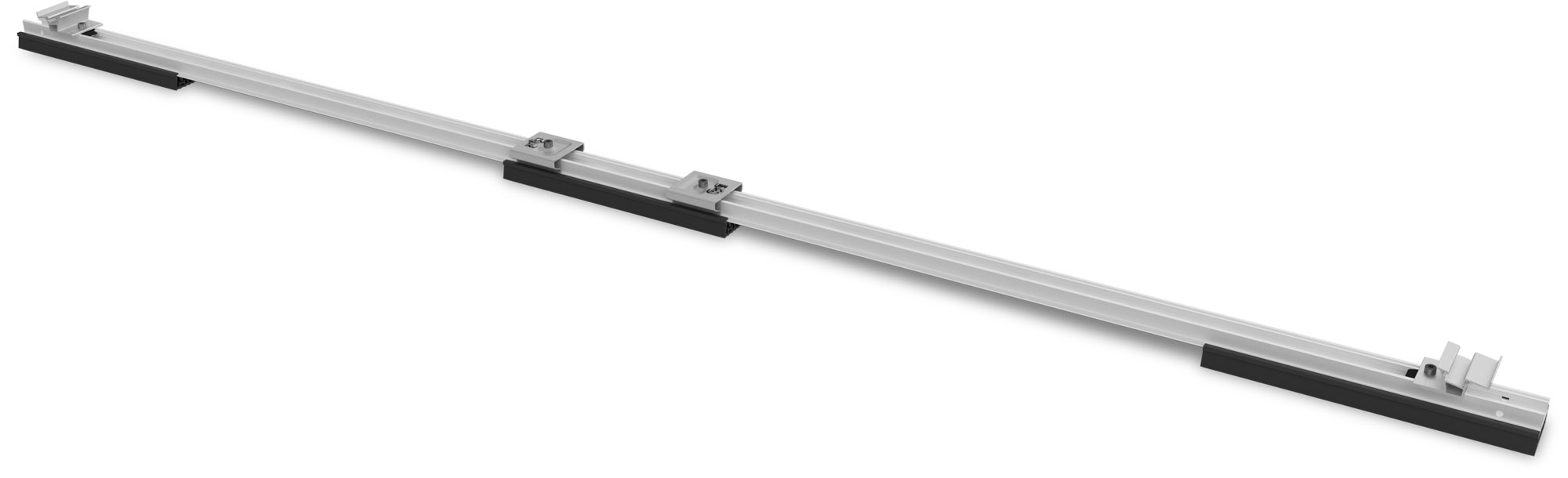

Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 1061-1170 mm. Includes
BasicRail
2.48 m, Dome SD, MidPlate and Mat S. Material: Aluminium, EPDM, stainless steel

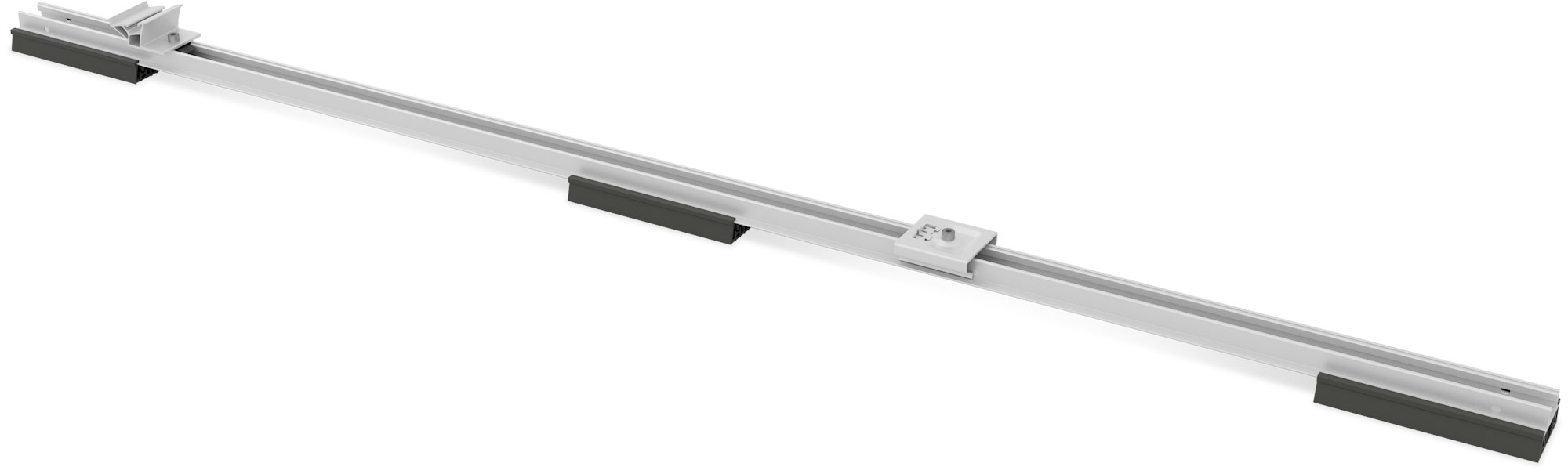

S-Dome 6.15 Base Set L
Product number:
2004176
Pre-assembled basic rail set for the S-Dome 6.15 system for module widths of 1061-1170 mm. Includes
BasicRail
, Dome SD, EndPlate and Mat S. Material: Aluminium, EPDM, stainless steel
K2 Buddy - Dome Profile Set 30 mm
Product number:
2004547
Mounting rail set for K2 Buddy installation. This set contains two BasicRail rails with a length of 1.30 m as well as a stiffening profile for mounting on the module frame with a length of 1.30 m. The two additional BasicRail mounting rails are essential for mounting the K2 Buddy. The stiffening profile is designed to stabilise and reinforce the frame construction.
K2 Buddy - Dome Profile Set
Product number:
2003448
Mounting rail set for K2 Buddy mounting. This set contains two BasicRail rails with a length of 1.30 m and two square profiles, also 1.30 m long. The two additional BasicRail mounting rails are essential for mounting the K2 Buddy. The square profiles are designed to stabilize and reinforce the frame construction.
K2 Buddy - BaseBox Set
Product number:
1000097
The K2 Buddy - BaseBox Set consists of a top-hat rail housing with integrated circuit board and a top-hat rail power supply unit. It is installed in the connection room of the building services, protected from the weather. The BaseBox monitors the measurement data of the TopBox on the roof at regular intervals (every 10 minutes) and transmits it to the cloud via the house Internet connection. It also monitors the power supply to the TopBox and switches it off in the event of a fault to ensure smooth operation. The following additional sets are required to install the K2 Buddy in combination with the Dome 6 system:1000003 K2 Buddy - TopBox Set Snow2003448 K2 Buddy - Dome Profile Set2003603 K2 Buddy - Dome accessories Set
K2 Buddy - Dome accessories Set
Product number:
2003603
The Dome Accessories Set offers all the necessary accessories and small parts to safely install the TopBox Set Snow in the K2 Dome flat roof systems. Among other things, it includes an aluminum plate that supports the snow sensor units and securely connects the BasicRails. In addition, it contains specific module stops for precise measurement data acquisition as well as lift-off protection and cable managers to ensure a reliable installation. To install the K2 Buddy in combination with the Dome 6 system, the following additional sets are required: 1000003 K2 Buddy - TopBox Set Snow 1000097 K2 Buddy - BaseBox Set 2003448 K2 Buddy - Dome Profile Set
K2 Buddy - TopBox Set Snow
Product number:
1000003
The K2 Buddy - TopBox Set Snow contains two snow sensor units that precisely measure the snow load on a PV module. These sensors are installed with the Dome 6 system using components from the Dome Accessories Set and are permanently connected to the TopBox (plastic housing with encapsulated circuit board) by cable. The snow sensors are positioned on the left and right below the bottom corners of a PV module. The TopBox evaluates the measured values and transmits them by cable to the K2 Buddy - BaseBox in the building services. The power supply (24 V) is also provided via the same cable. The following additional sets are required to install the K2 Buddy in combination with the Dome 6 system: 1000097 K2 Buddy - BaseBox Set 2003448 K2 Buddy - Dome Profile Set 2003603 K2 Buddy - Dome Accessories Set
Dome Mat S 380
Product number:
2003126
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2
BasicRail. Material: EPDM
Rail connector set as connecting element between two K2 Dome 6 Base Set. Including accessories and equipotential bonding. Material: Aluminium, stainless steel
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22 or FlatRail. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2.
Dome 6.15 Peak
Product number:
2004174
Component for the module elevation of the Dome 6.15 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the BasicRail with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Dome 6.10 SD
Product number:
2003243
Front module support element for the Dome 6.10 system. Material: aluminium
Dome 6.10 Peak
Product number:
2004125
Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the
BasicRail
with a socket head bolt and MK2. Material: Aluminium EN AW-6063 T66
Dome 6.15 SD
Product number:
2004175
Front module support element for the Dome 6.15 system. Material: aluminium
DomeClamp Middle Clamp 30-50 mm, black anodized, with TerraGrif
Product number:
2005037
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System incl. TerraGrif K2MI Duo. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
K2 TerraGrif K2MI Duo 18
Product number:
2003542
Mounting accessories for DomeClamp Moduleclamp establishing equipotential bonding of the K2 Dome 6 mounting system or for earthing the module frames.
DomeClamp End Clamp 30-50 mm
Product number:
2002559
Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm
Product number:
2002558
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm, black anodized
Product number:
2002609
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
DomeClamp End Clamp 30-50 mm, black anodized
Product number:
2002610
Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
S-Dome 6.10 Windbreaker LS
Product number:
2004167
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.10 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.15 System. Suitable for module lengths 1799 mm - 2150 mm. Material: Steel with Magnelis ZM310 coating
S-Dome 6.15 Windbreaker LS
Product number:
2004183
K2 Windbreaker to deflect wind on the backs of the K2 S-Dome 6.15 Classic LS system. Suitable for module dimensions from 1562 - 2390 mm. Material: Magnelis 1.0242 (S250GD+ZM310)
K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System. Suitable for module dimensions from 2045 mm - 2398 mm. Material: Steel with Magnelis ZM310 coating
Ballast tray for a fast and universal bearing of different ballasts slabs. Used for K2 Dome 6 systems. Suitable for module lengths from 2048– 2405 mm. Total length Porter: 2450 mm; Maximum permissible ballast: 148 kg. Material: Aluminium EN AW 6063 T66
Dome SpeedPorter
Product number:
2002300
For ballast mounting for the K2 Dome 6 Classic flat roof system. Place two SpeedPorters at a distance from each other, depending on the size of the bricks, on the
BasicRail and place ballast (up to approx. 40 kg) on them. Material: aluminium
Dome Porter Flex
Product number:
2004157
Ballast tray for a fast and universal bearing of different ballasts slabs for the K2 Dome Zero System and K2 Dome 6 Classic LS System. The Porter can be used for module widths up to 1320 mm for the Dome Zero System and for module lengths from 1562 to 2390 mm for the Dome 6 Classic LS System. Total length Porter: 1365 mm; Maximum permissible ballast: 178 kg. Material: aluminum EN AW 6063 T66
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, PA.
MK2 Slot nut with clip, Aluminum
Product number:
2000034
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: Aluminium, PA. * excluding MiniRail, MicroRail, Dome 6 and Dome V Peak
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Self-tapping screw with sealing washer, 6x25
Product number:
1000212
Self-tapping screw 6.0x25 with monuted sealing washer(Ø16 mm). Approved for sheet steel from 0.5 mm and for aluminium from 0.8 mm. With building approval and ETA certification. Material: stainless steel A2, EPDM
Self-tapping screw 4.8x20
Product number:
2003427
Thread-tapping screw 4.8x20 mm for S-Dome 6 Windbreaker mounting.
Multi Monti - fastner 7.5x40/5
Product number:
2002570
Concrete screw anchor MULTI-MONTI-plus MS 7,5x40 with flange head is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material. Material: carbon steel bright zinc plated, A2K
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
PVX Multimount
Product number:
2003137
The UV-resistant PVX Multimount provides a multifunctional cable management system for mesh tray and/or pipes on flat roofs and is made from 80% recycled plastic. Mesh tray and/or pipes are not included. Material: PE and ASA
Flatroof cable routing Performa Mesh Tray 70x100x3000
Product number:
2004054
Performa mesh tray for cable management on the flat roof. Compatible with the PVX Multimount (2003137). Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Performa Mesh Tray Connector
Product number:
2004055
Performa mesh tray connector for article 2004054. Two connectors are required per mesh tray. Dimensions (LxWxH): 86 x 30 x 10 mm. Material: spring steel (zinc)
Dome FixPro S
Product number:
2003384
Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths 828 - 1325 mm. Material: aluminium, stainless steel, PA
Dome FixPro L
Product number:
2004144
Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths 1617 - 2392 mm. Material: aluminium, stainless steel, PA
K2 Climber with slotted hole for fixing the K2 SingleRail or CrossRail mounting rail to the M12 hanger bolt or as a connecting element between the flat roof mounting foot and the Dome FixPro. Material: Aluminium EN AW-6063 T66
Adapter plate for M10 hanger bolts in combination with the Climber M10 or as accessory part for the article Dome FixPro. Dimensions: 50x90. Material: aluminium
Dome Speed Spacer Large
Product number:
2004129
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction
Product number:
2002620
Test weight for measuring the coefficient of friction on a roof.
K2 Polyethylene base plate, used as base for installation of K2 solar mounting systems on flatroofs with gravel. Dimensions: 600x800 mm. Material: Polyethylene
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel

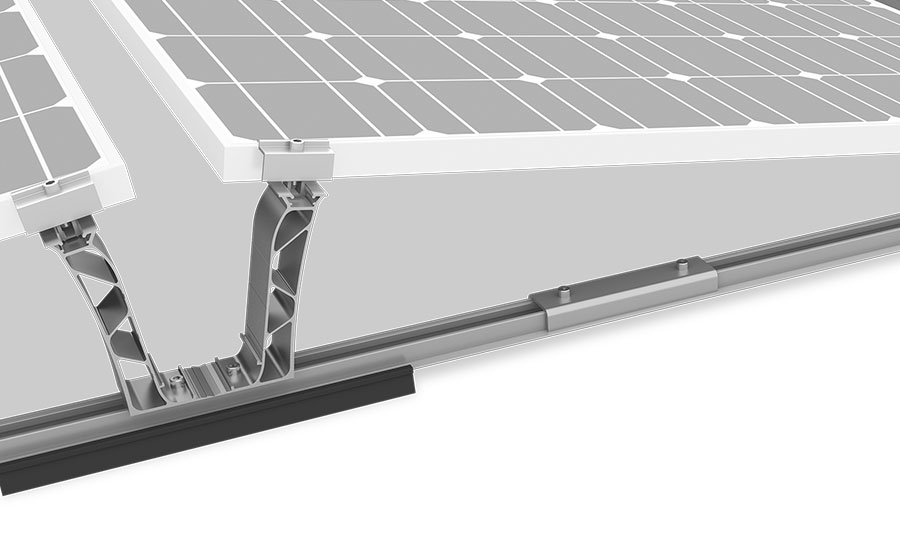

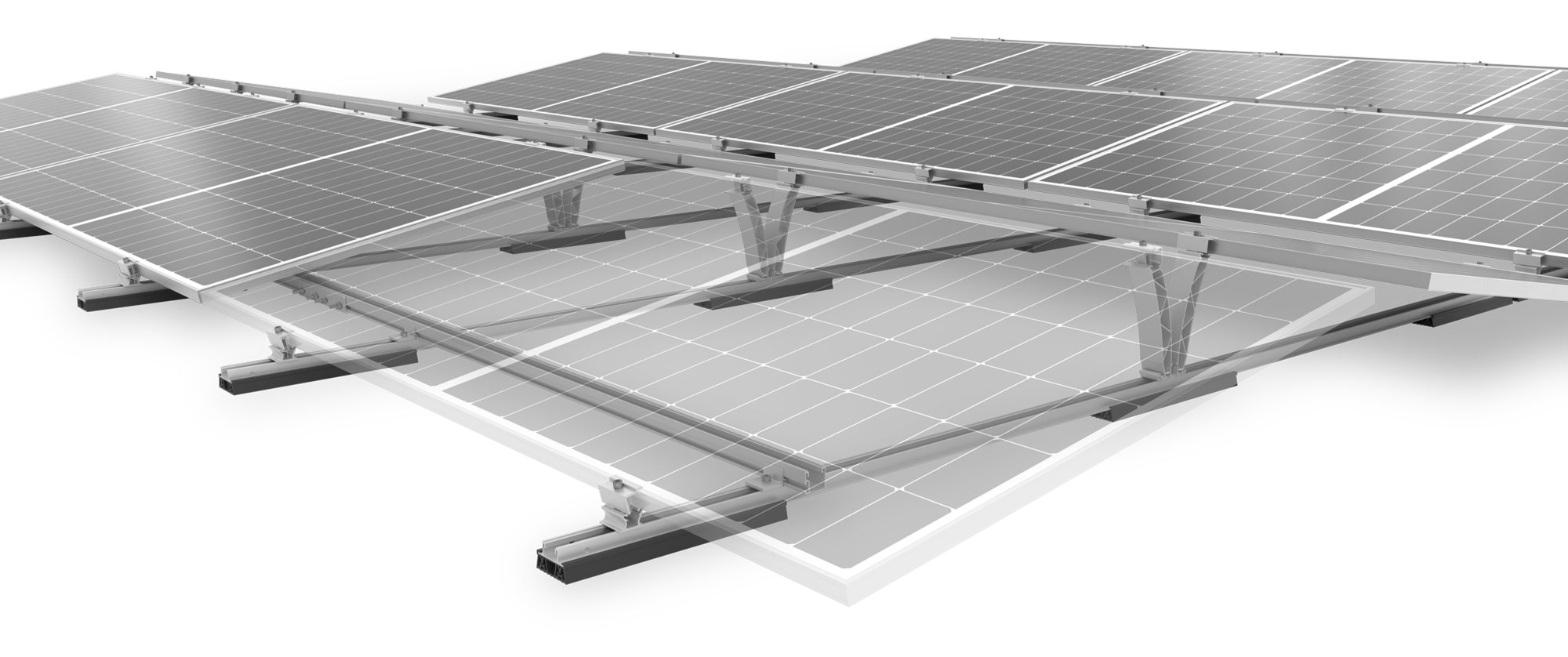

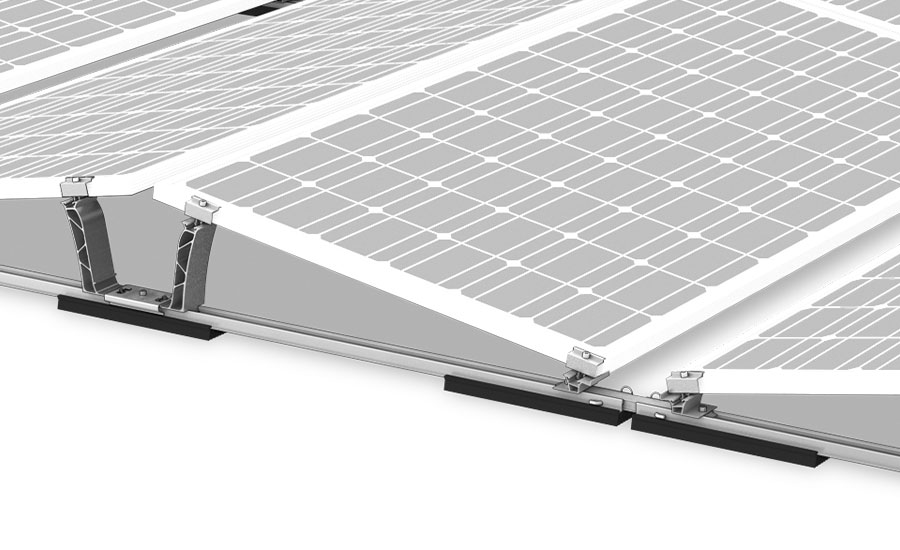

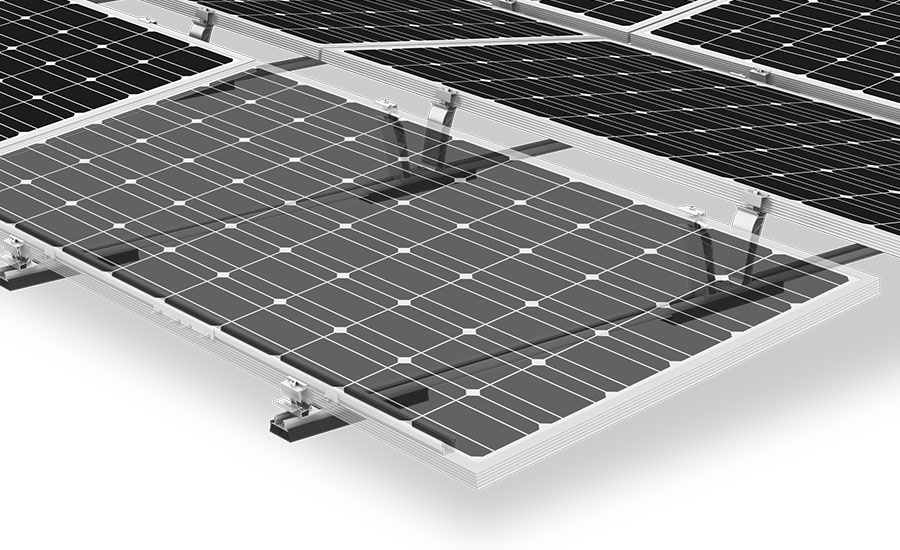

K2 Dome 6 System
Solutions for all roof coverings. Clearly ballast-optimised system based on the latest wind tunnel standards.
- Flat roof all-rounder - solutions for all roof coverings
- Clearly ballast-optimised system based on the latest wind tunnel standards
- Secure anchoring with fixed connection for roofs < 10° and low load reserves
- Component-optimised system
K2 Dome 6 System
System variant
- 4 assembly steps for super-fast installation
- Time-saving alignment of the rails with the Dome Speed Spacer gauge
- Snap-in system for peaks and tool-free rail connectors
- Flexible row spacing
- Suitable for foil, bitumen, gravel and green roofs
- Suitable for additional elevation on trapezoidal sheeting
- For mounting on the long module side
- For module sizes up to 2390 × 1170 mm
- Based on Dome 6 Classic
K2 Dome 6 System
Technical data
| D-Dome 6.10 | S-Dome 6.10 | |
|---|---|---|
| Scope of application | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs | Flat roofs < 10° with single ply membrane or bituminous roof covering, also on concrete, gravelled or green roofs |
| Fastening type/roof fixture |
|
|
| Requirements |
|
|
| Technical specifications Base rail |
|
|
| Technical specifications Module row |
|
|
| Minimum distance to the edge of the roof | 600 mm | 600 mm |
| Inclination angle | 10° | 10° |
| Material |
|
|

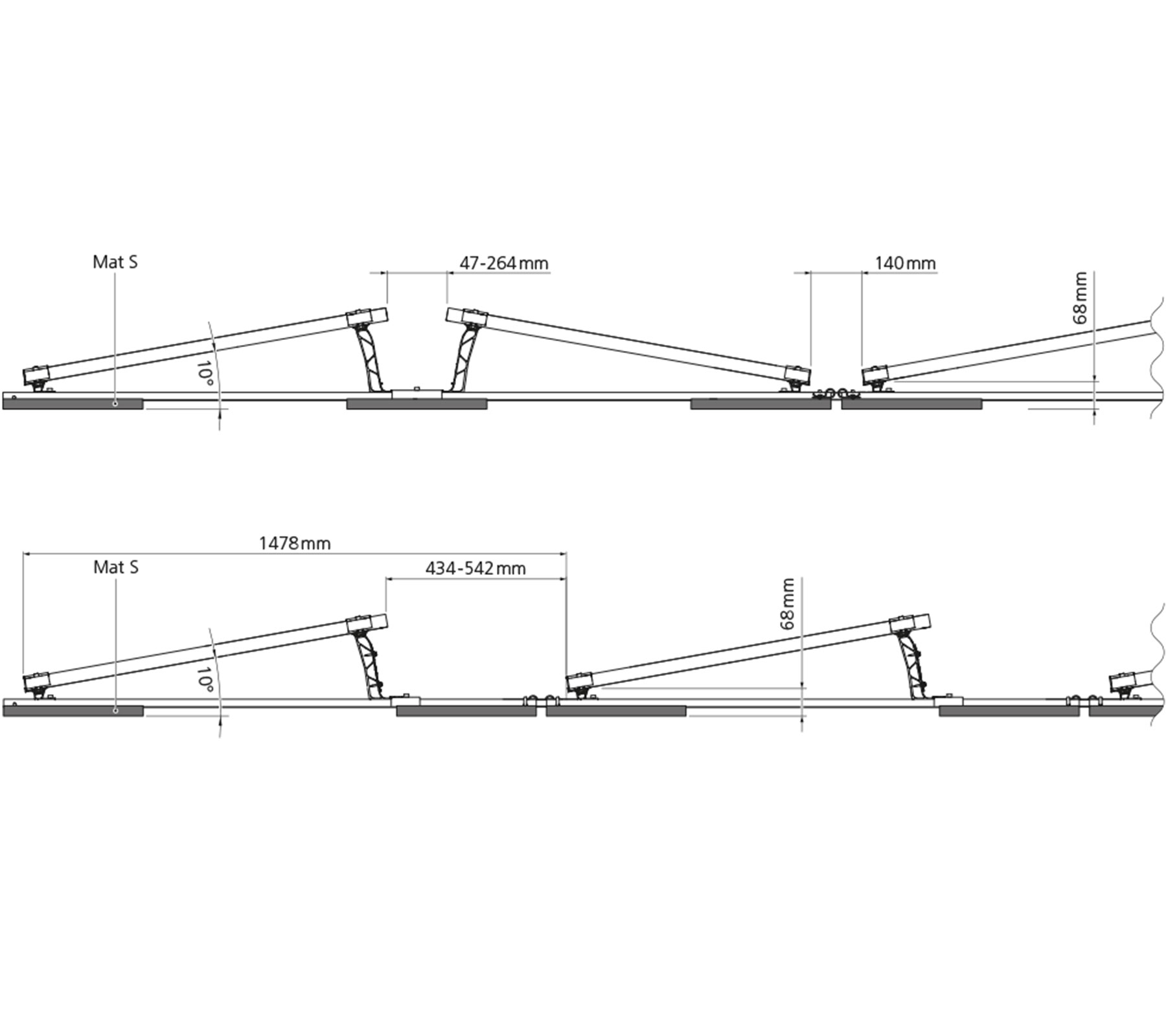

Side views
K2 Dome 6 System
Downloads
abZ Dome 6 / Dome Zero (Z-14.4-916)
D-Dome 6.10 L Xpress
D-Dome 6.10 Classic
D-Dome 6.10 Classic on PE-Plate
D-Dome 6.10 Classic on trapeze
D-Dome 6.10 Classic with RailUp
D-Dome 6.10 Classic on concrete block
D-Dome 6.10 Classic LS
D-Dome 6.10 Classic LS on PE-Plate
D-Dome 6.10 Classic LS on trapeze
D-Dome 6.10 Classic LS with RailUp
D-Dome 6.10 Classic LS on concrete block
S-Dome 6.10 Xpress
S-Dome 6.10 L Xpress
S-Dome 6.10 Classic
S-Dome 6.10 Classic on PE-Plate
S-Dome 6.10 Classic on trapeze
S-Dome 6.10 Classic with RailUp
S-Dome 6.10 Classic on concrete block
S-Dome 6.10 Classic LS
S-Dome 6.10 Classic LS on PE-Plate
S-Dome 6.10 Classic LS on trapeze
S-Dome 6.10 Classic LS on MultiRail
S-Dome 6.10 Classic LS with RailUp
S-Dome 6.10 Classic LS on concrete block
S-Dome 6.15 L Xpress
S-Dome 6.15 Classic
S-Dome 6.15 Classic on PE-Plate
S-Dome 6.15 Classic on trapeze
S-Dome 6.15 Classic on concrete block
S-Dome 6.15 Classic LS
S-Dome 6.15 Classic LS on PE-Plate
S-Dome 6.15 Classic LS on trapeze
S-Dome 6.15 Classic LS on MultiRail
S-Dome 6.15 Classic LS on concrete block
D-Dome 6 mit K2 Buddy
Tender specification - K2 S-Dome 6.10
Tender specification - K2 S-Dome 6.15
Tender specification - K2 D-Dome 6.15
Tender specification - BasicRail with S-Dome 6 on Trapezoidal metal sheet
Tender specification - BasicRail with D-Dome 6 on Trapezoidal metal sheet
Tender specification - MultiRail with S-Dome 6 on Trapezoidal metal sheet
