K2 WallPV CarrierRail
InsertionRail 2.0 - 40; 5.70 m Black
Product number:
2004335
Die InsertionRail 2.0 ist ideal für die Montage von Solarmodulen mit 40 mm Rahmenhöhe und eignet sich sowohl für die Schrägdach-Montage, als auch für die Fassaden-Montage. Mit dem unkomplizierten Einsatz des CrossConnectors 2.0 lässt sie sich problemlos an jede K2 Montageschiene montieren. Zusätzlich ermöglicht sie die direkte Integration in den BasicClip, ähnlich der Funktionalität der BasicRail. Diese vielseitige Einlegeschiene macht die Installation noch effizienter und anpassungsfähiger. Material: Aluminium EN AW 6063 T66, schwarz eloxiert
CarrierRail; 2.97 m
Product number:
2001014

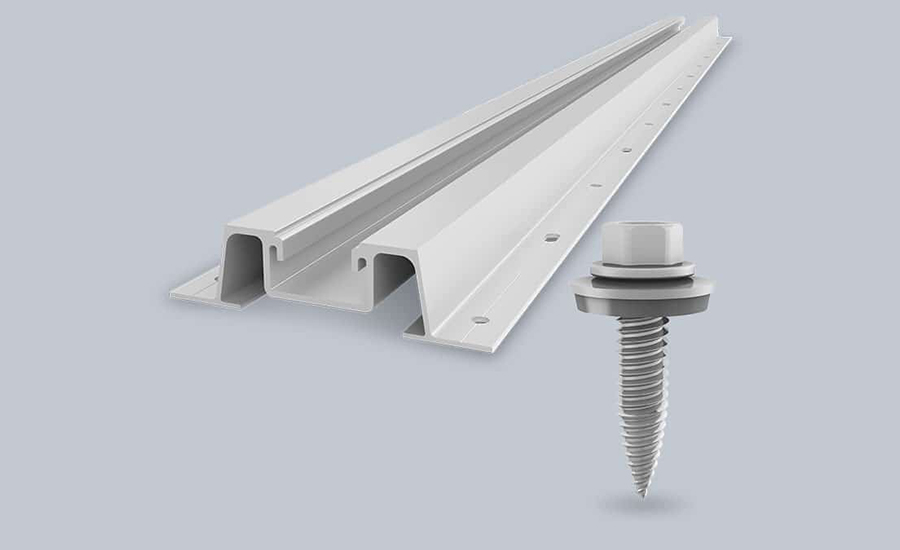

The K2 CarrierRail is used as a base rail for façade installation on sandwich wall elements. Made from EN AW 6063 T66 aluminium for maximum durability and reliability
InsertionRail 2.0 - 30; 5.70 m Black
Product number:
2004316
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66, black anodised
InsertionRail 2.0 - 30; 5.70 m
Product number:
2004339
The InsertionRail 2.0 is ideal for mounting solar modules with a frame height of 30 mm and is suitable for both pitched roof mounting and façade mounting. With the uncomplicated use of the CrossConnector 2.0, it can be easily mounted on any K2 mounting rail. It also enables direct integration into the BasicClip, similar to the functionality of the BasicRail. This versatile insertion rail makes installation even more efficient and customisable. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 CrossConnector
Product number:
2004374
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail, including the CrossConnector, can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66; stainless steel 1.4301; A2-70
InsertionRail 2.0 CrossConnector Black
Product number:
2004375
The CrossConnector 2.0 set makes it easy to attach the InsertionRail 2.0 to any K2 mounting rail. The screws are located outside the mounted InsertionRail, which offers the advantage that the rail including the CrossConnector can still be moved vertically on the rail after mounting. All accessories required for installation are included in this set. Material: Aluminium EN-AW 6060 T66 black anodised; stainless steel 1.4301; A2-70. Anodising may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2,85 m Black
Product number:
2004665
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW-6063 T66, black anodised. Anodised finish may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 Cover 30; 2,85 m
Product number:
2004680
The InsertionRail 2.0 Cover 30 acts as a horizontal cover for the InsertionRail 2.0 for 30 mm frame heights and is clicked onto the mounting rail at both the top and bottom end of the module block. This rail cover prevents the accumulation of dirt or water in the insertion rails and at the same time contributes to an aesthetically pleasing overall appearance. Material: Aluminium EN AW 6063 T66
InsertionRail 2.0 RailConnector
Product number:
2004355
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66
InsertionRail 2.0 RailConnector Black
Product number:
2004322
The InsertionRail 2.0 RailConnector enables two K2 InsertionRails 2.0 to be connected quickly and easily. The connector is simply pushed into two InsertionRails 2.0 without additional accessories to create a stable connection between the two mounting rails. Material: Aluminium EN AW-6063 T66, black anodised. The anodised finish may show slight signs of scratching due to packaging and transport.
Thread-forming metal screw 5.5x25
Product number:
2005033
Thread-forming hexagon head sheet metal screw 5.5x25 mm. Fastening of the CarrierRail on thin-walled metal profiles for PV systems, for chipless processing, approved for sheet steel from 0.4 mm and for aluminium from 0.5 mm to 1.25 mm thick. With building authority approval. Material: A2 stainless steel, EPDM
Self-tapping metal screw 5.5x19
Product number:
2004432
The 5.5 x19 self-tapping screw is specially designed for aluminium façade fastenings (up to 4 mm) and ensures a reliable fastening solution. This screw is used to fix the articles 2004288 - CarrierRail AntiSlip Plate and 2004289 - Rail AntiSlip Clip. Material: A4 stainless steel. Manufacturer: Hilti.
InsertionRail 2.0 EndStop
Product number:
2004372
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66, stainless steel
InsertionRail 2.0 EndStop Black
Product number:
2004373
The EndStop 2.0 is an end bracket for the K2 InsertionRail 2.0, which is supplied with a pre-assembled M8x8 hexagon socket set screw. The end bracket not only provides an aesthetic finish to the rail, but also acts as a lateral safety device for the inserted modules to prevent them from slipping. Material: Aluminium EN AW-6063 T66 black anodised, stainless steel. Eloxal may show slight signs of scratching due to packaging and transport.
InsertionRail 2.0 FixStop
Product number:
2004370
The FixStop 2.0 ensures that the InsertionRail 2.0 is reliably fixed to the CrossConnector 2.0 to prevent it from being pushed out. The FixStop 2.0 is supplied pre-assembled with an M8x8 hexagon socket grub screw for quick and easy installation. Material: Aluminium EN AW-6063 T66, stainless steel
ModuleSafety
Product number:
2004290
The K2 ModuleSafety is specially designed for use with the K2 InsertionRail in combination with the WallPV system. It acts as a spacer between two modules and ensures that the required distance between them is maintained. Material: EPDM Shore A 70
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
TerraGrif K2U17 Portrait
Product number:
2000056
The mounting accessory enables potential equalisation of the K2 mounting systems or earthing of the module frames. The TerraGrif K217 can be easily attached to the underside of the module frame and is compatible with almost every module type. The material is 301 TA stainless steel and can be placed in the area of the adjacent elevation or mounting system components.
CarrierRail AntiSlip Plate
Product number:
2004288
The anti-slip device is compatible with the CarrierRail. This provides additional safety for the WallPV system. The anti-slip device is attached below the lower CrossConnector or the lower module support to prevent slipping. It is fastened with two 5.5x19 screws (2004432). Material: Aluminium EN AW 6063 T66
CarrierRail EPDM; 20m
Product number:
2001015
A thick, single-sided, self-adhesive PE separating tape must be applied to the entire underside of the CarrierRail (2001014). It has a thickness of 3 mm
K2 hand sample WallPV CarrierRail
Product number:
2004467
Exhibit of the K2 WallPV CarrierRail consisting of: CarrierRail
- CarrierRail EPDM InsertionRail 2.0 30 - InsertionRail 2.0 Cover 30 - FixStop
- EndStop 1 - CrossConnector -ModuleSafety - Self-Tapping metal screw 5.5x19-
CarrierRail AntiSlip Plat
K2 WallPV CarrierRail
Building facades with sandwich panels are a large field of application for vertical photovoltaic systems. Our solution for this is the CarrierRail system for FischerTHERM Carrier® and Fischer Profil GmbH and MONTANATHERM sandwich panels from Montana Bausysteme AG.
- Building authority approved assembly solution with high assembly speed
- The solution for facades with FischerTHERM Carrier® and MONTANATHERM sandwich panels on large commercial buildings
- Can be combined with facade cladding
K2 WallPV CarrierRail
System Highlights
Building facades with sandwich panels are a large field of application for vertical photovoltaic systems.
This is a certified system for FischerTHERM Carrier® panels from Fischer Profil GmbH. It can also be used on MONTANATHERM panels. A large proportion of modern commercial and industrial buildings are nowadays built with this material.
Thanks to thread-forming, self-sealing screws and InsertionRail insertion system for PV modules, installation happens at high speed.
The CarrierRail is mounted with building authority-approved thin sheet metal screws that seal and are tried and tested in the roof area.
The well-known MK2 rail channel and the additional components for module fixation use familiar K2 mounting principles.
Silver or black InsertionRails provide an attractive overall appearance and stiffen the system.

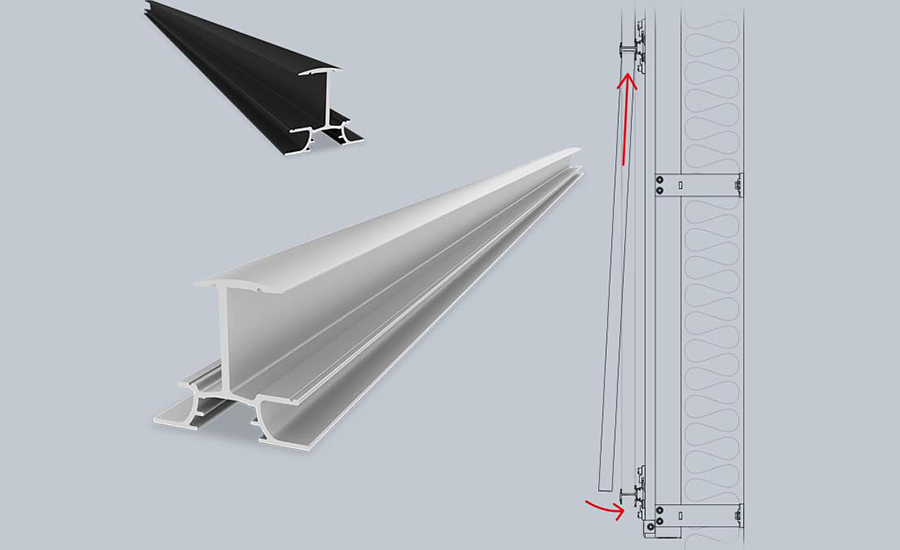

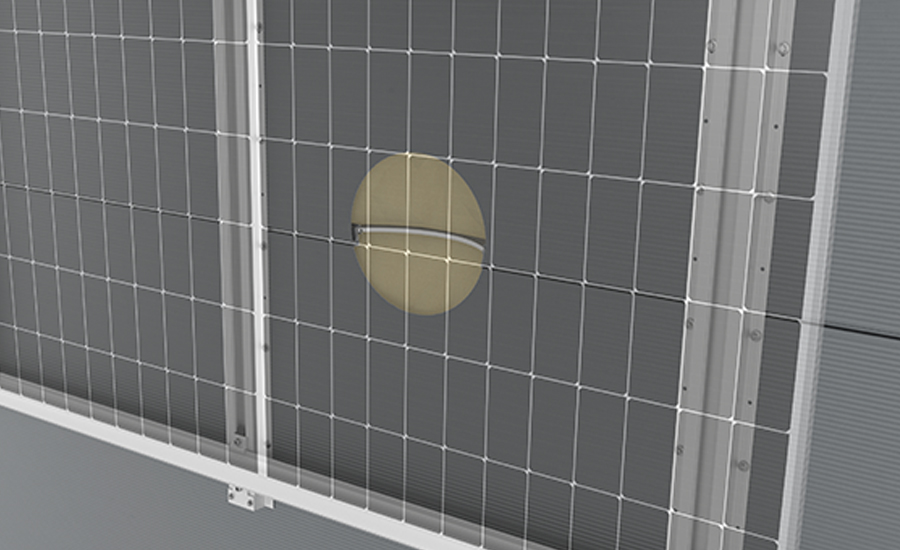

The PV modules can be installed quickly and securely on the façade with the InsertionRail. Despite the largely closed surface, enough gaps remain for rear ventilation.
K2 WallPV CarrierRail
| CarrierRail | |
|---|---|
| SCOPE OF APPLICATION | Facade |
| FASTENING TYPE / ROOF FIXTURE | on sandwich profile |
| Thermal separations | A thermal break must be installed after 13.60m (vertical) and 21.0m (horizontal). |
| Minimum distance | None to consider. |
| Angle of inclination | Parallel to the facade |
