Roof Fasteners
MiniRail 60 Set
Product number:
2004596
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Higher rail for the installation of optimisers and higher rear ventilation. Includes thread-forming screws with (diameter 6 mm). sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
MultiRail 15
Product number:
2004868
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 150 mm. Material: Aluminium EN AW-6063 T66, EPDM.
MultiRail High
Product number:
2004704
The MultiRail High is a short rail with increased installation height for better rear ventilation of the modules. For direct mounting in horizontal module orientation on trapezoidal sheet metal roofing. Length: 150 mm, height 100 mm. Material: Aluminium EN AW-6063 T66, EPDM.
MultiRail High CSM
Product number:
2004706
The MultiRail High CSM is a short rail with increased installation height for better rear ventilation of the modules. For direct mounting in horizontal module orientation on corrugated sheet metal roofing. Length: 150 mm, height 100 mm. Material: Aluminium EN AW-6063 T66, EPDM.
MultiRail 25
Product number:
2002793
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 10
Product number:
2001300
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on sheet metal roofing. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM
MiniRail MK2 Set
Product number:
2004211
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Including thread-forming screws with sealing washer (diameter 6 mm). Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
MultiRail 25 CSM
Product number:
2004210
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 250 mm. Material: Aluminium EN AW-6063 T66, EPDM
MultiRail 10 CSM
Product number:
2004209
Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm. Length: 100 mm. Material: Aluminium EN AW-6063 T66, EPDM

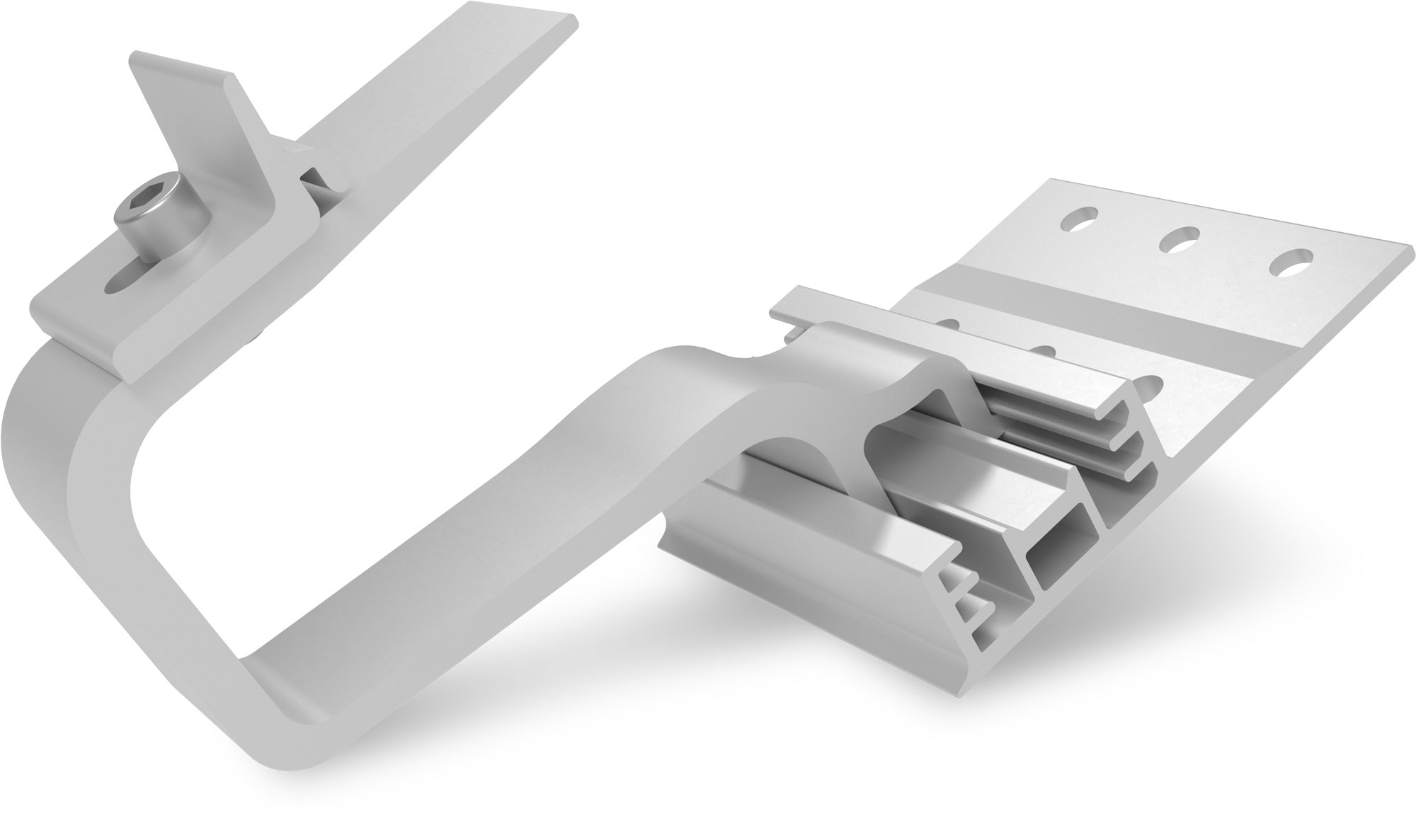

Roof Hook SingleHook 3S Light
Product number:
2004795
Roof hook with triple height adjustment in the base plate (40/47/55 mm). For rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). 6 mm bracket thickness, ideal for concrete roof tiles. With pre-assembled Climber 36/50 and cylinder head screw. For fastening the K2 SingleRail and CrossRail mounting rail. Material: Aluminium EN AW-6063 T66; stainless steel A2.

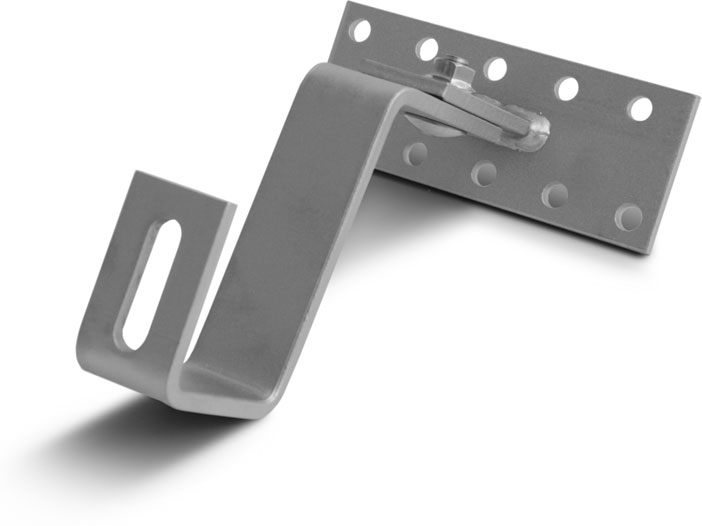

SolidHook Vario 1 Spanish tile
Product number:
1001693
SolidHook Vario 1 Spanish tile is a Z-shaped roof hook for attaching K2 system components to rafters or concrete. Construction component with fastening elements. Bracket with slotted hole for SolidRail mounting with M10 hammer head screw. 1-stage height adjustable Base plate: 150x60x5 mm, height under bracket: approx. 108-137 mm, arm: 35x6 mm, total height: approx. 190-220 mm. Material: stainless steel (1.4016)
SolidHook Vario 1 pantile
Product number:
1000125
Single height-adjustable Z-shaped roof hook for attaching K2 system components to roofs with pantile tiles. Construction component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut. Dimensions: Base plate: 150x60x5 mm, height under bracket: 43 mm, bracket height: 55-90 mm, bracket: 30x6 mm, total height: approx. 112-145 mm. Material: stainless steel (1.4016)
SolidHook Vario 2 pantile
Product number:
1000107
2-way height-adjustable Z-shaped roof hook for attaching K2 system components to roofs with pantile tiles. Construction component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut. Dimensions: Base plate: 140x55x5 mm, height under bracket: 49-58 mm, bracket height: 57-76 mm, total height: 128-156 mm. Material: stainless steel (1.4016)
Roof Hook SingleHook 3S Long
Product number:
2004222
Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) and long bracket. For rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2
Roof Hook SolidHook 3S+
Product number:
2002390
Roof hooks with 3 height adjustments in the base plate (40/47/54 mm) and slotted hole in the bracket for vertical SolidRail mounting. Base plate: 124x100, Height under Bracket: 40/47/54 mm, bracket: 35x9 mm, Overall height: 123/130/137 mm. Material: Aluminium EN AW-6063 T66
Roof Hook for Pan Tile (Alpin)
Product number:
1000764
Z-shaped alpine roof hook for attaching K2 system components to tiled roofs with interlocking tiles. Construction component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut. Dimensions: Base plate: 180x80x5 mm, height under bracket: 47 mm, bracket height: 55 mm, total height: 121 mm, bracket depth: 87 mm. Material: stainless steel (1.4016)
Roof Hook SingleHook 4S
Product number:
2003144
Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) and 30 mm adjusment on the bracket. Total hight adjustment: 120.5 mm - 165.1 mm. For rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2
Roof Hook SolidHook 4S+
Product number:
2002402
Roof hook with 3 height adjustments in the base plate (40/47/54 mm) and 30 mm adjustment on the bracket. Slotted hole in the bracket for vertical SolidRail mounting. Base plate: 124x100 mm, Height under bracket: 40/47/54 mm, bracket: 35x9 mm, Overall height: 120.5 - 165 mm. Material: Aluminium EN AW-6063 T66
Roof Hook for Pan Tile H38/150 35x6
Product number:
1000653
Z-shaped roof hook for attaching K2 system components to roofs with pantile tiles. Structural component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut.
Base plate: 180x80x4 mm, height under bracket: 38 mm, bracket height: 89 mm, total height: 150 mm, bracket depth: 91 mm. Material: stainless steel (1.4016)
Roof Hook for Pan Tile H47/138 35x6
Product number:
1001508
Z-shaped roof hook with long arm for attaching K2 system components to tiled roofs with large flat tiles. Structural component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut. Base plate: 180x80x4 mm, arm: 35x6 mm, height under arm: 47 mm, arm length: 127 mm, total height: 138.2 mm Material: stainless steel (1.4016)
BasicClip
Product number:
1001164
BasicClip for direct mounting the K2 BasicRail on trapezoidal sheet metal. General technical approval. Note: for each BasicClip you need 2x thread-forming screws 6x38. Material: UV-resistant glass-fibre reinforced polyamide
Roof Hook SingleHook Vario
Product number:
2002651
Dual, height-adjustable Roof Fastener to fasten K2 system components to tile roofs. Bracket with slotted hole for mounting and adjusting the height of the SingleRail. For various battens by means height of bracket infinitely adjustable on baseplate to suit. Including T-Bolt and Locking nut for SingleRail assembly. Material: Stainless steel
Roof Hook SingleHook 3S
Product number:
2003215
Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) for rafters from 48 mm (narrow rafters from 36 mm possible with M6 wood construction screw). With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail. Material: Aluminium EN AW-6063 T66; Stainless steel A2
Roof Hook SingleHook Alpin
Product number:
2003155
To fasten K2 system components to tile roofs. Slotted bore hole bracket for installation and height adjustability of the SingleRail. Including T-Bolt and Locking nut for SingleRail assembly. Only to be used in combination with a sheet metal roof tile. Material: Aluminium EN AW-6063 T66
Roof Hook SingleHook 2
Product number:
2003175
Z-shaped stainless steel roof hook for attaching K2 system components exclusively to tiled roofs with flat concrete roof tiles that meet the requirements of BS EN 490. Construction component with fastening elements. With pre-assembled Climber 36/50 and cylinder head screw for K2 SingleRail installation. Material: stainless steel (1.4301)
Roof Hook for Slate Tile
Product number:
1000373
For fastening of K2 System parts on slate roofs. Bracket with elongated hole to fix the SolidRail with T-Bolt M10. Bracket: 40x250x6 mm, Total height: 72 mm. Material: stainless steel A2 (1.4301)
Roof Hook SingleHook FT
Product number:
2002568
Roof hooks for flat tiles. Bracket with long hole for direct mounting and height adjustment of the SingleRail. Including T-bolt M8x25 (stainless steel A2) and locking nut M8 (stainless steel A2). Material: stainless steel
Roof Hook SingleHook 2G
Product number:
2000636
Special roof hook version for metal-tile-roof plate with 3 height adjustments in the base plate and 30mm adjustability in the bracket. Usable without roof holes. Material: aluminium EN AW-6063 T66
Roof Hook for Coppo-Tiles
Product number:
1001068
Single height-adjustable Z-shaped roof hook for attaching K2 system components to roofs with Coppo tiles. Construction component with fastening elements. Bracket with slotted hole for SolidRail mounting with hammerhead screw and M10 nut. Dimensions: Base plate: 150x60x5 mm, height under bracket: 18.5 mm, bracket height: 100 - 135 mm, total height: 137 - 167 mm, bracket depth: 130 mm. Material: stainless steel (1.4016)
Roof Hook bracket SingleHook 3S
Product number:
2004900
Extension arm of the SingleHook 3S incl. climber and cylinder screw. To be used with the K2 SingleBoard 3S/4S (2001972). Material: Aluminium EN AW-6063 T66 and stainless steel A2
Baseplate SingleBoard 2.10 m
Product number:
2002935
The SingleBoard allows you to add an additional roof hook of SingleHook 1.1 in between two rafters. It also allows you to move existing Roof Hook individually. This can be the case in roof edge areas or with obstacles. Material: Aluminium EN AW-6063 T66
Roof Hook Bracket SingleHook 1.1
Product number:
2003152
Bracket of the SingleHook 1.1 roof hook incl. screws and nuts. To be used with the K2 SingleBoard (2002935). Material: Aluminium EN AW-6063 T66 and stainless steel A2
Roof Hook bracket SingleHook 4S
Product number:
2002927
Bracket of the SingleHook 4S incl. Climber and allen bolt. To be used with the K2 SingleBoard 3S/4S (2001972). Material: Aluminium EN AW-6063 T66 and stainless steel A2
Baseplate SingleBoard 3S/4S; 2.10 m
Product number:
2001972
The SingleBoard 3S/4S allows you to add an additional roof hook of SingleHooks in between two rafters. It also allows you to move existing Roof Hook individually. This can be the case in roof edge areas or with obstacles. Material: Aluminium EN AW-6063 T66
SingleHook FlatTile sheet metal
Product number:
2004282
To ensure proper waterproofing of the SingleHook FLA (2004416) roof hook designed for use with clay brick roofs with flat tile roofing, the use of our metal covers with aluminium 3.0205 (EN-AW-1200) butyl strips is required. Two metal covers measuring 300mm x 260mm are required per roof hook to ensure adequate watertightness. Colour: Red.
SingleHook FlatTile
Product number:
2004416
The K2 SingleHook FlatTile is perfect for fastening the K2 system components on flat tile roofs. The roof hook has a slotted hole for SingleRail mounting. The K2 SingleRail mounting rail can be fixed to the SingleHook FlatTile with a T-bolt M8x20 (1002387) and a flanged nut M8 (2002744). Two metal roof plates (2004282 or 2004440) are required for each roof hook. With a total height of approx. 144 mm and an bracket of 75x4 mm, this roof hook is a perfect solution to securely and efficiently fasten the K2 system components. The roof hook is made of Magnelis 1.0242 (S250GD+ZM310), so you also get a durable and high-quality fastening.
Roof Hook for Flat Tile
Product number:
1000214
Z-shaped stainless steel roof hook for fastening of K2 System parts on clay brick roofs with flat tile roofing. Structural component with fastening elements. Bracket with elongated hole to fix the SolidRail with T-Bolt and Nut M10. Base plate: 40x50 mm, Height under bracket: 33 mm, Bracket height: 62 mm, Total height: 122 mm, Bracket depth: 189 mm. Material: Stainless steel A2 (1.4301)
SingleRail SpliceFoot
Product number:
2003393
Aluminium roof fastener with SingleRail connection for bitumen roofs. Can be screwed into timber rafters and timber or OSB panelling. Installation directly on the insulation is not possible. Base plate: 89 mm x 50.8 mm. Total height of component: 68 mm. Height adjustment: 36.9 mm - 57.5 mm.
Hanger bolt SolidRail M10
Product number:
2000122
K2 SolidRail Hanger Bolt Set M10x250 with adapter plate and fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Length wood thread 67 mm. Length metric thread 85 mm. General approval. Material: Stainless steel A2/ Aluminium/ EPDM.This is an exemplary illustration and may vary depending on the design.
Hanger bolt SolidRail M12
Product number:
2000124
K2 SolidRail Hanger Bolt Set M12x250 with adapter plate and fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Length wood thread 100 mm. Length metric thread 100 mm. General approval. Material: Stainless steel A2/ Aluminium/ EPDM.This is an exemplary illustration and may vary depending on the design.
Hanger bolt SingleRail M12
Product number:
2003276
K2 SingleRail Hanger Bolt Climber Set M12x250 with fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval. Material: Stainless steel A2/ Aluminium/ EPDM.This is an exemplary illustration and may vary depending on the design.
Hanger bolt SingleRail M10
Product number:
2003274
K2 SingleRail Hanger Bolt Climber Set M10x250 with fiber cement seal. For fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. General approval. Material: Stainless steel A2/ Aluminium/ EPDM.This is an exemplary illustration and may vary depending on the design.
Solarfastener M10x50 with fibre-cement seal for wood substructure
Product number:
1002001
Solar fastener 8x150 / M10x50 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solarfastener with calotte for wood substructure
Product number:
1000807
Solar fastener 8x150 / M10x50 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded. The following technical data must be submitted with enquiries/orders: A - Top chord width [mm], B - Profile height [mm], C - Clear width at bottom chord [mm], D - Roof colour [RAL].
For support please complete the below document 'Selection and parameters for solar fastener with calotte' and send it with your order.
Solarfastener M10x50 with fibre-cement seal for steel substructure
Product number:
2003017
Solar fastener 8x195 / M10x50 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solarfastener M10x50 with calotte for steel substructure
Product number:
2003021
Solar fastener 8x195 / M10x50 with calotte and hardened tip (without adapter plate). For fixing the K2 Systems components in the steel substructure, suitable for trapezoidal sheet metal covering. European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded.The following technical data must be submitted with enquiries/orders: A - Top chord width [mm], B - Profile height [mm], C - Clear width at bottom chord [mm], D - Roof colour [RAL].
For support please complete the below document 'Selection and parameters for solar fastener with calotte' and send it with your order.
Solarfastener with fibre-cement seal for wood substructure
Product number:
1005263
Solar fastener 8x150 / M10x70 with fiber cement seal for fixing the K2 Systems components in the timber substructure, suitable for corrugated fibre cement roofing. Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Solarfastener M10x70 with calotte for wood substructure
Product number:
1004286
Solar fastener 8x80 / M10x70 for fastening the K2 Systems components in the wooden substructure. With sealing washer E16 and ORKAN calotte. Suitable for trapezoidal and corrugated metal profiles and sandwich elements. With European Technical Assessment (ETA). Material: stainless steel A2. Article is procured on the basis of order - return excluded. The following technical data must be submitted with enquiries/orders: A - Top chord width [mm], B - Profile height [mm], C - Clear width at bottom chord [mm], D - Roof colour [RAL].
For support please complete the below document 'Selection and parameters for solar fastener with calotte' and send it with your order.
Roof Fasteners
Fastening in the substructure or covering, for example with roof hooks, hanger bolts or directly with mounting rails.
