K2 Dome Zero System
Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
Dome Mat S 380
Product number:
2003126
Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2
BasicRail. Material: EPDM
Dome FlatConnector Set
Product number:
1006039
Rail connector set as connecting element between two K2
BasicRail
22 or FlatRail. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2.
Dome Zero Peak
Product number:
2003123
Component for the roof-parallel module elevation of the Dome Zero system. The peak is fixed to the
BasicRail
with a socket head screw and MK2. Material: Aluminium EN AW-6063 T66
K2 TerraGrif K2MI Duo 18
Product number:
2003542
Mounting accessories for DomeClamp Moduleclamp establishing equipotential bonding of the K2 Dome 6 mounting system or for earthing the module frames.

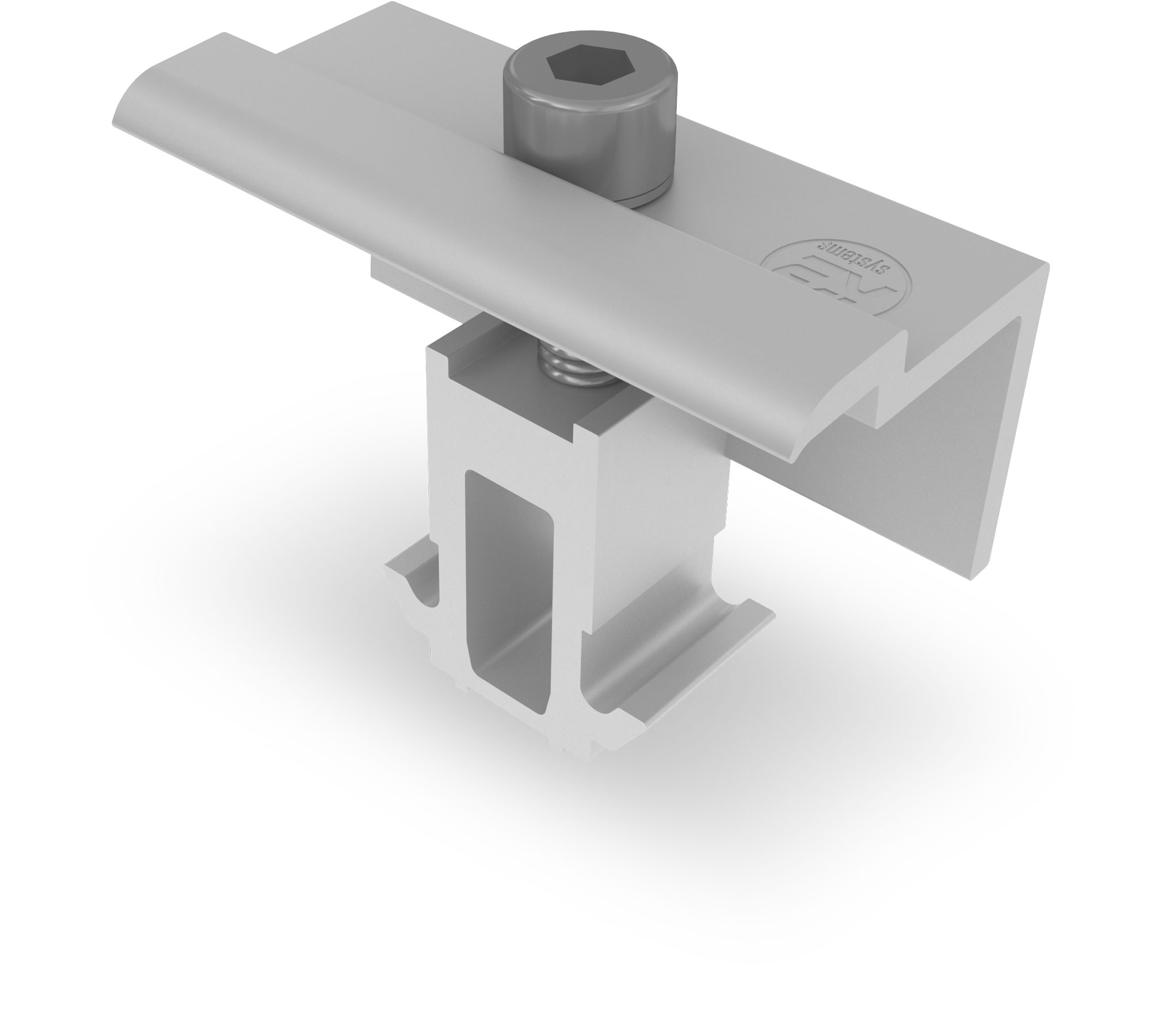

DomeClamp End Clamp 30-50 mm
Product number:
2002559
Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm
Product number:
2002558
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm, black anodized
Product number:
2002609
Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.

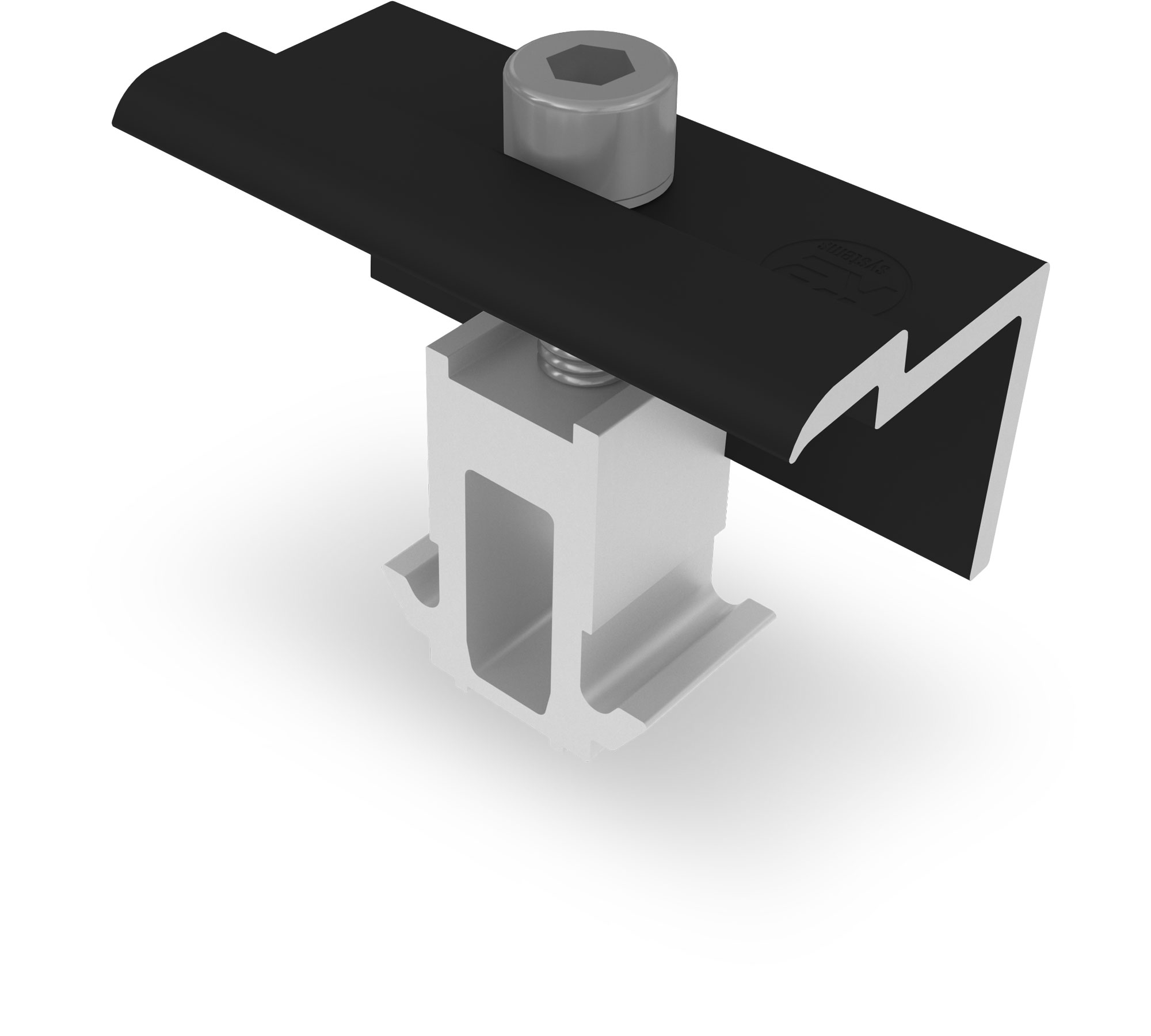

DomeClamp End Clamp 30-50 mm, black anodized
Product number:
2002610
Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
Dome SpeedPorter
Product number:
2002300
For ballast mounting for the K2 Dome 6 Classic flat roof system. Place two SpeedPorters at a distance from each other, depending on the size of the bricks, on the
BasicRail and place ballast (up to approx. 40 kg) on them. Material: aluminium
Dome Porter Flex
Product number:
2004157
Ballast tray for a fast and universal bearing of different ballasts slabs for the K2 Dome Zero System and K2 Dome 6 Classic LS System. The Porter can be used for module widths up to 1320 mm for the Dome Zero System and for module lengths from 1562 to 2390 mm for the Dome 6 Classic LS System. Total length Porter: 1365 mm; Maximum permissible ballast: 178 kg. Material: aluminum EN AW 6063 T66
MK2 insertion nut with clip, Stainless steel
Product number:
1001643
The Fast-installation MK2 insertion nut can be put into the K2 rail everywhere. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: stainless steel 1.4301, PA.
MK2 Slot nut with clip, Aluminum
Product number:
2000034
The Fast-installation M K2 slot nut can be put into the K2 rail everywhere*. The slot nut will adjust itself in the the rail and can be readjusted to every place of the rail. Material: Aluminium, PA. * excluding MiniRail, MicroRail, Dome 6 and Dome V Peak
Hexagonal socket head cap screw M8x20
Product number:
2001729
Hexagon socket head cap screw M8x20 with serration ISO 4762. Drive size: A/F 6. Material: Stainless steel A2
Solar Cable Manager
Product number:
2002870
Solar Cable Manager with connecting possibility for outdoor-installation. LxW: 200x4.6 mm
PVX Multimount
Product number:
2003137
The UV-resistant PVX Multimount provides a multifunctional cable management system for mesh tray and/or pipes on flat roofs and is made from 80% recycled plastic. Mesh tray and/or pipes are not included. Material: PE and ASA
Flatroof cable routing Performa Mesh Tray 70x100x3000
Product number:
2004054
Performa mesh tray for cable management on the flat roof. Compatible with the PVX Multimount (2003137). Dimensions (LxWxH): 3000 x 100 x 75 mm. Wire diameter: 3,9 mm. Material: steel (zinc+)
Performa Mesh Tray Connector
Product number:
2004055
Performa mesh tray connector for article 2004054. Two connectors are required per mesh tray. Dimensions (LxWxH): 86 x 30 x 10 mm. Material: spring steel (zinc)
Dome FixPro S
Product number:
2003384
Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately. Suitable for module lengths 828 - 1325 mm. Material: aluminium, stainless steel, PA
Dome Speed Spacer Large
Product number:
2004129
Distance tool for the K2 Dome system. Length: 2,50 m. Material: Aluminium, Acromide
Test weight for measuring the coefficient of friction
Product number:
2002620
Test weight for measuring the coefficient of friction on a roof.
StairPlate Set
Product number:
2004057
The K2 StairPlate is the perfect solution for installing Micro Inverters and Optimizers from Solar Edge, Huawei and Enphase. With the StairPlate, these devices can be easily hooked into almost all K2 mounting rails without having to screw them directly to the roof. The units are attached to the K2 StairPlate in advance with the appropriate screws and nuts. Please note the height of the modules and the units to be used. Can only be used to a limited extent when using AddOn. Material: Stainless steel
Lightning protection clamp Alu 8mm - Double Set
Product number:
2002474
Two Lightning protection clamp for clamping Ø 8mm lightning protection cables for universal use as a T, cross, parallel and impact clamp. Including allen bolt M8x40, 2x Washer 8,4 x 20 x 1,2 mm and Locking nuts M8.
Lightning protection clamp Alu 8mm - Set
Product number:
2002473
Lightning protection clamp for clamping Ø 8mm lightning protection cables. Including MK2 slot nut, Washer (8,4x20x1,2 mm) and stainless steel socket screw M8x30.
Alternative item: 2004278Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 4.40 m. Material: Aluminium EN AW-6063 T66
K2 Dome Zero System
Roof-parallel mounting system suitable for roof pitches up to 10° with typical flat roof coverings.
- Roof parallel mounting system for flat roofs with Dome 6 components
- Suitable for roof pitches up to 10° with typical flat roof coverings
- Placement in portrait orientation of the modules
- Very flat construction height – can be hidden behind a parapet
K2 Dome Zero System
K2 Dome Zero System
Technical data
| Dome Zero System | |
|---|---|
| Scope of application |
Flatroofs < 10° with foil or bitumencovering, on concrete, gravel roofs. |
| Fastening type/roof fixture |
|
| Requirements |
|
| Technical specifications |
|
| Minimum distance to the roof edge |
600 mm |
| Inclination angle |
0° |
| Material |
|

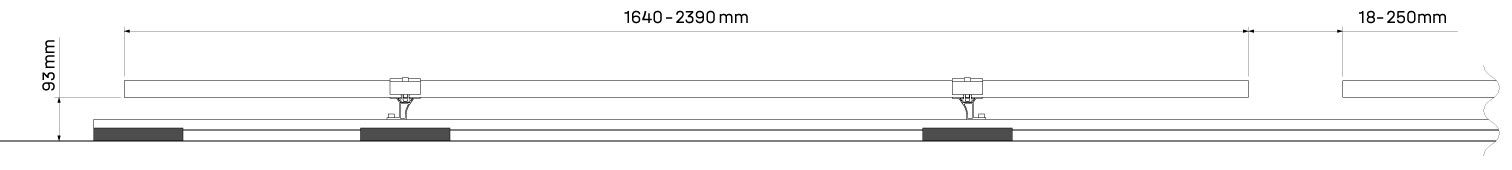

Side views
K2 Dome Zero System
Downloads
abZ Dome 6 / Dome Zero (Z-14.4-916)
Dome Zero
Dome Zero
