Ground mounted

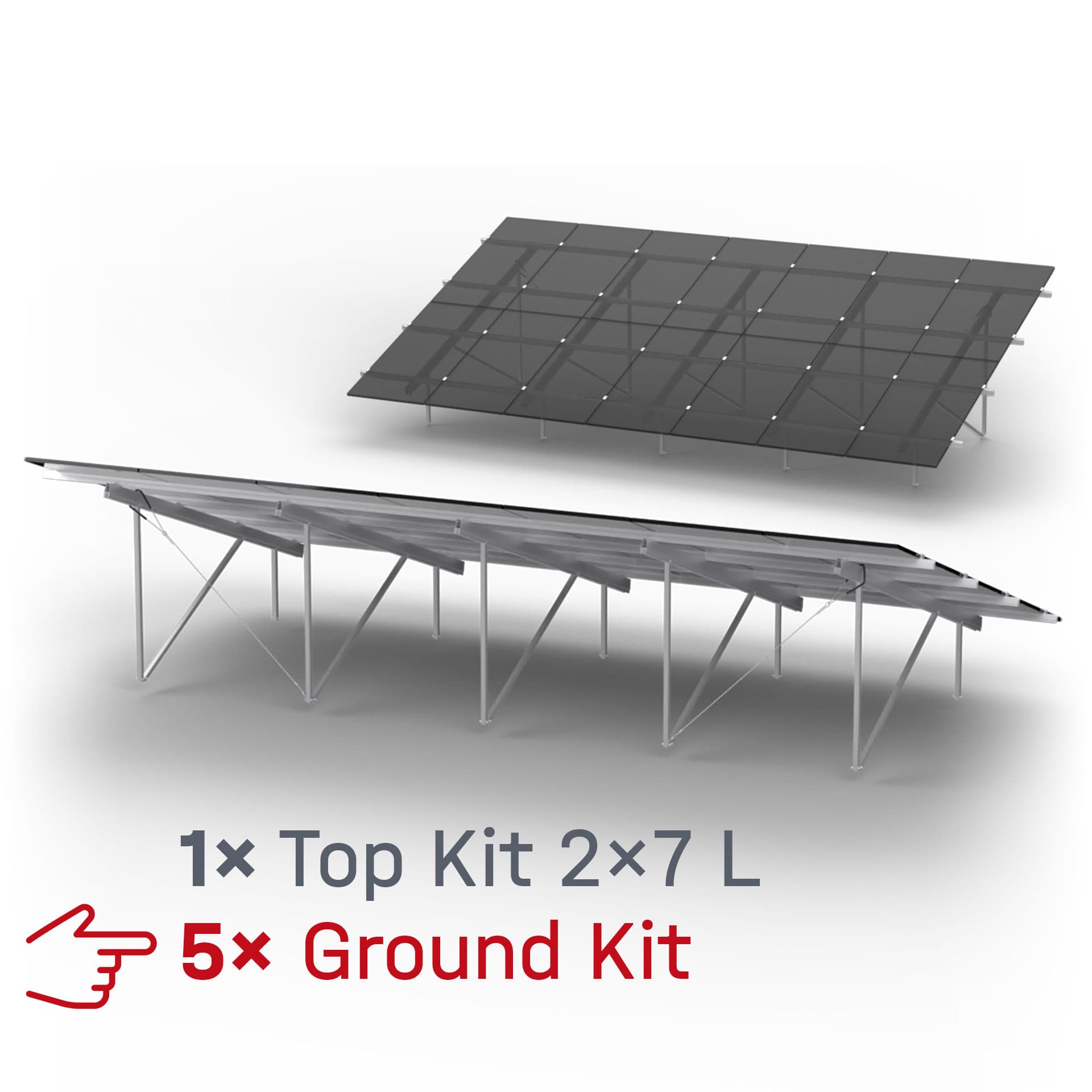

N-Rack Top Kit 2x7 L
Product number:
2004924
N-Rack set for mounting 2x7 modules with a length > 1905 mm. The set includes Beam 3020, Brace 715, Brace 1370, Brace 1696, CrossRail 73 in 4.55m, CrossRail 73 Connector incl. drill screws 5.5x25, K2 Clamp EC and MC, wind bracing wire rope. 5x N-Rack Ground Kits are required per set:GabionsConcrete foundations Screw foundations Pile foundations

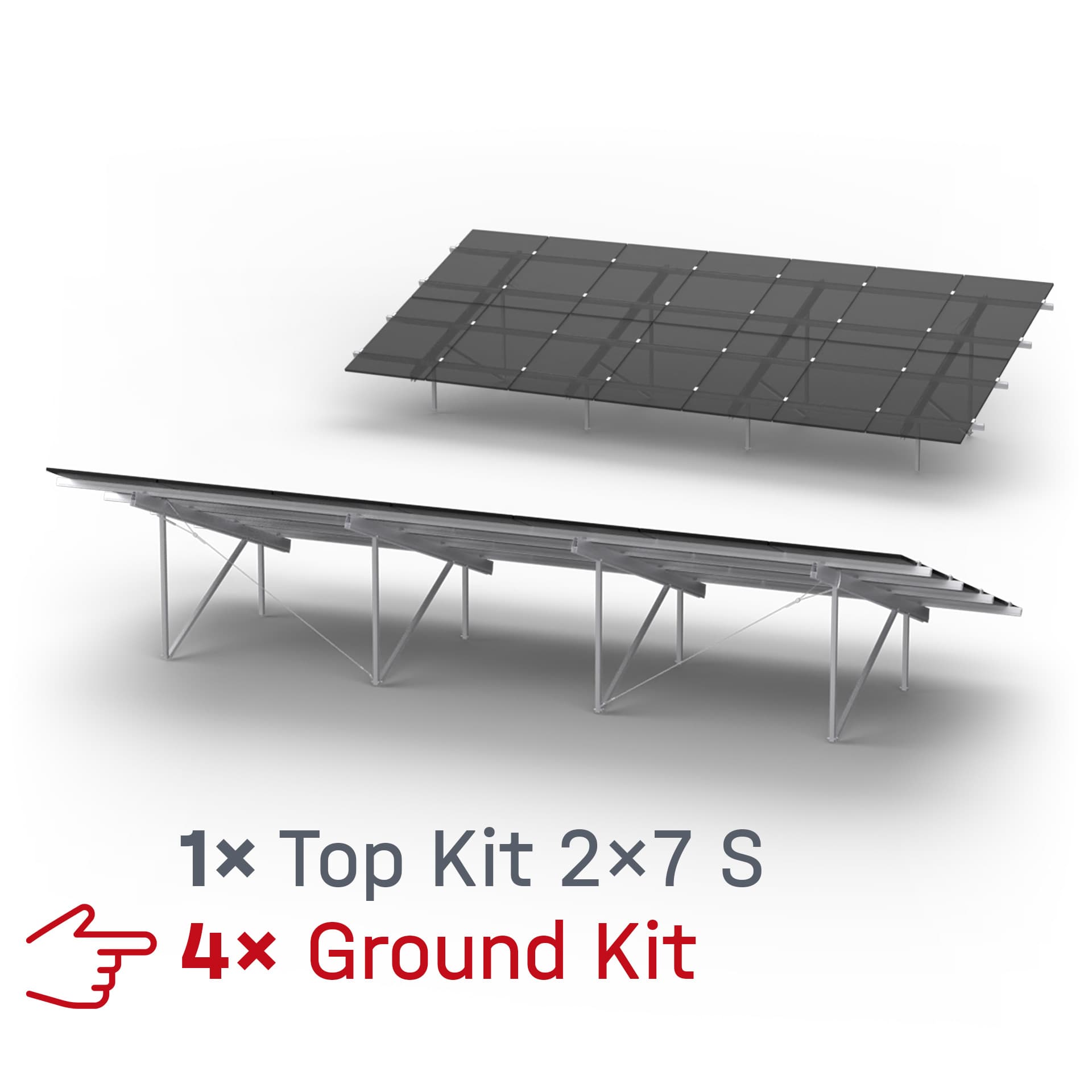

N-Rack Top Kit 2x7 S
Product number:
2004925
N-Rack set for mounting 2x7 modules with a length <= 1905 mm. The set includes Beam 3020, Brace 715, Brace 1370, Brace 1696, CrossRail 73 in 4.55 m, CrossRail 73 Connector incl. drill screws 5.5x25, K2 Clamp EC and MC, wind bracing wire rope. 4x N-Rack Ground Kits are required per set:GabionsConcrete foundations Screw foundations Pile foundations

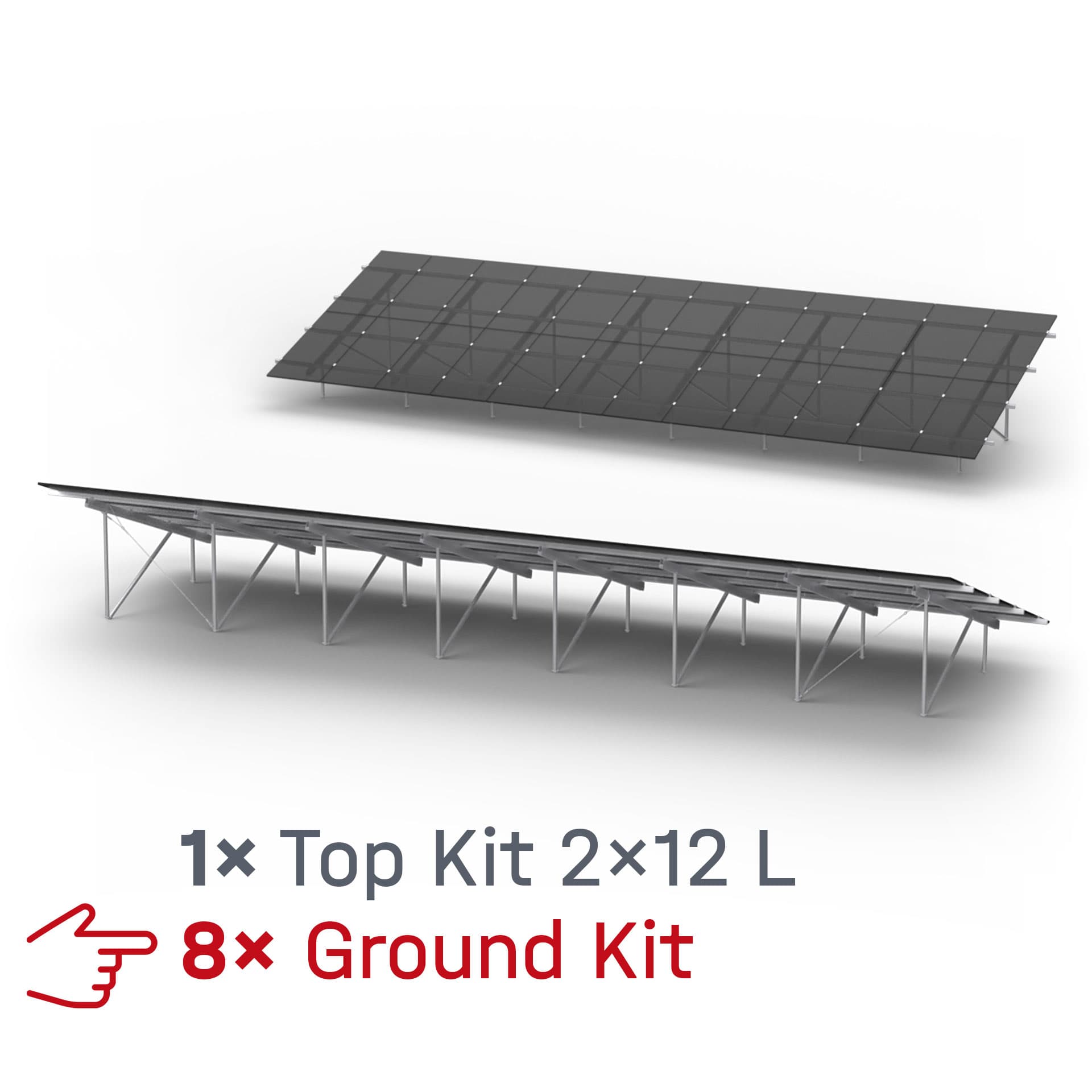

N-Rack Top Kit 2x12 L
Product number:
2005047
N-Rack set for mounting 2x12 modules with a length > 1905 mm. The set includes Beam 3020, Brace 715, Brace 1370, Brace 1696, CrossRail 73 in 4.55 m and 5.00 m lengths, CrossRail 73 Connector including 5.5x25 self-tapping screws, K2 Clamp EC and MC, and wire rope bracing. 8x N-Rack Ground Kits are required per set:GabionsConcrete foundations Screw foundations Pile foundations

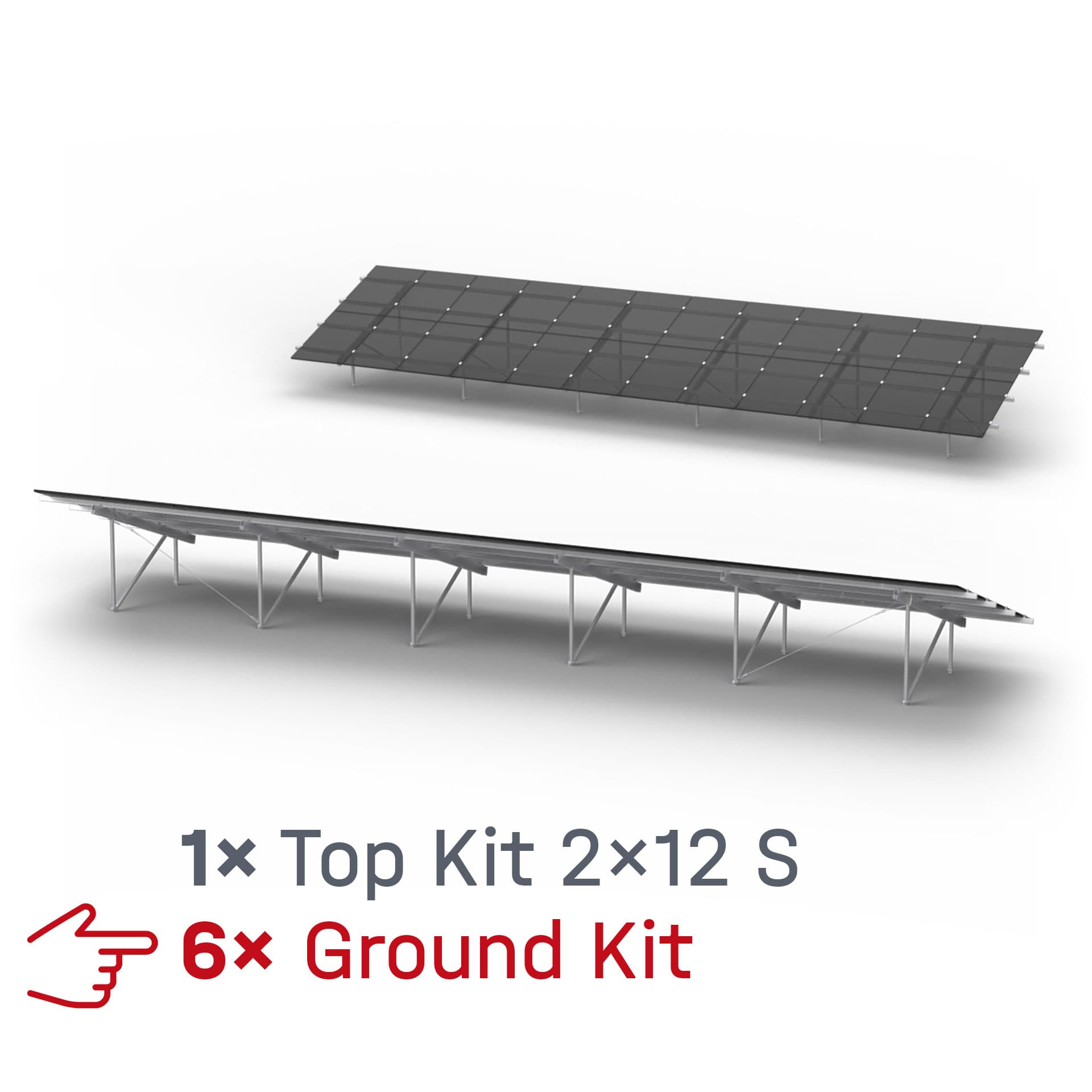

N-Rack Top Kit 2x12 S
Product number:
2005048
N-Rack set for mounting 2x12 modules with a length <= 1905 mm. The set includes Beam 3020, Brace 715, Brace 1370, Brace 1696, CrossRail 73 in 4.55 m and 5.00 m, CrossRail 73 Connector incl. drill screws 5.5x25, K2 Clamp EC and MC, wind bracing wire rope. 6x N-Rack Ground Kits are required per set:GabionsConcrete foundations Screw foundations Pile foundations
A-Rack Mounting kit 15/20/25° 0.8kN/m²
Product number:
2002717
Alternative article: 2004656 and 2004657 Components for assembly of PV modules for small ground mounted projects and off-grid systems. Designed for wind and snow loads of up to 0.8 kN/m². Please note: The concrete foundations must be procured on site or created by the customer, these are not included in the delivery.
A-Rack Mounting kit 15/20/25° 1.3kN/m²
Product number:
2002780
Alternativ article: 2004656 and 2004657Components for assembly of PV modules for small ground mounted projects and off-grid systems. Designed for wind and snow loads of up to 1.3 kN/m². Please note: The concrete foundations must be procured on site or created by the customer, these are not included in the delivery.

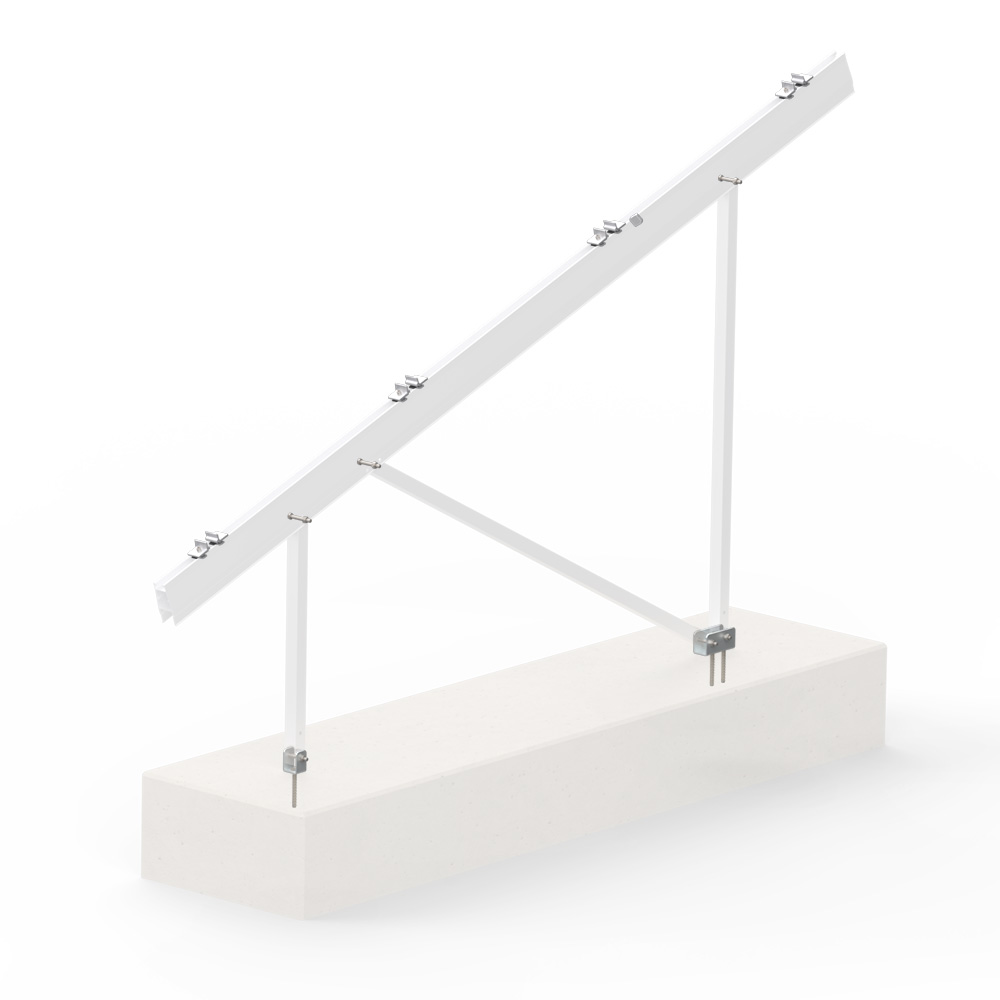

N-Rack Ground Kit Concrete
Product number:
2004926
Set for connecting the N-Rack to concrete foundations. The set includes SingleRail Climber 36/50 Set, hexagon bolt M10x70, self-locking hexagon nut M10, N-Rack Concrete Foot Front, N-Rack Concrete Foot Back, MultiMonti Plus SS screw anchor.

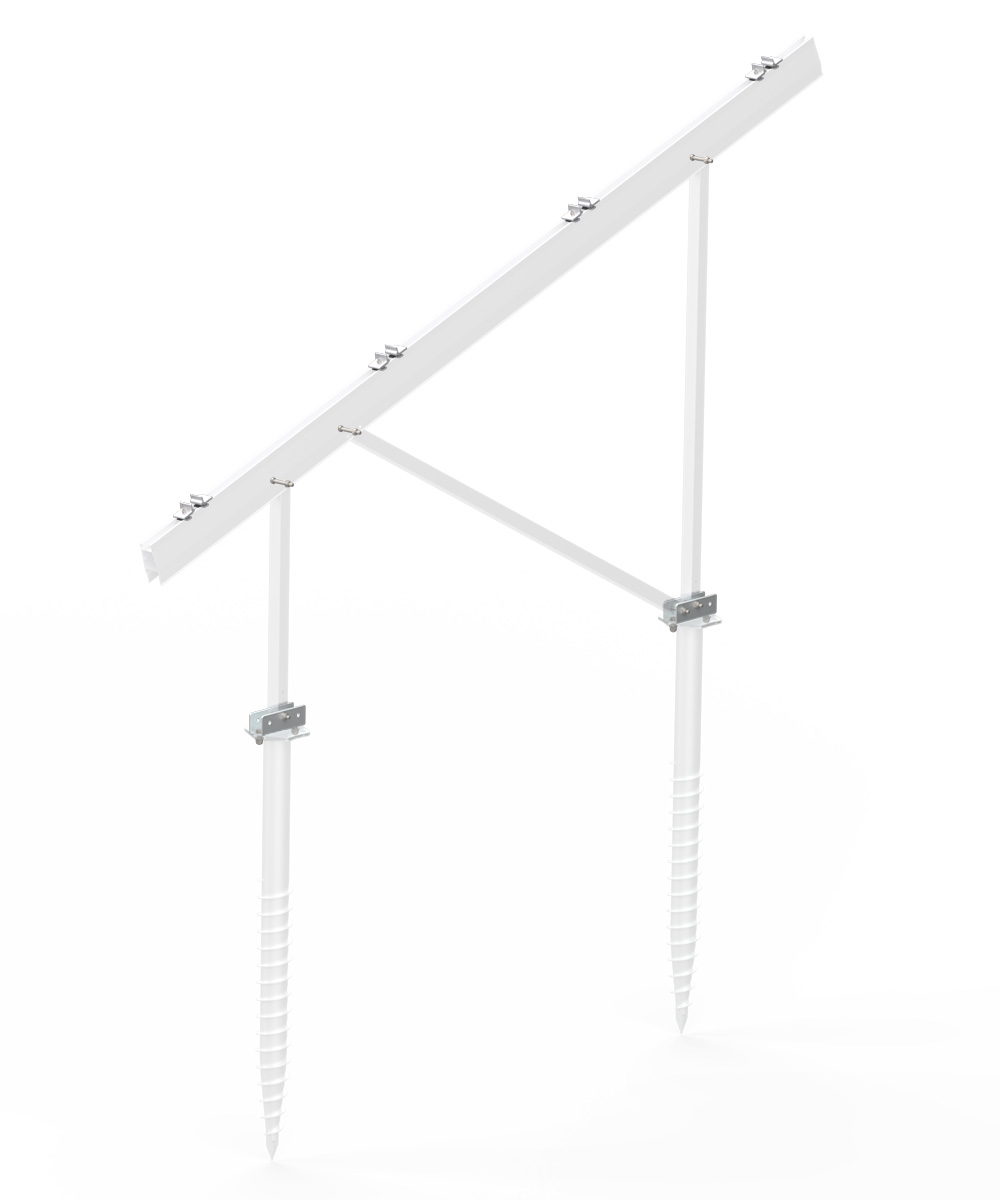

N-Rack Ground Kit Groundscrew
Product number:
2004927
Set for connecting the N-Rack to screw foundations. The set includes SingleRail Climber 36/50 set, hexagon bolt M10x70, self-locking hexagon nut M10, hexagon bolt M12x35, self-locking hexagon flange nut M12, washer 13 mm, N-Rack GS Foot.

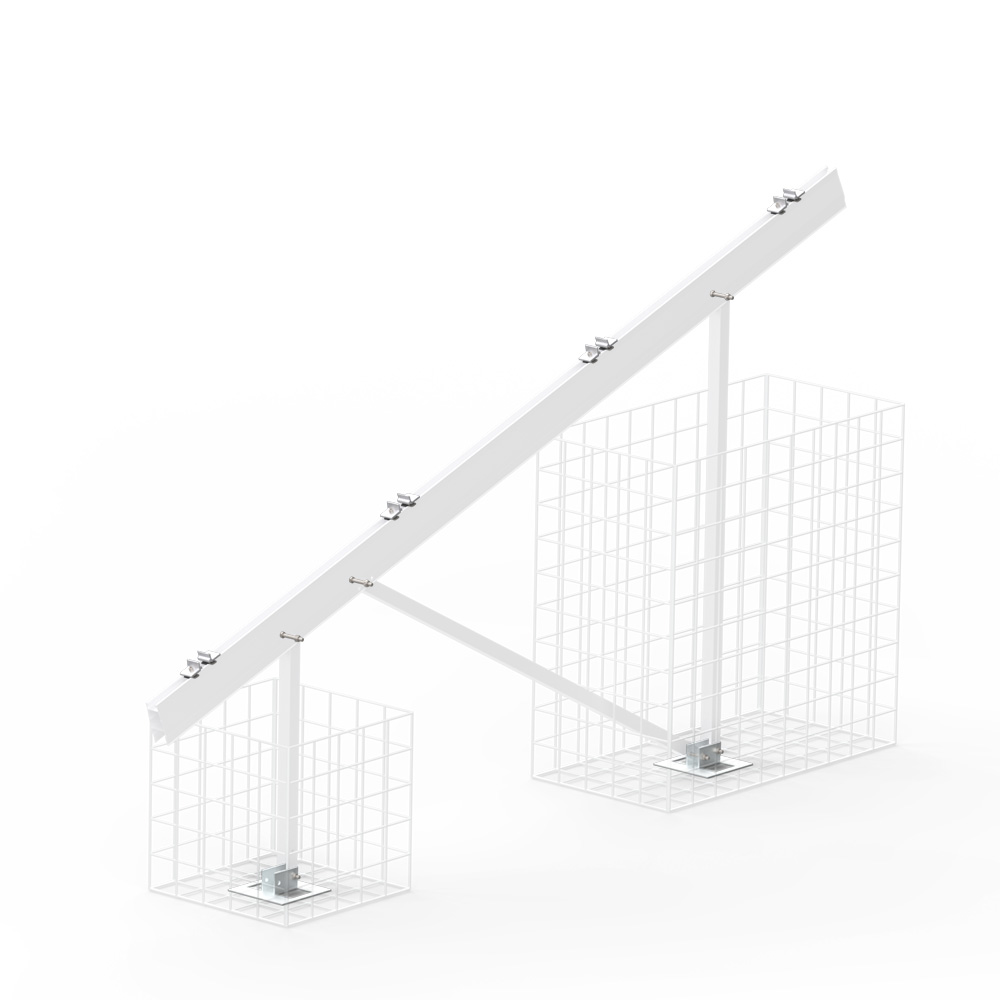

N-Rack Ground Kit Gabion
Product number:
2005110
Set for connecting the N-Rack to gabions. The set includes SingleRail Climber 36/50 Set, N-Rack Gabion Foot, hexagon bolt M10x70, self-locking hexagon nut M10.

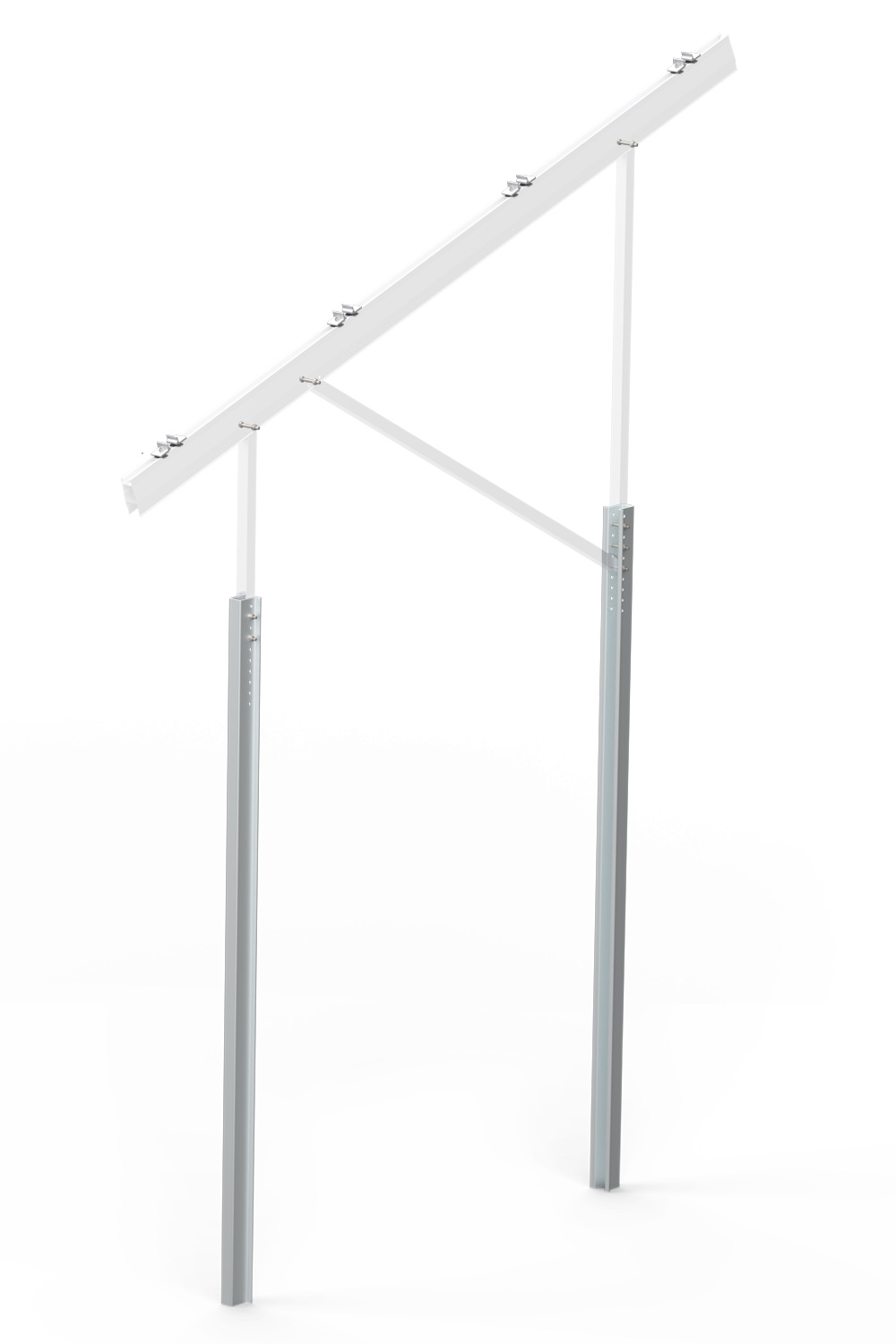

N-Rack Ground Kit Pile
Product number:
2005113
Set for connecting the N-Rack to pile foundations. The set includes Cap Profile N-Rack 2.3 m, SingleRail Climber 36/50 Set, hexagon bolt M10x70, self-locking hexagon nut M10.
P-Rack Mounting kit 15/20/25° 1.3kN/m²
Product number:
2002781
Alternative item: 2004656 and 2004657Components for assembly of PV modules for small ground mounted projects and off-grid systems. Designed for wind and snow loads of up to 1.3 kN/m². Please note: The concrete foundations must be procured on site or created by the customer, these are not included in the delivery.
P-Rack Mounting kit 15/20/25° 0.8kN/m²
Product number:
2002714
Alternative item: 2004656 and 2004657Components for assembly of PV modules for small ground mounted projects and off-grid systems. Designed for wind and snow loads of up to 0.8 kN/m². Please note: The concrete foundations must be procured on site or created by the customer, these are not included in the delivery.

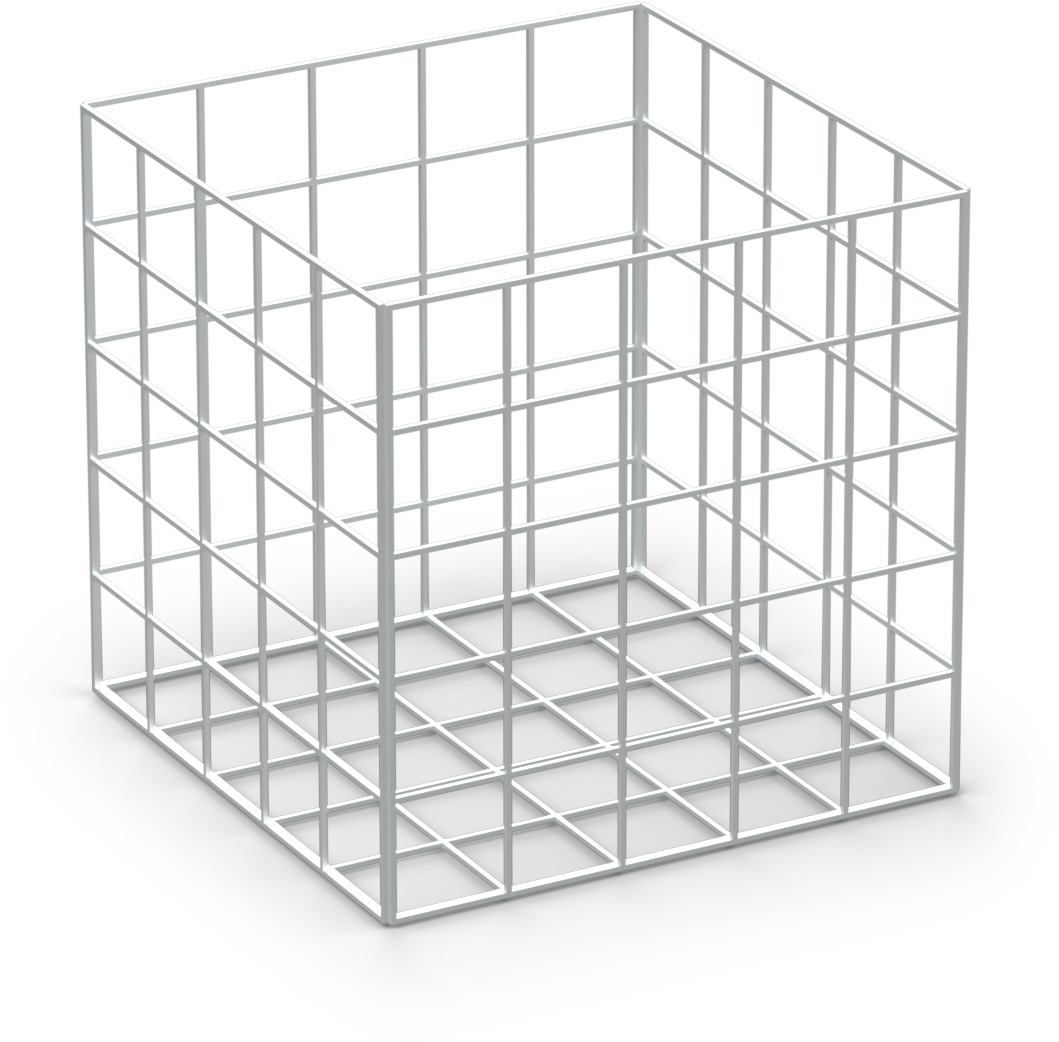

Gabion 50x50x50
Product number:
2005184
Gabion mesh basket 50x50x50cm made of steel wire with zinc-aluminium coating (approx. 95% zinc / 5% aluminium). Including spacers (Ø 5.0mm) and spirals (Ø 4.5mm) for secure installation.

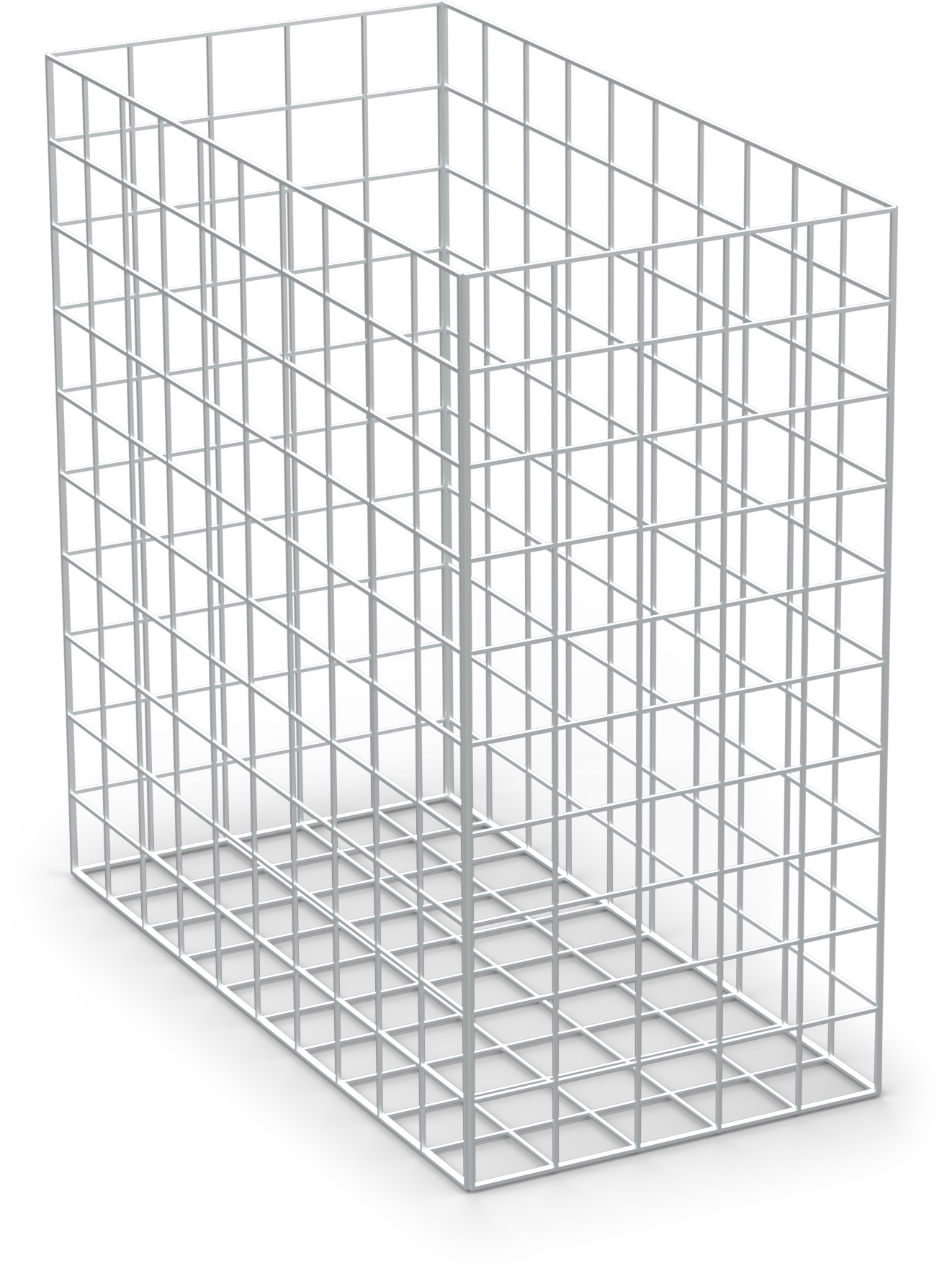

Gabion 100x50x100
Product number:
2005185
Gabion mesh basket 100x50x100cm made of steel wire with zinc-aluminium coating (approx. 95% zinc / 5% aluminium). Including spacers (Ø 5.0mm) and spirals (Ø 4.5mm) for secure installation.
Cable gripper
Product number:
2004456
Clamp for tensioning wind bracing ropes, ideal for applying controlled tension. For rope diameters from 3 mm - 6 mm. For tension adjustment up to max. 400 kg.

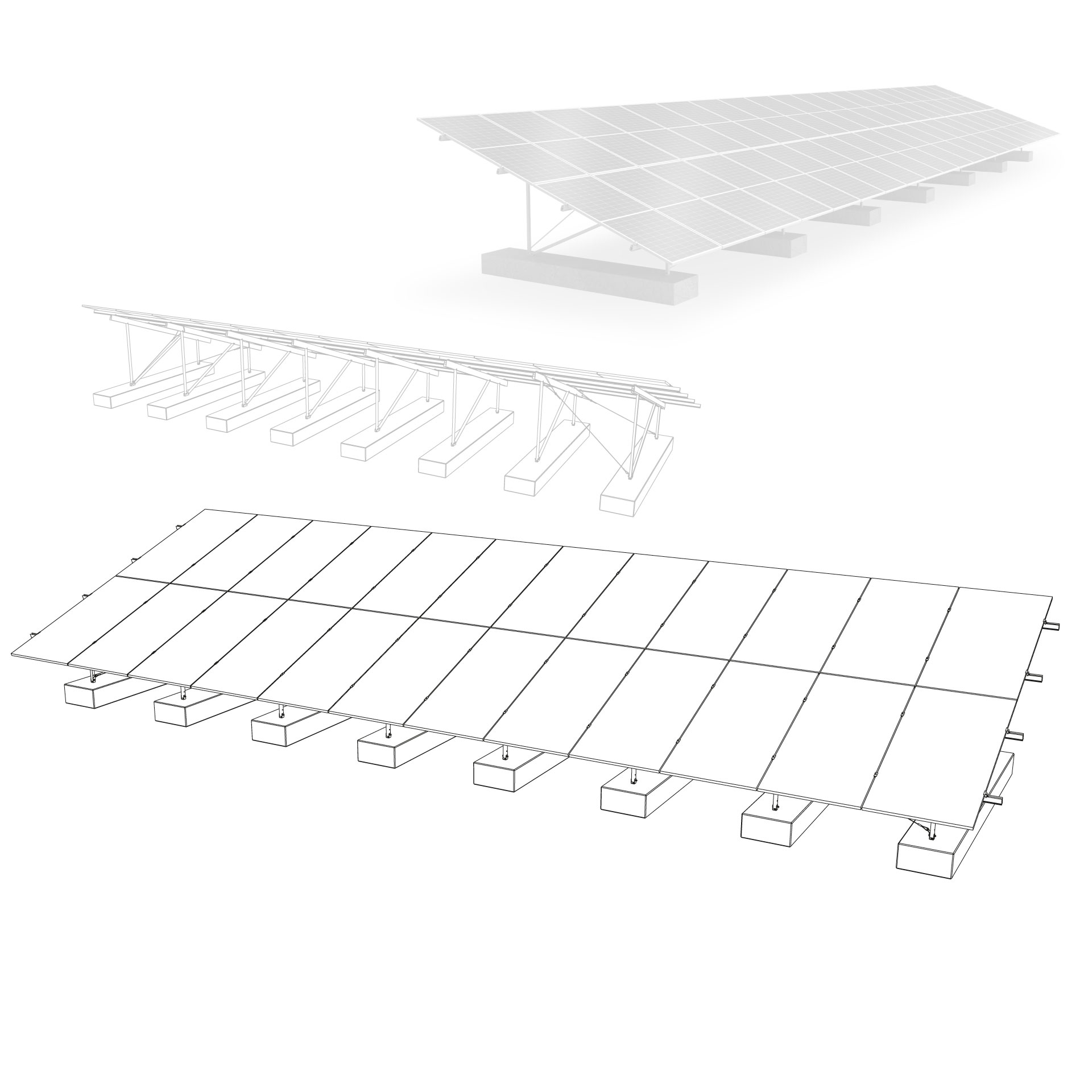

N-Rack 2.20 C Kit
Product number:
2004657
N-Rack system: Components for mounting 2 x 12 PV modules. For module lengths from 1,906 mm..
The N-Rack Kit is suitable for small ground-mounted projects and off-grid systems on concrete foundations.Designed for a snow load of up to 1.75 kN/m² and a wind load of up to 0.67 kN/m² Please note: The concrete foundations must be procured on site or constructed by the customer, these are not included in the scope of delivery.

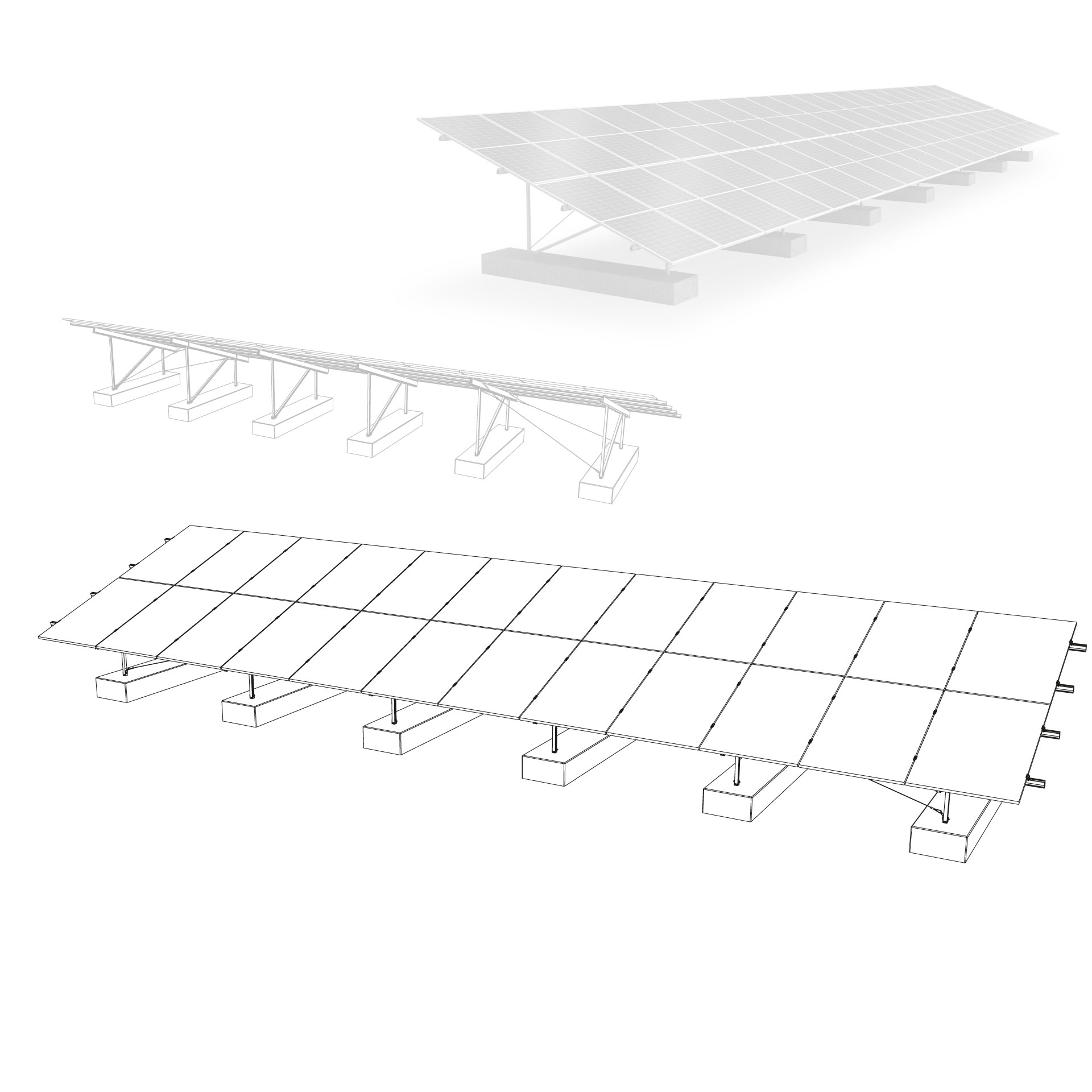

N-Rack 2.20 CS Kit
Product number:
2004656
N-Rack system: Components for mounting 2 x 12 PV modules. Module length up to 1,905 mm. The N-Rack Kit is suitable for small ground-mounted projects and off-grid systems on concrete foundations.
Designed for a snow load of up to 1.75 kN/m² and a wind load of up to 0.67 kN/m² Please note: The concrete foundations must be procured on site or constructed by the customer, these are not included in the scope of delivery.
Ground mounted
The K2 ground-mounted systems are the perfect solution for small offgrid installations. The systems are drawn up using low installation costs and few components. SingleRail, CrossRail, or SolidRail are used as module carrier rails.
