SingleHook FlatTile sheet metal
New
Product number:
2004282
GTIN:
4251786215218
Product information

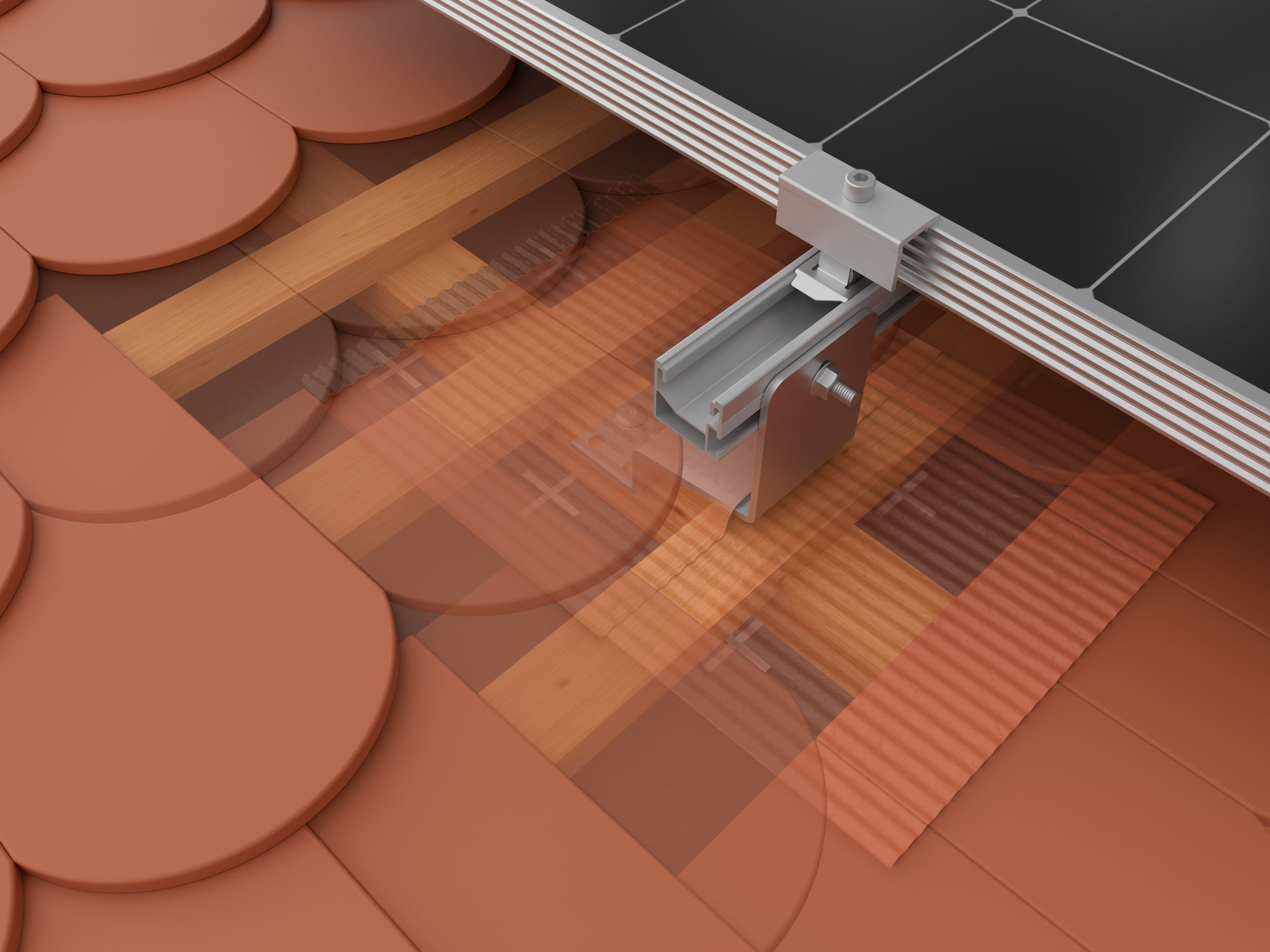

To ensure proper waterproofing of the SingleHook FLA (2004416) roof hook designed for use with clay brick roofs with flat tile roofing, the use of our metal covers with aluminium 3.0205 (EN-AW-1200) butyl strips is required. Two metal covers measuring 300mm x 260mm are required per roof hook to ensure adequate watertightness. Colour: Red.
| Color: | Red |
|---|---|
| Dimensions [mm]: | 300x260 |
| Mounting systems: | K2 SingleRail System |
| Scope of application: | Pitched Roof |
| Component type: | Roof hook |
| Material: | Aluminium 3.0205 (EN-AW-1200) |
| Sales unit: | 50 Piece |
| Packaging type: |
50 / Box 2000 / Pallet |
| Weight: | 0.089 Kg |
| Customs tariff number: | 76071990 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
| Assembly instructions - SingleHook flat tile: | DE EN |
Compatible Items
SingleHook FlatTile
Product number:
2004416
The K2 SingleHook FlatTile is perfect for fastening the K2 system components on flat tile roofs. The roof hook has a slotted hole for SingleRail mounting. The K2 SingleRail mounting rail can be fixed to the SingleHook FlatTile with a T-bolt M8x20 (1002387) and a flanged nut M8 (2002744). Two metal roof plates (2004282 or 2004440) are required for each roof hook. With a total height of approx. 144 mm and an bracket of 75x4 mm, this roof hook is a perfect solution to securely and efficiently fasten the K2 system components. The roof hook is made of Magnelis 1.0242 (S250GD+ZM310), so you also get a durable and high-quality fastening.
