Montageschienen
SingleRail 36
Product number:
2004260
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: Aluminium EN AW-6063 T66
CarrierRail; 2.97 m
Product number:
2001014
The K2 CarrierRail is used as a base rail for façade installation on sandwich wall elements. Made from EN AW 6063 T66 aluminium for maximum durability and reliability
FacadeRail; 4.00 m
Product number:
2004310
The K2 FacadeRail is securely fixed to a solid masonry or concrete facade in conjunction with the special Facade Console. Manufactured from EN AW 6063 T66 aluminium for maximum durability and reliability. Length: 4.00 metres.
MiniRail 60 Set
Product number:
2004596
Short rail for mounting solar modules on trapezoidal sheet metal roofs. Higher rail for the installation of optimisers and higher rear ventilation. Includes thread-forming screws with 6x25 mm sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, stainless steel A2
MiniRail MK2 Set
Product number:
2004211
Short rail for mounting solar modules on trapezoidal sheet metal roofs, incl. 4 thread-forming tapping screw with sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, Stainless Steel A2
MiniRail Set with screw
Product number:
2002341
Short rail for mounting solar modules on trapezoidal sheet metal roofs, incl. 4 thread-forming tapping screw with sealing washer. Material: Aluminium EN AW-6063 T66, EPDM, Stainless Steel A2
SingleRail 36; 4.80 m Black
Product number:
2004396
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: aluminium EN AW-6063 T66, black anodized. Eloxal may show slight scratches as a result of packaging and transport.
SingleRail 50; 4.80 m
Product number:
2004414
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.80 m. Material: Aluminium EN AW-6063 T66
CrossRail 36; 4.80 m
Product number:
2004412
Mounting rail with side-connection and static confirmation. Length: 4.80 m. Material: aluminium EN AW-6063 T66

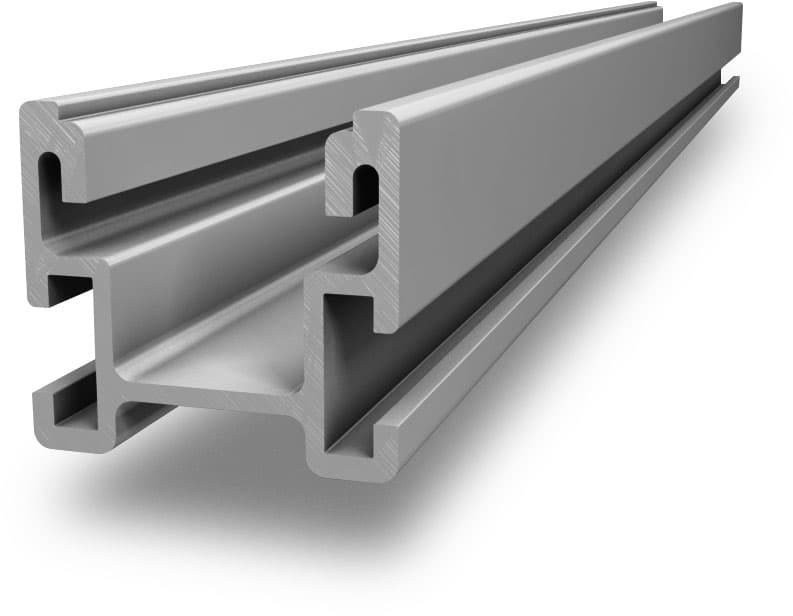

CrossRail 36, 4.40 m
Product number:
2003255
Mounting rail with side-connection and static confirmation. Length: 4.40 m. Material: aluminium EN AW-6063 T66

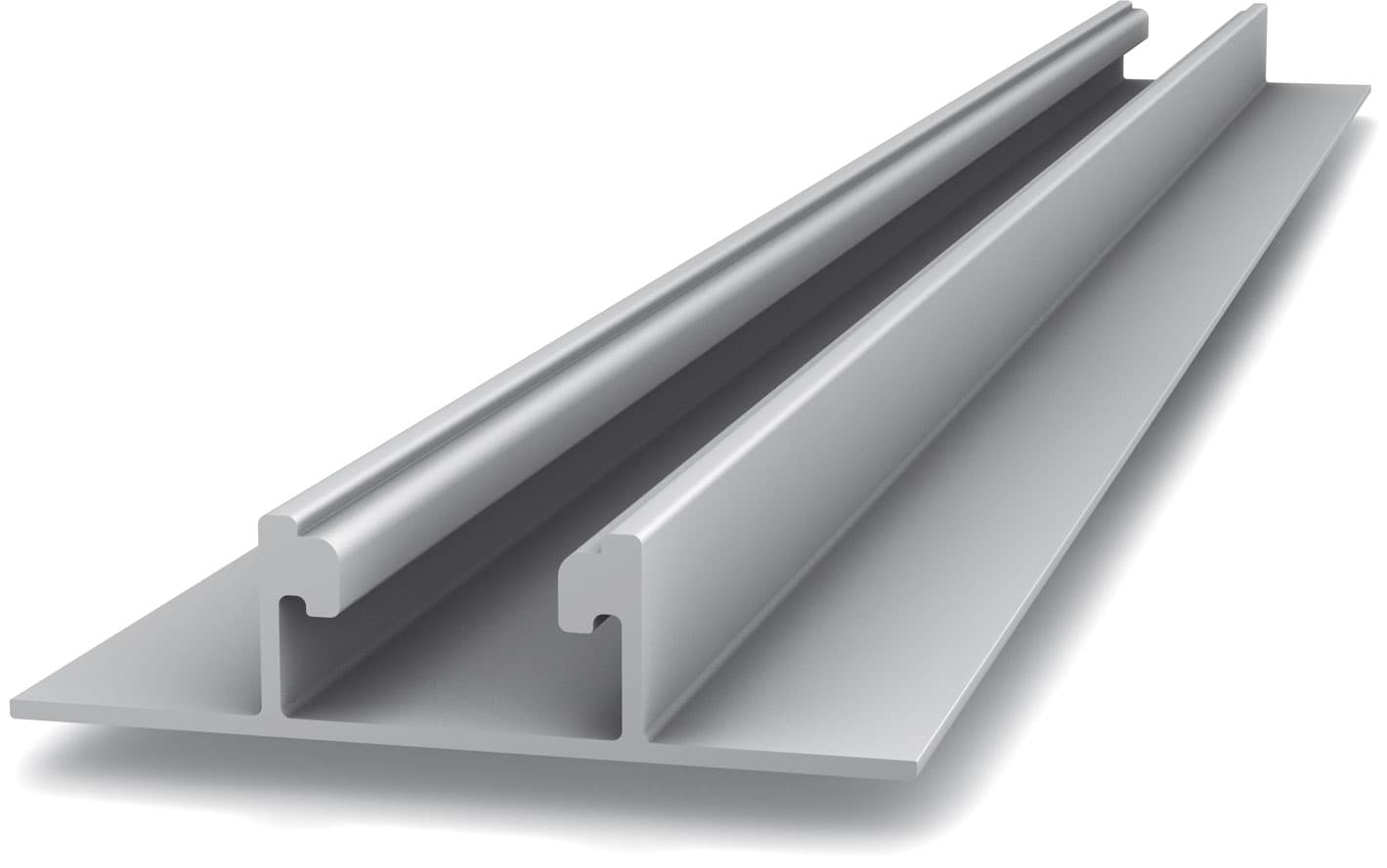

FlatRail 22; 5.50 m
Product number:
2003256
Mounting rail with static confirmation. Can be used variably for different roof connections. Length: 5,50 m. Material: Aluminium EN AW-6063 T66
Rail connector Set SingleRail 36
Product number:
2001976
Rail connector set as connecting element between two K2 SingleRails 36. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
Rail connector Set BasicRail
Product number:
1003571
Rail connector set for connecting 2 K2 BasicRails. With 3 drill holes for flexible mounting. Inklusive screws (bit T25). Material: Aluminum, Stainless steel A2
Rail connector Set SingleRail 63
Product number:
2001627
Rail connector set as connecting element between two K2 SingleRails 63. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
BasicLock 22 Set
Product number:
1003558
Mounting security for fusing the K2 BasicRail 22 in case of thermal expansion. Including screws and nuts. Material: Aluminum, stainless steel and PA.
Rail connector Set SingleRail 50
Product number:
2002404
Rail connector set as connecting element between two K2 SingleRails 50. screw included. Material: Aluminium EN AW-6063 T66, stainless steel A2
MiniFive MK2 Stop Set
Product number:
2003379
Set of two hexagon socket screws and two MK2 that fix MiniFive to MiniRail. Material: Stainless steel
BlackCover SingleRail 36
Product number:
2003523
K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.
T-Bolt 20/12
Product number:
2002035
Hammerhead screw for insertion into the side chamber of the K2 SingleRail 36 & 50 rails. It can be inserted at any position and can be moved later if necessary. thread: M8x30 mm; head shape: 20/12; head dimensions: 15.5x8.5x4 mm. Material: stainless steel A2 1.4301
Hexagon Flange nut with serration M8
Product number:
1000043
Hexagon flange nuts with serration M8; DIN 6923 A2 M8. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 13
PVX Minimount rail
Product number:
2003387
The UV-resistant PVX Minimount provides a multifunctional cable management system for mesh tray suitable for K2 Systems mounting rails. Compatible mesh tray: 2004054. Material: PE and ASA
EndCap for SingleRail 36
Product number:
1004767
K2 End Cap for K2 SingleRail 36, SingleRail 36 ight and CrossRail 36. Material: glass fibre reinforced polyamid
AddOn 30
Product number:
2001707
The K2 AddOn 30 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 30-34 mm. Fits most K2 SolidRails, CrossRails, SingleRails and
BasicRail
. Not suitable for CrossRail 62 & 90 and SolidRail Alpin & XL. Material: glass fibre reinforced polyamide
AddOn 22/25
Product number:
1005530
The K2 AddOn 22 mounting adapter enables grid or shared-rail installation without additional rails or clamps for module frame heights of 35-50 mm. Fits all K2 SolidRails, CrossRails, SingleRails and BasicRails. Material: glass fibre reinforced polyamide
RailUp Set
Product number:
2003191
Optional addition for the K2
BasicRail and MultiRail system. The RailUp Set allows the modules to be raised using a minimum of material and to optimise module ventilation on the trapezoidal sheet metal roofs. Furthermore the installation of power optimizers and microinverters becomes easier. The set includes all screws and nuts necessary for the installation. The RailUp set is mounted under each module clamp and is compatible with the universal K2 clamps OneMid/OneEnd as well as the K2 standard module clamps. It is not compatible with the K2 AddOn. Material: aluminium, stainless steel and TPC
TerraGrif QL
Product number:
2004231
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
TerraGrif K2SZ
Product number:
2001881
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Incompatible systems:
BasicRail
(landscape mounting). Material: stainless steel 301 TA
TerraGrif PL
Product number:
2004102
The TerraGrif PL can be used for potential equalisation of the K2 MiniFive components in the K2 MiniRail MK2 system. It can also be used for potential equalisation in the InsertionRail 2.0. Material: Stainless steel (301 TA)
Climber 36/50 Solo long-hole
Product number:
2003140
To fasten the mounting rail K2 SingleRail 36&50 and the K2 CrossRail 36&48 to the roof hook. Material: Aluminium EN AW 6063-T66

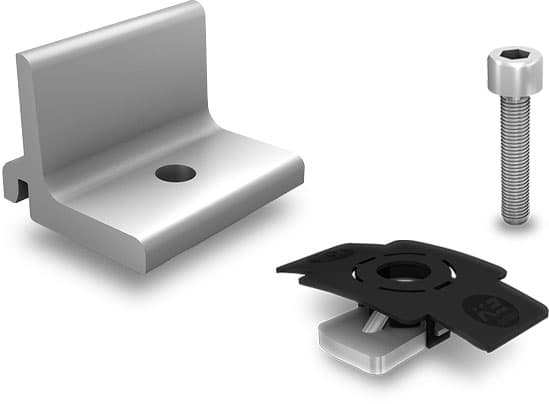

CrossRail Climber Set 62/90
Product number:
1006042
A cross connector for the K2 CrossRail 62 & 90. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
SingleRail 63; 6.10 m
Product number:
2001851
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. For high span width. Length 6.10 m. Material: aluminium EN AW-6063 T66
SingleRail 63 Climber Set
Product number:
2001626
A cross connector for the K2 SingleRail 63. Nuts and bolts included. Material: aluminium EN AW-6063 T66, stainless steel A2
BasicRail 22
Product number:
2003240
Alternative item: 2004278Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System. Length: 4.40 m. Material: Aluminium EN AW-6063 T66
SingleRail 36
Product number:
2003222
Alternative item: 2004393
Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4,40 m. Material: Aluminium EN AW-6063 T66
SingleRail 36 light; 5.95 m
Product number:
2004256
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5,95 m. Material: Aluminium EN AW-6063 T66
SingleRail 36 light; 4.40 m
Product number:
2003258
Alternative item: 2004413Mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4,40 m. Material: Aluminium EN AW-6063 T66
