TerraGrif QL
Product number:
2004231
GTIN:
4251786206575
K2 TiltUp Vento System
Product information
Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames. Compatible moduleclamp: K2 Clamp 25-40.
| Mounting Rails: | Accessories |
|---|---|
| Mounting systems: | K2 BasicRail System, K2 MiniRail MK2 System, K2 MultiAngle System, K2 MultiRail System, K2 SingleRail System, K2 SolidRail System, K2 TiltUp Vento System |
| Scope of application: | Flat roof, Pitched Roof |
| Component type: | Lightning protection / Grounding |
| Material: | Stainless Steel 301 TA |
| Sales unit: | 100 Piece |
| Packaging type: |
100 / Bag 2.500 / box 60.000 / Pallet |
| Weight: | 0.004 Kg |
| Customs tariff number: | 73182900 |
Downloads
| Technical Datasheet: | Login to see details |
|---|---|
| Assembly instructions - SpliceFoot: | DE EN |
| Assembly instructions - SingleHook flat tile: | DE EN |
| Assembly instructions - MiniRail MK2: | BG CS DE EN ES FR HU IT LV PL RO RU |
| Recommendation - Lightning protection and equipotential bonding: | DE EN |
| Equipotential bonding / TerraGrif : | DE EN FR PT |
Compatible Items
K2 TiltUp Vento System
Skip product gallery
K2 Clamp MC 25-40 mm
Product number:
2004146
Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System.

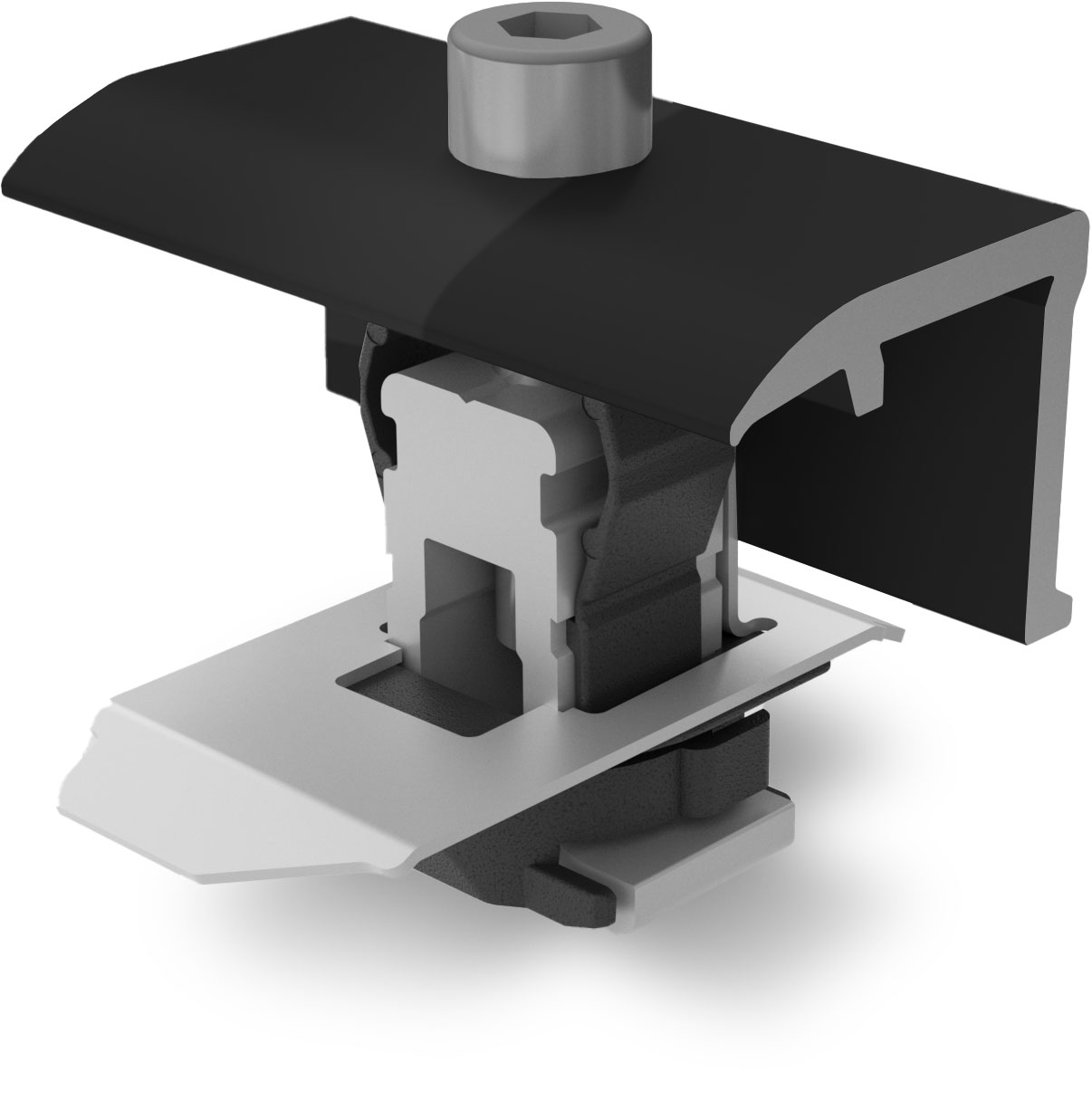

K2 Clamp EC 25-40, black anodised
Product number:
2004545
Black anodized Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic. Anodising may show slight signs of scratching due to packaging and transport.

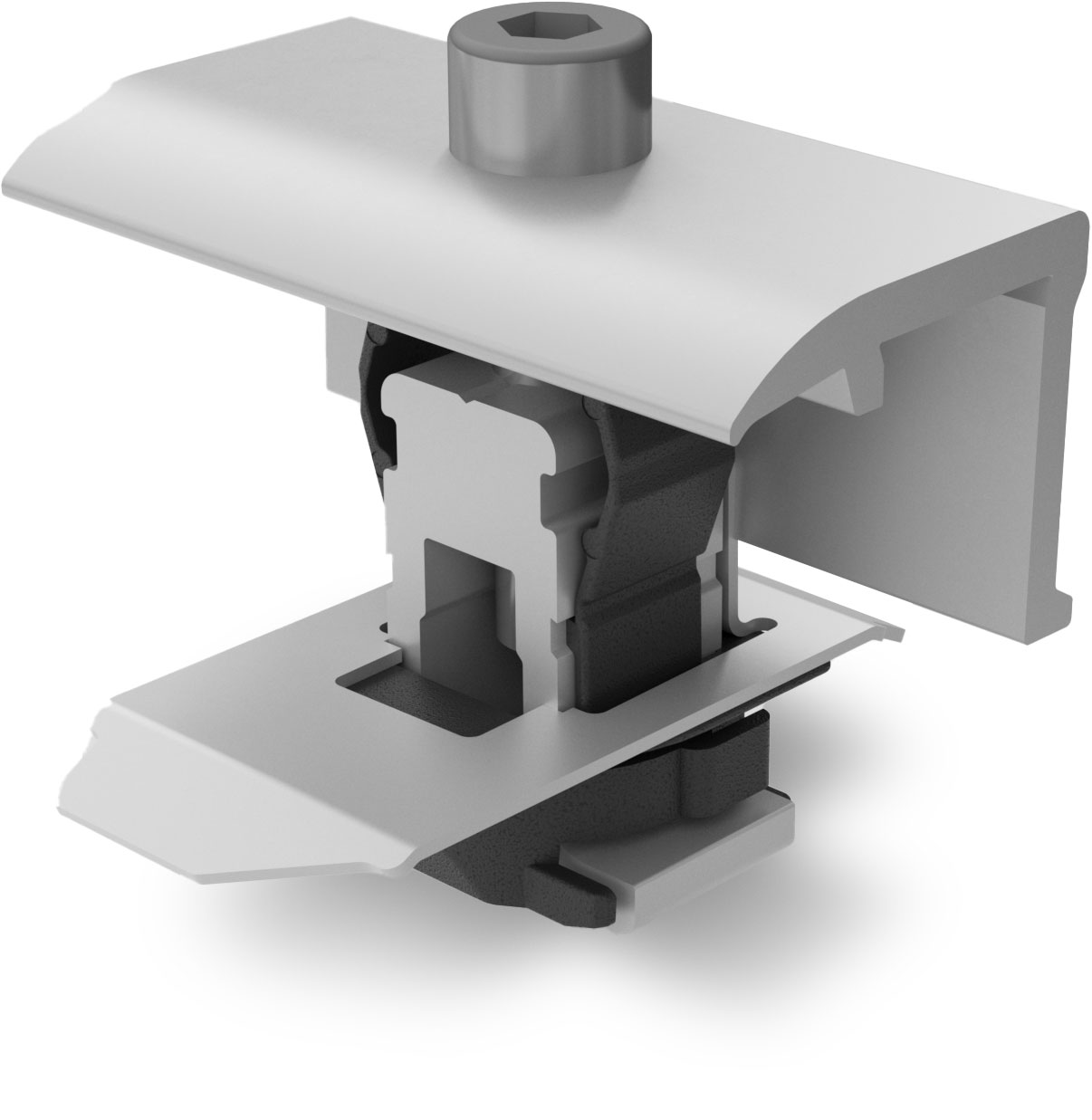

K2 Clamp EC 25-40
Product number:
2004543
Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, Stainless steel, Thermoplastic.

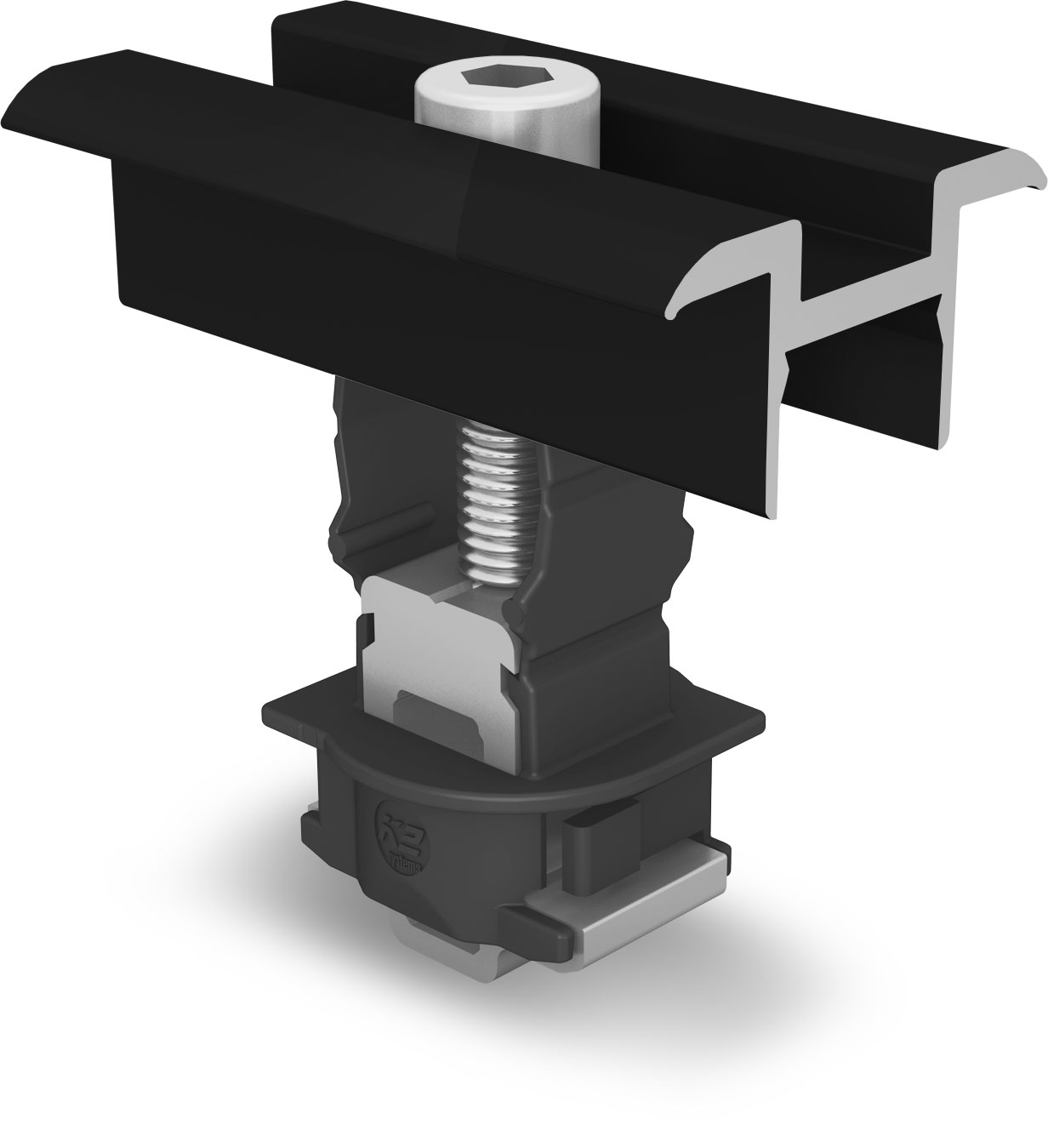

K2 Clamp MC 25-40, Black anodised
Product number:
2004540
Black anodized Universal module middle clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66, thermoplastic, stainless steel A2. Anodising may show slight signs of scratching due to packaging and transport.
