K2 RibClamp KL System
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 5.95 m. Material: aluminium EN AW-6063 T66
RibClamp KL
Product number:
2002857
Sheet metal clamp set for sheet metal roofing type: KLIP-LOK CLASSIC 700, KLIP-LOK 406 of the manufacturer Lysaght and KLIP-TITE 700. With direct connection possibility for K2 DomeClamp module clamps, alternatively with T-bolt screw to K2 SolidRail. Incl. M8x20 bolt with serrated under head according DIN 912/ EN ISO 4762 and square nut according DIN 557 M8 A2-70 Gleitmo coated. Material: Aluminum (EN AW 6063 T66)
Rail connector Set SolidRail Ultra Light and Light
Product number:
1004107
For quick and easy connection of two K2 SolidRail XS, UltraLight or Light. Set including screws and nuts.
Universal End Clamp OneEnd
Product number:
2002514
Universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm
Product number:
2003071
Universal module middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM
Universal Middle Clamp OneMid 30-42 mm, black anodized
Product number:
2003072
Black anodized universal middle clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Anodized aluminium EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
Universal End Clamp OneEnd, black anodized
Product number:
2002589
Black anodized universal module end clamp with simple "click function" for fixing solar modules with frame heights of 30-42 mm. Not compatible with the K2 Dome 6 System and K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. Material: Aluminium EN AW 6063 T66 / A2 / POM. Eloxal may show slight scratches as a result of packaging and transport.
DomeClamp End Clamp 30-50 mm
Product number:
2002559
Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp Middle Clamp 30-50 mm
Product number:
2002558
Universal middle clamp set for fastening solar modules on the K2 Dome 6 System. Material: Aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301)
DomeClamp End Clamp 30-50 mm, black anodized
Product number:
2002610
Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Material: Anodized aluminium EN AW 6063 T66; EN AW 6082 T6, Stainless steel (1.4301). Eloxal may show slight scratches as a result of packaging and transport.
Hexagon Flange nut with serration M10
Product number:
1000042
Hexagon flange nuts with serration M10; DIN 6923 A2 M 10. The Serration prevents accidental release. Material: A2 stainless steel; Drive size:A/F 15.
Alternative item: 2004394
Mounting rail with static confirmation in K2 Base. Can be used variably for different roof connections. Length: 4.40 m. Material: aluminium EN AW-6063 T66
K2 RibClamp KL System
A pv mounting solution for Klip-Lok® and Klip-Tite® standing seams: Railless landscape assembly with only 3 components is done with our well-known universal MiniClamp (30 - 50 mm).
Portrait assembly is possible with and additional mounting rail and OneMide/OneEnd universal clamps (32 - 42 mm).
- Ultra-quick assembly solution for roofing types: Klip-Lok® and Klip-Tite®
- Rail-less landscape assembly with a module supporting clamp
- Comfortable portrait assembly with SolidRail
- One clamp fits all: Universal module clamps for landscape and portrait assemblies
K2 RibClamp KL System
K2 RibClamp KL System
Technical data
|
RibClamp KL System |
|
|---|---|
| Compatibility |
|
| Module orientation | Landscape and portrait |
| Material | Aluminium (EN AW-6063 T66) and stainless steel (1.4301) A2-70 |
| Neigungswinkel | 15°, 20°, 25° |
| Weight | 146g |
| Portrait assembly with | SolidRail UltraLight |

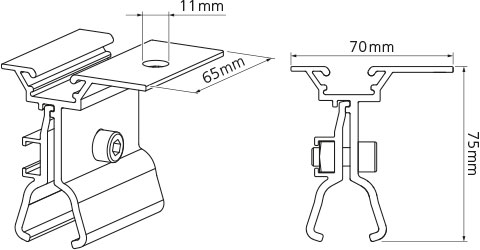

Dimensioning scheme RibClamp KL
Width, height, depth and connection SolidRail
K2 RibClamp KL System
